Description
Providing reliable and efficient heating solutions for biomass boilers, ensuring optimal performance and longevity.
Biomass Users – Efficient Heating with Advanced Air Heater
Ceramic Heating Element
Swedish heating wire with ceramic material resists up to 1650°C, ensuring durability and safety.
High-Quality Motor
Max. 12500 rpm motor, with brushless options available, providing powerful and reliable performance.
Temperature Regulation
Stepless adjustment for precise temperature control, preventing overheating and ensuring efficient operation.
PA66 Plastic Material
Handle made of PA66 plastic resistant to 280°C, ensuring safety and longevity.
Japanese Bearing & Gasket
High-temperature resistant bearing and gasket imported from Japan, ensuring heavy-duty performance.
Features

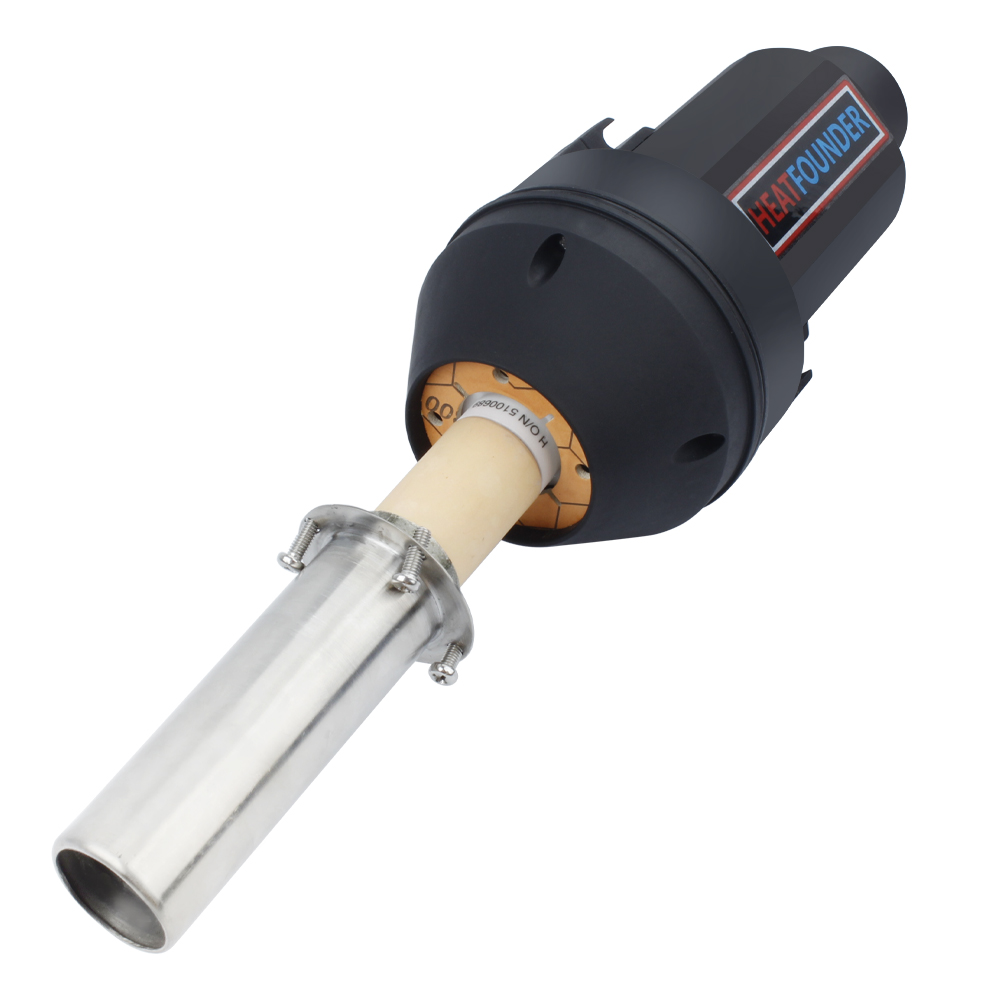

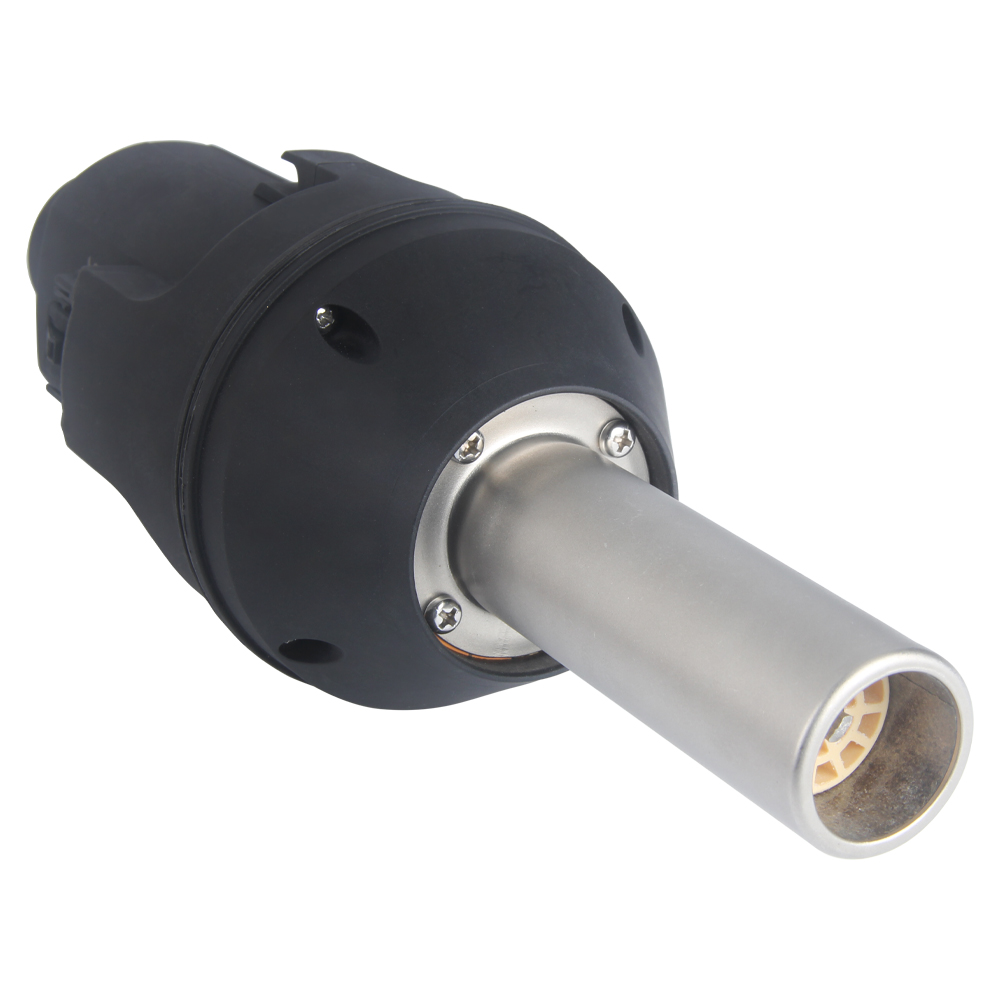

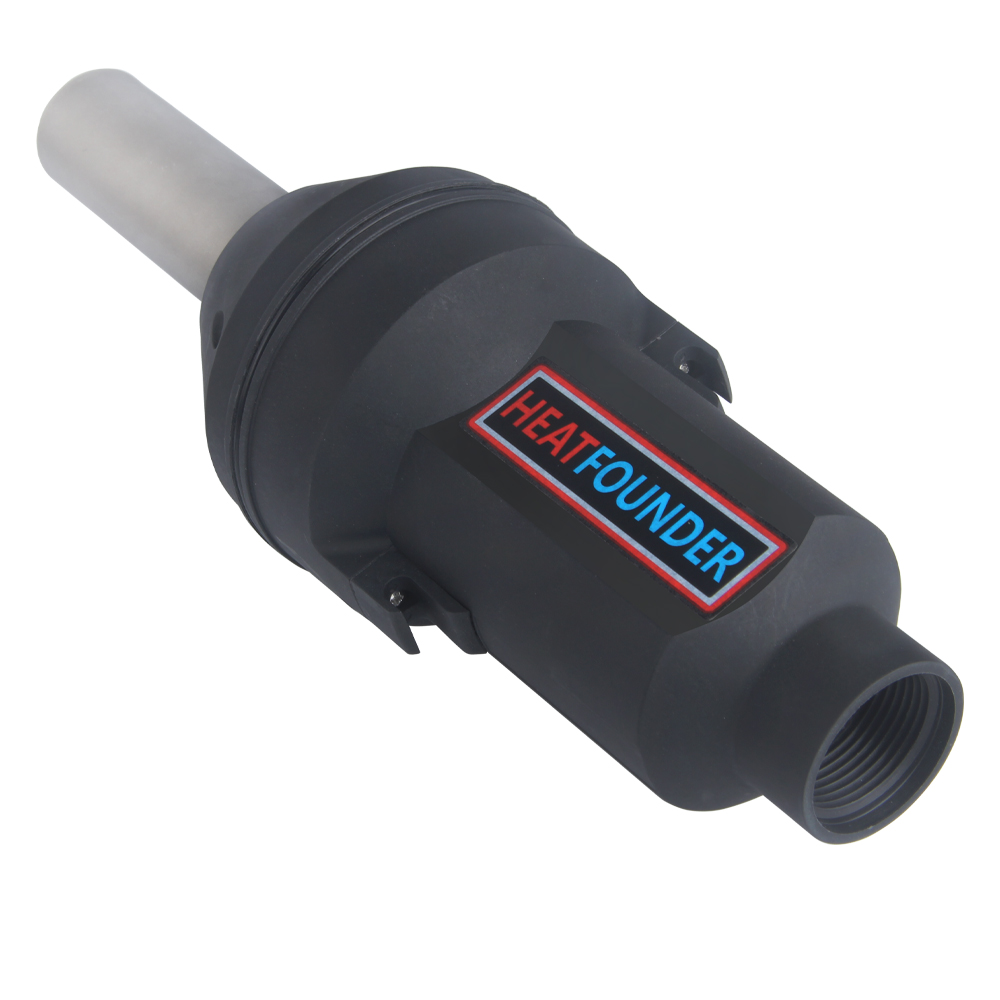

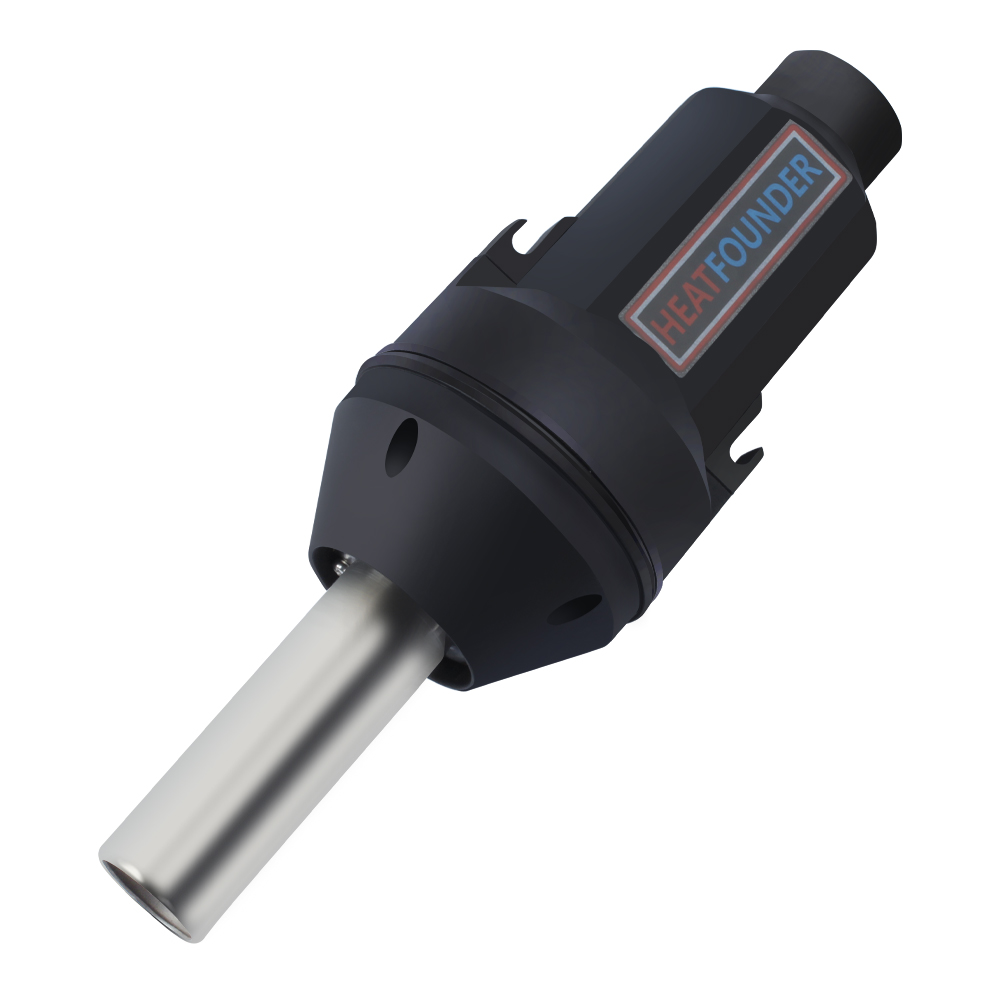

The ZX-B2 Air Heater features a ceramic heating element with Swedish heating wire, capable of resisting up to 1650°C. It is equipped with a high-quality motor, reaching a maximum of 12500 rpm, with brushless options available. The air heater unit includes stepless temperature regulation for precise control. The handle is made of PA66 plastic, resistant to 280°C, ensuring safety during operation. Additionally, it incorporates a high-temperature resistant bearing and gasket imported from Japan, providing heavy-duty performance.
Benefits
The ZX-B2 Air Heater offers efficient and reliable heating for pellet and wood chip boilers, ensuring optimal performance and longevity. Its advanced temperature regulation prevents overheating, enhancing safety and efficiency. The durable ceramic heating element and high-quality motor provide consistent heating, reducing maintenance costs. The PA66 plastic handle and Japanese bearing and gasket ensure long-lasting performance, even in harsh environments.
Use Cases

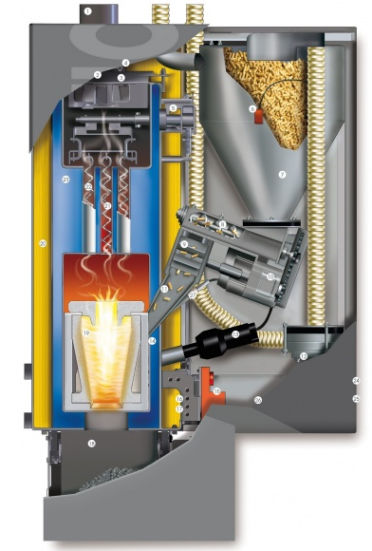

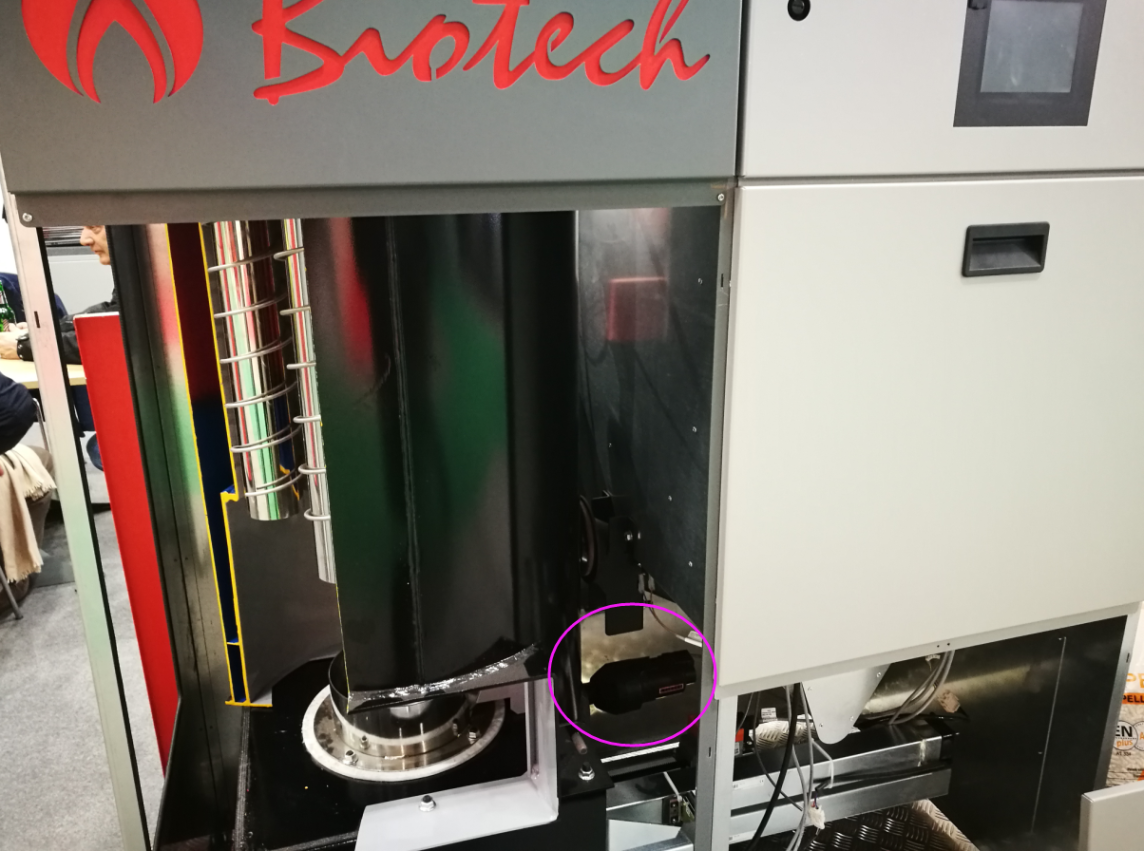

The ZX-B2 Air Heater is specifically designed for installation in pellet and wood chip boilers, commonly used in biomass heating systems. It is ideal for residential, commercial, and industrial applications where efficient and reliable heating is required. The air heater’s compatibility with various boiler models and its easy installation make it a popular choice among biomass users.
| Specifications | IGNITION ZX-B2 | |
| Voltage | 230 | V |
| Frequency | 50/60 | HZ |
| Rated Power | 800 1000 1600 | W |
| Min. Airflow | 230 | L/min 20℃ |
| Max. temperature | 600 | ℃ |
| Diameter | φ90 | mm |
| Length | 282 | mm |
| Weight | 1.05 | Kg |
| Mark | CE |

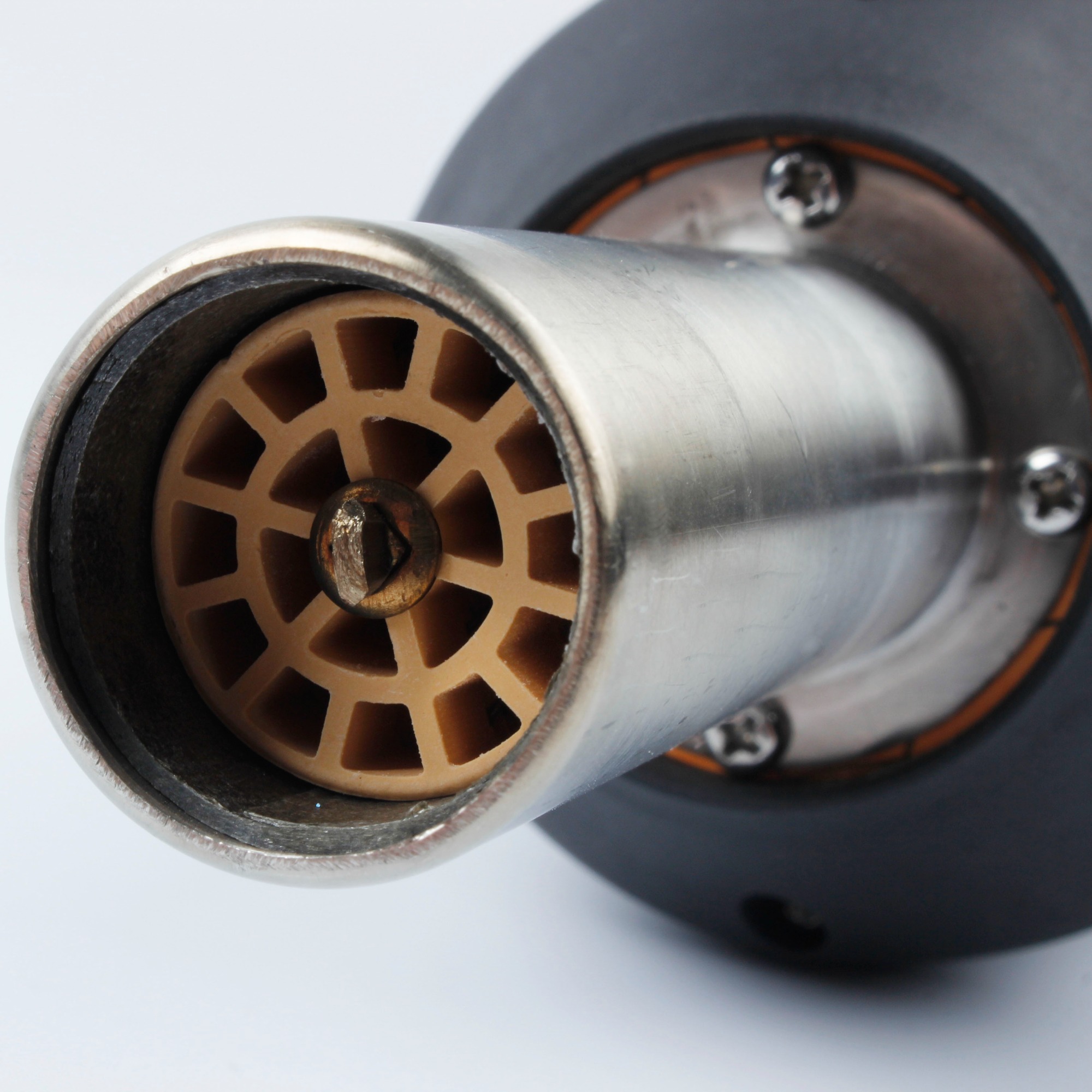

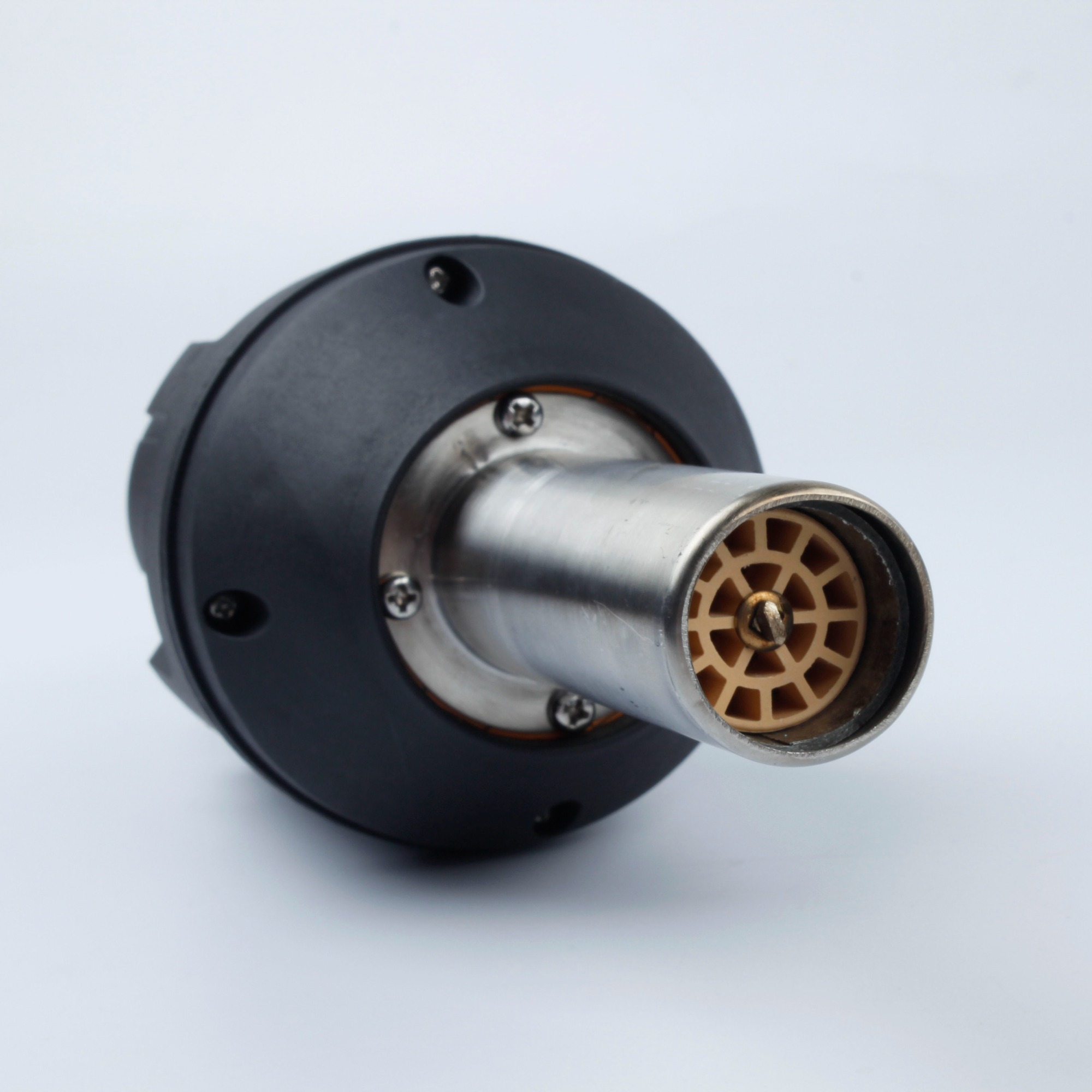

| Ceramic Heating Element | Swedish heating wire|Ceramic material resistance Max. 1650 ºC| Silver plated red copper pins| Strong wiring, no overheating |
| Motor | High-quality motor, Max. 12500 rpm. Brushless types are available for 100 pcs. |
| Temperature Regulation | Stepless adjustment and no misplacement when operating. |
| Plastic Material | PA66 for the handle which can be resistant to 280 ºC |
| Gasket | High-temperature resistant bearing imported from Japan, heavy-duty |

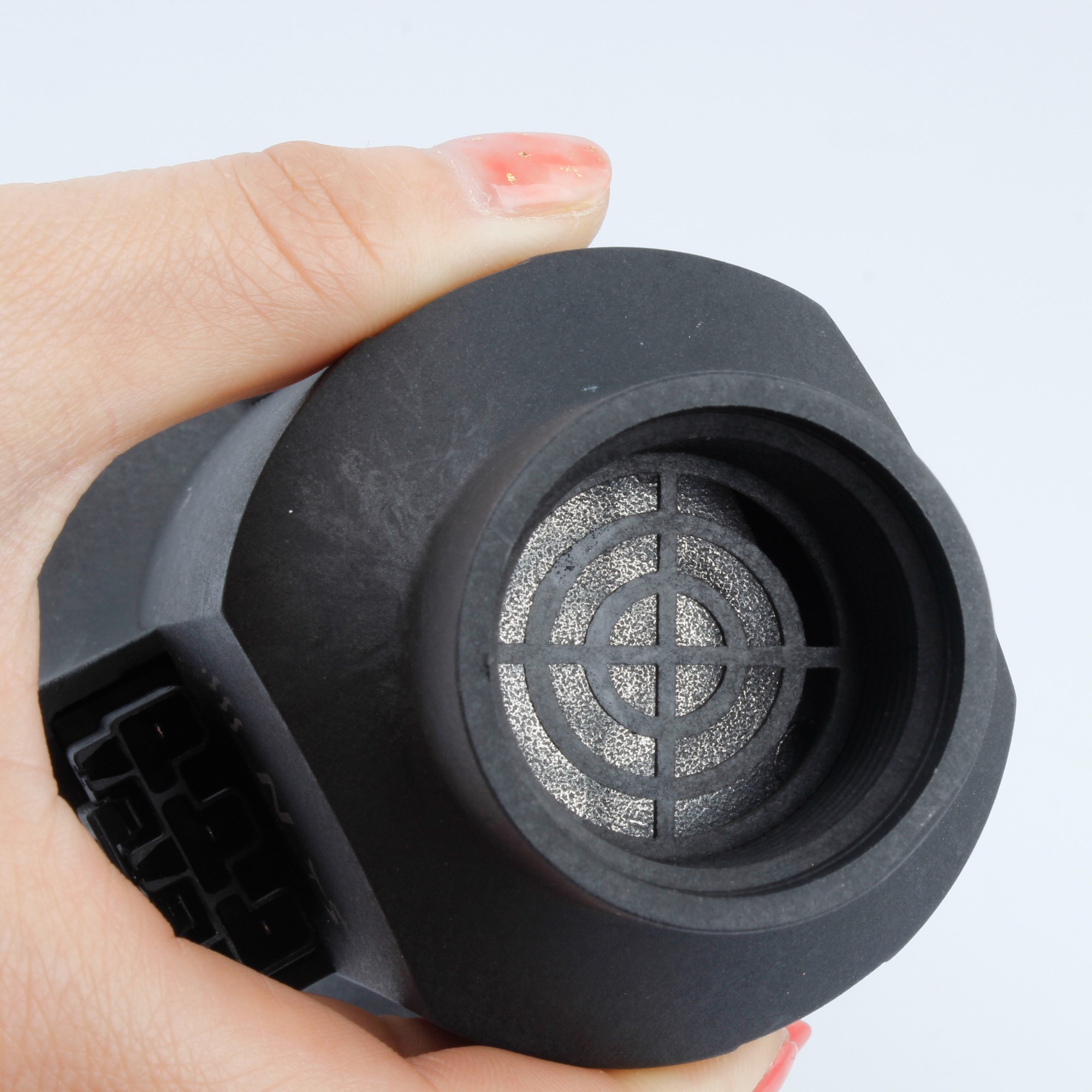

| Air Filter | Uniform porosity, good heat dissipation performance |

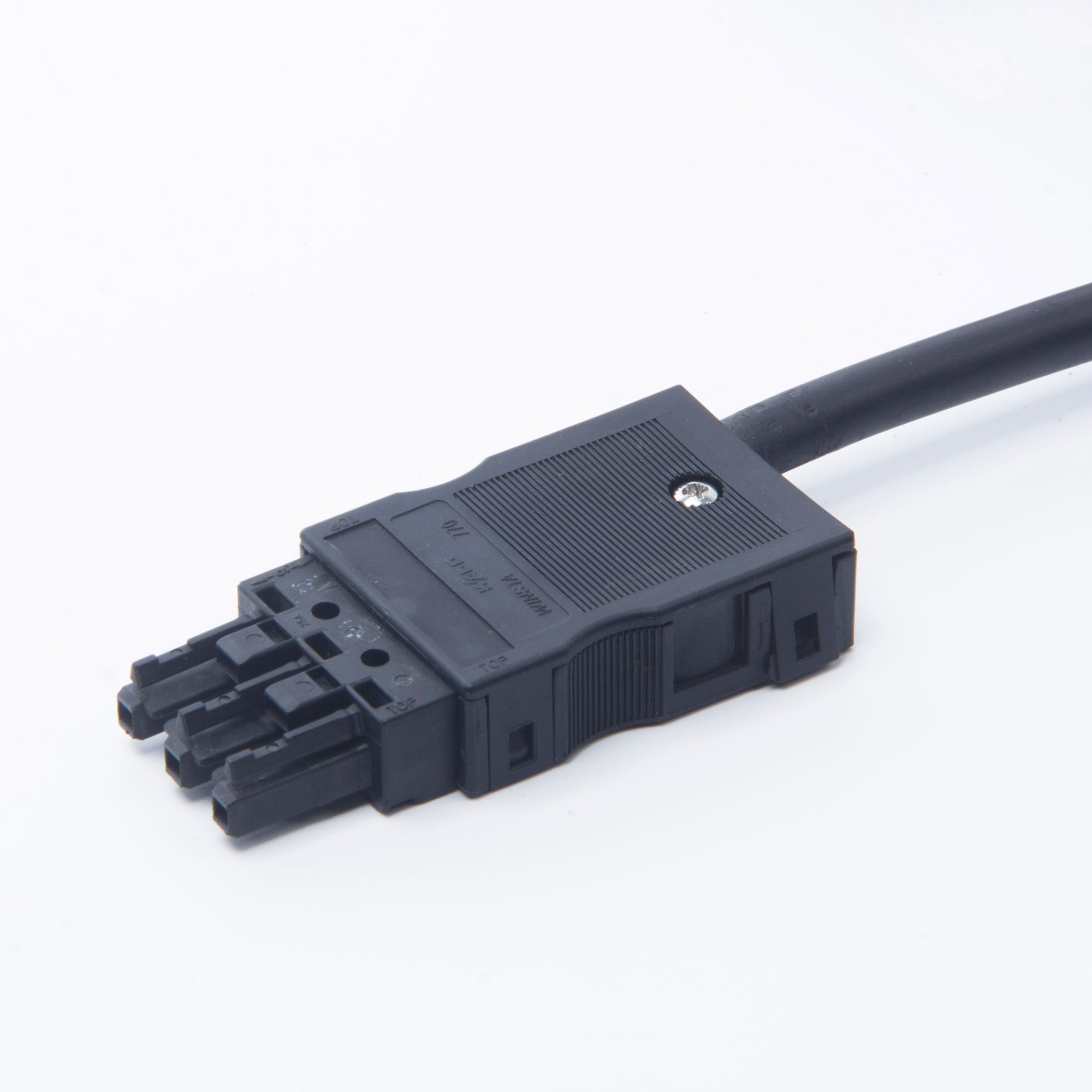

| Cable(cord) | 3 meters 3*1.0mm² H07RN-F cable, flexible |
| Temperature Control | We use a photocell to control the temperature inside the blower. |
Why Choose ZX-B2 Air Heater?
The ZX-B2 Air Heater is designed specifically for biomass heating systems, offering efficient and reliable heating for pellet and wood chip boilers. Its advanced features, such as ceramic heating element and high-quality motor, ensure optimal performance and longevity.
How Does It Benefit Users?
The ZX-B2 Air Heater provides consistent heating, reducing maintenance costs and enhancing safety. Its precise temperature regulation prevents overheating, ensuring efficient operation. The durable materials used in its construction ensure long-lasting performance, even in harsh environments.
Where Can It Be Used?
The ZX-B2 Air Heater is ideal for residential, commercial, and industrial applications where efficient and reliable heating is required. It is compatible with various boiler models, making it a versatile choice for biomass users.
