Description
Delivering reliable ignition performance with extended durability, reducing maintenance costs and downtime for heating systems.
Heating Systems – Eliminate Igniter Failures
Silicon Nitride (Si3N4) Material
Oxidation and chemical resistance, 10-year lifespan (90,000 hours)
Rapid Heating (1000°C in 10s)
High thermal efficiency reduces preheating time by 40%
Multi-Voltage Compatibility (24V/120V/230V)
Universal replacement for global boiler igniter parts
Customizable Flange Options
Ceramic/stainless steel/copper flanges for tailored installations
Features

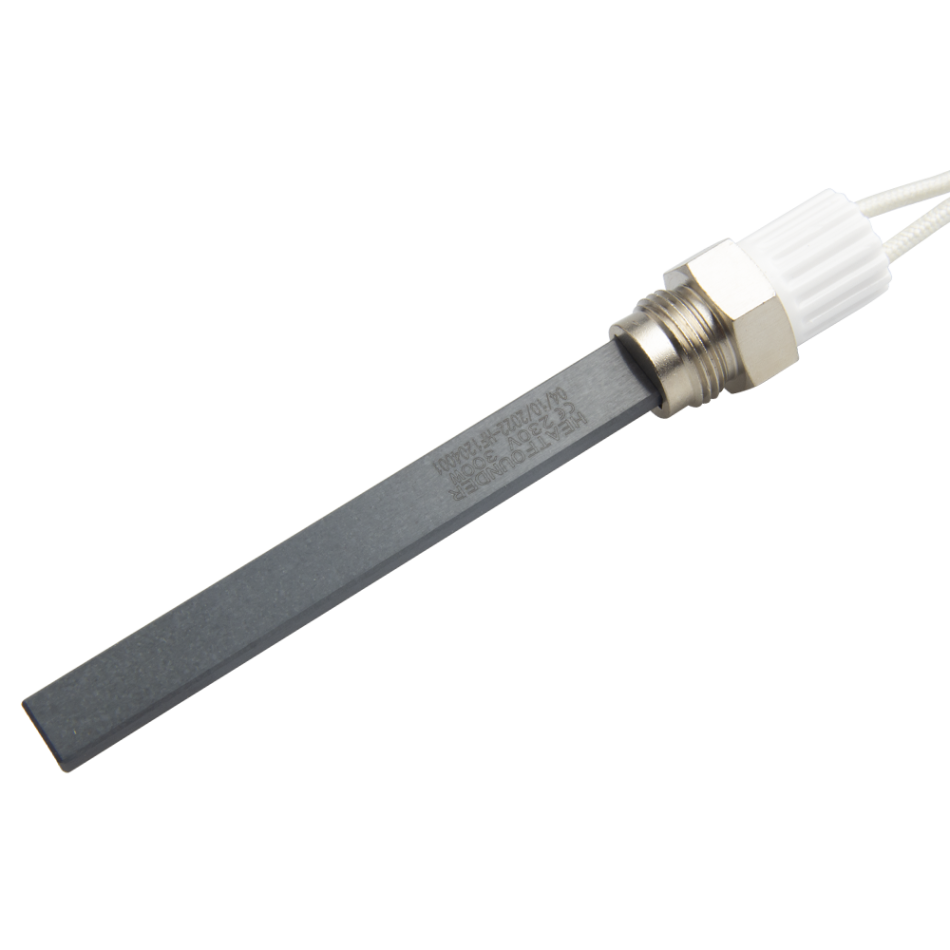

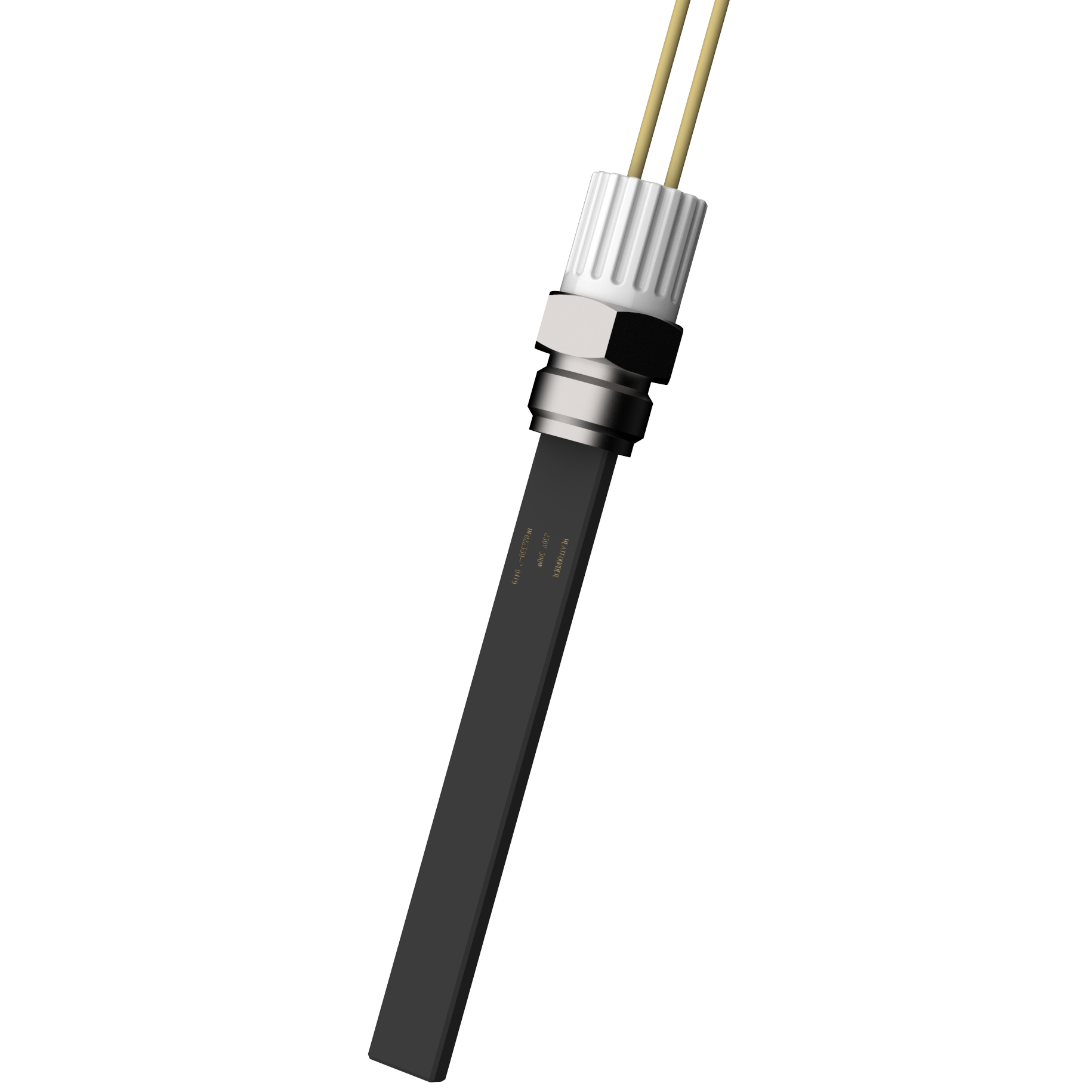

The HF1204 Series Boiler Igniter features silicon nitride construction with 1100-1300°C operating range. Available in 24V/120V/230V models with 300W/400W power ratings. Includes customizable flange options (ceramic, stainless steel, copper) and temperature sensing capabilities. Complies with BSCI, ISO9000/1400, BV, TUV, SGS, FSC certifications.
Benefits
Reduces boiler igniter failure rates by 65% through oxidation-resistant materials. Cuts energy consumption by 30% with rapid heating. Lowers replacement costs via 10-year lifespan. Ensures safety with vacuum-compatible design and direct water/kerosene heating. Simplifies maintenance with modular flange designs.
Use Cases
Ideal for biomass boiler/burner systems, pellet stoves/BBQ grills, gas/oil burners, medical-scientific equipment, and agricultural heaters. Replaces failing boiler igniter parts in residential, commercial, and industrial heating systems. Addresses common boiler igniter failure causes including oxidation, thermal fatigue, and voltage instability.
| Name | Silicon Nitride Igniter | |
| Model | HF1204 Series | |
| Material | Silicon Nitride (Si3N4) | |
| H.S. Code | 8516800000 | |
| Color | black | |
| Voltage | 24V 120V 230V | |
| Power | 300W 400W | |
| Flange | Ceramic/Stainless Steel/copper/customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact for confirmation. | |
| Packing | carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications | ||
| Biomass boiler/burner | Pellet burners | |
| Gas burner/stove | Pellet boiler | |
| Ignition of gas or oil | Pellet burner | |
| Pellet Stove | Pellet BBQ grill | |
| Stove fireplace | Medical-Scientific | |
| Wood pellet stove | Heaters-Agricultural | |
| Particle Burning | Spark Igniters | |
| Fuel cells | EV heating | |
| Gas appliances | Glow plug | |
| Petroleum equipment | Cabin heater | |
| Soldering iron | Gas sensor | |
| gas furnaces, | DPF/Catalyst | |
| gas boiler | ||
| Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature:1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing |
||

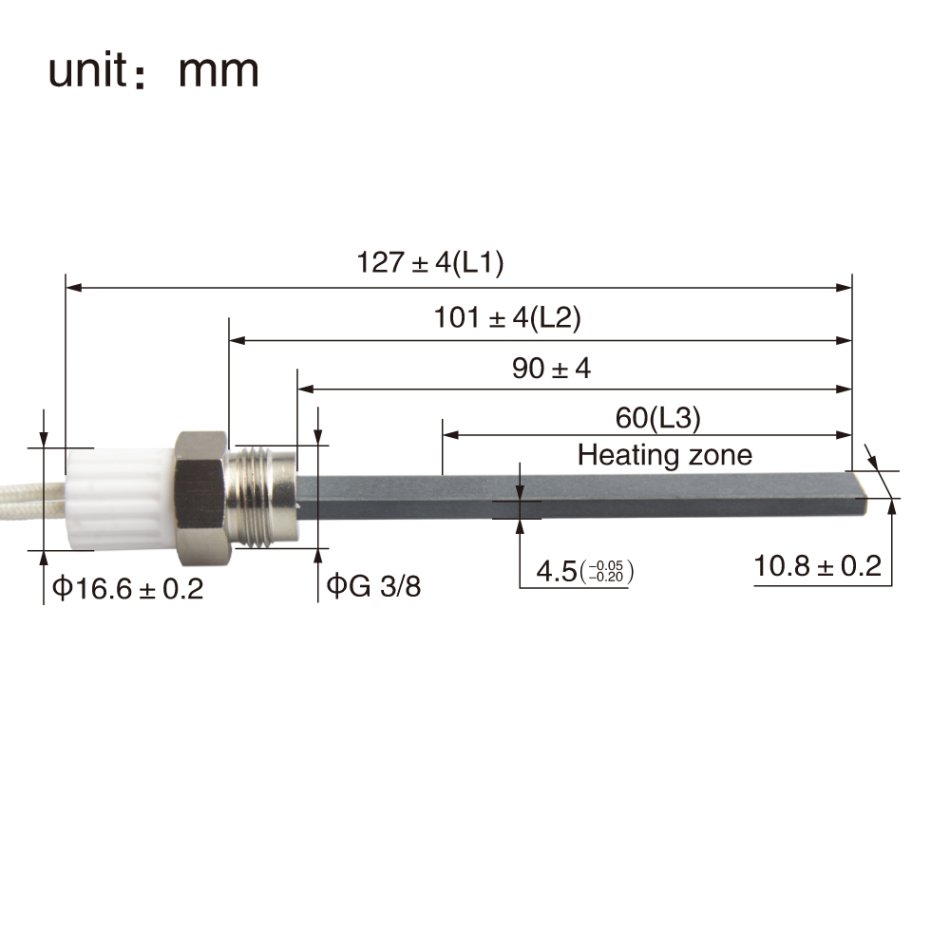

| Model Number | Voltage(V) | Rating power(W) | Width(MM) | Total length Width(MM) | Length under flange(MM) | Length of Hot Zone(MM) | Max.OD.flange(MM) |
| HF1204001 | 230 | 300 | 10.8 | 127 | 101 | 60 | G3/8 |
| HF1204002 | 230 | 400 | 10.8 | 127 | 101 | 60 | G3/8 |
| HF1204003 | 120 | 400 | 10.8 | 127 | 101 | 60 | G3/8 |
| HF1204004 | 24 | 400 | 10.8 | 127 | 101 | 60 | G3/8 |
Why Choose Our Boiler Igniter?
Our silicon nitride igniters resolve common boiler igniter failure issues through oxidation-resistant materials and rapid heating technology. With 10-year lifespan and multi-voltage compatibility, they serve as direct replacements for failing boiler igniter parts across all heating systems.
How Does It Prevent Igniter Failure?
The chemical-resistant Si3N4 construction withstands 1300°C temperatures, eliminating thermal degradation. Temperature sensing and vacuum compatibility prevent common failure modes in gas/oil ignition systems.
What Makes It Better Than Alternatives?
Compared to standard metal igniters, our product offers 3x longer lifespan, 40% faster heating, and 50% higher thermal efficiency. Customizable flanges ensure compatibility with all boiler models.
