Description
Delivering high-performance, reliable ignition solutions for industrial and domestic furnaces, enhancing efficiency and longevity.
Furnace Operators – Ignite Faster with Long-Life HF1211
Silicon Nitride Material
High temperature resistance, ensuring durability and long life.
Rapid Heating

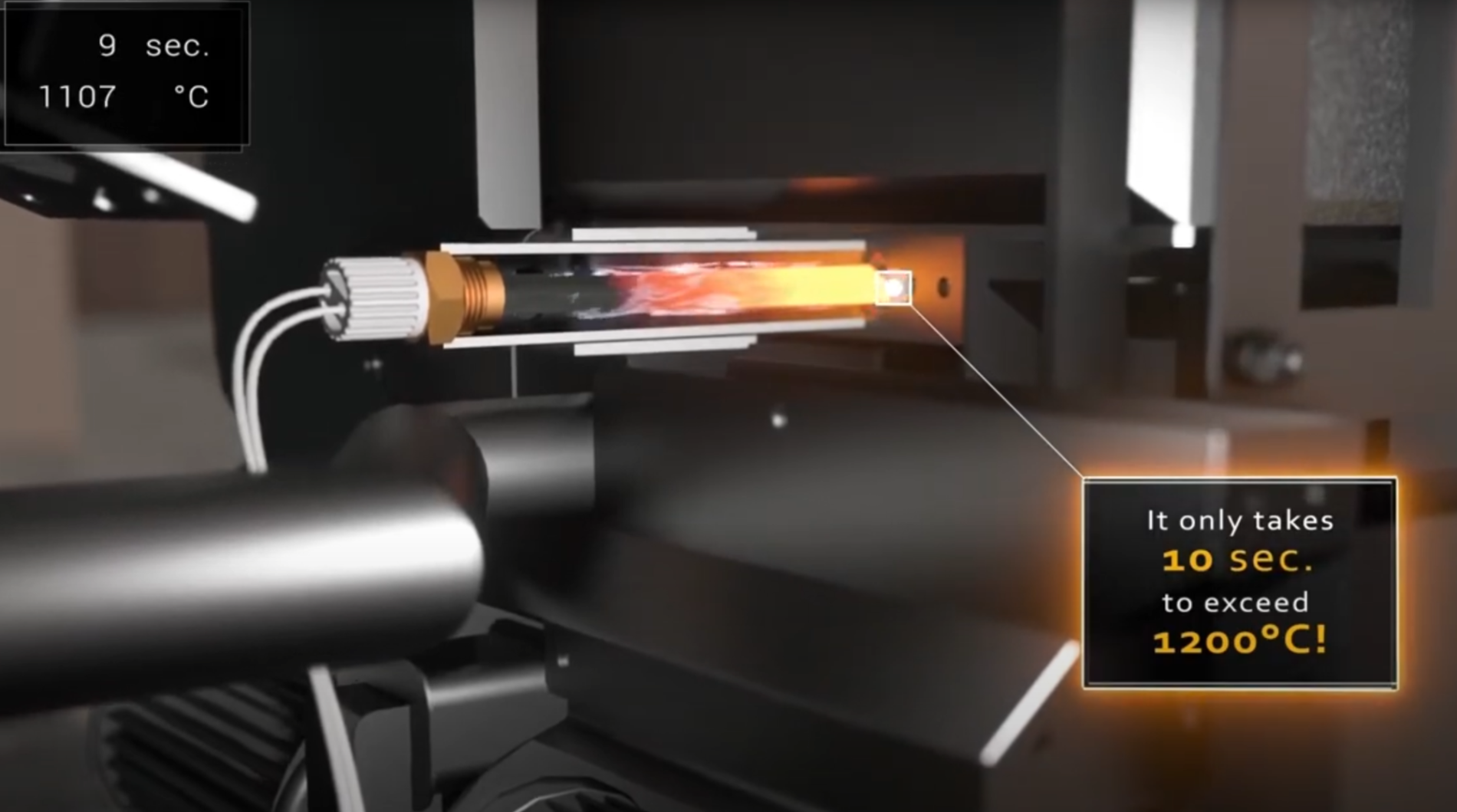

Reaches up to 1000°C in just 10 seconds, boosting efficiency.
Long Working Life
Guaranteed 10 years or 100,000 cycles, reducing replacement costs.
High Insulation
Ensures safe operation and prevents electrical hazards.
Features

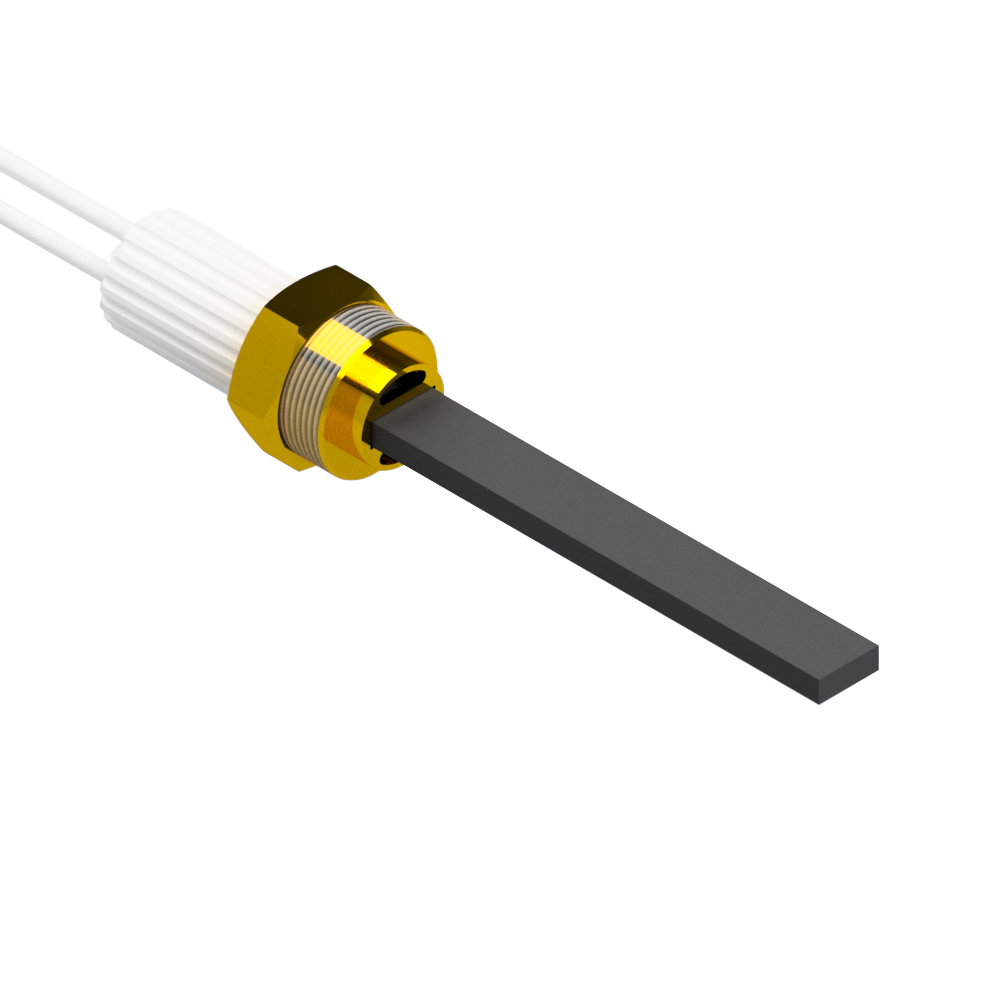

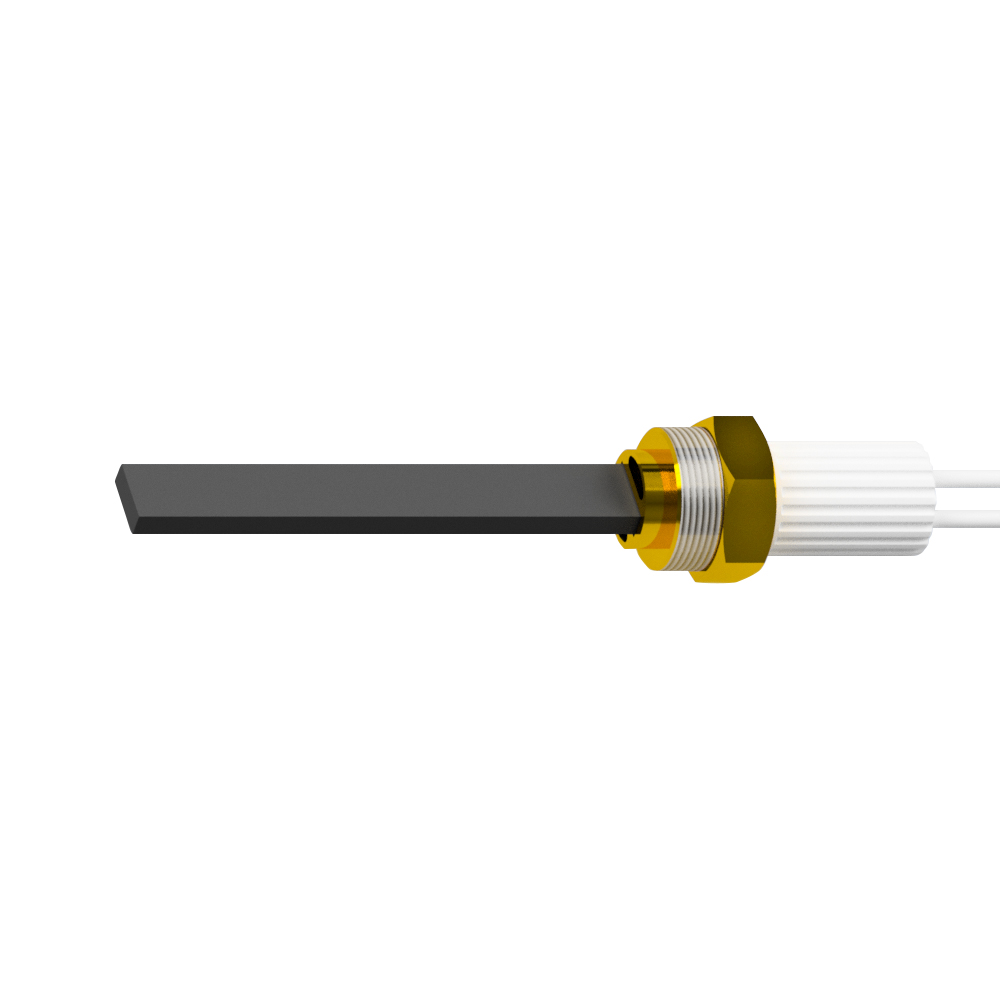

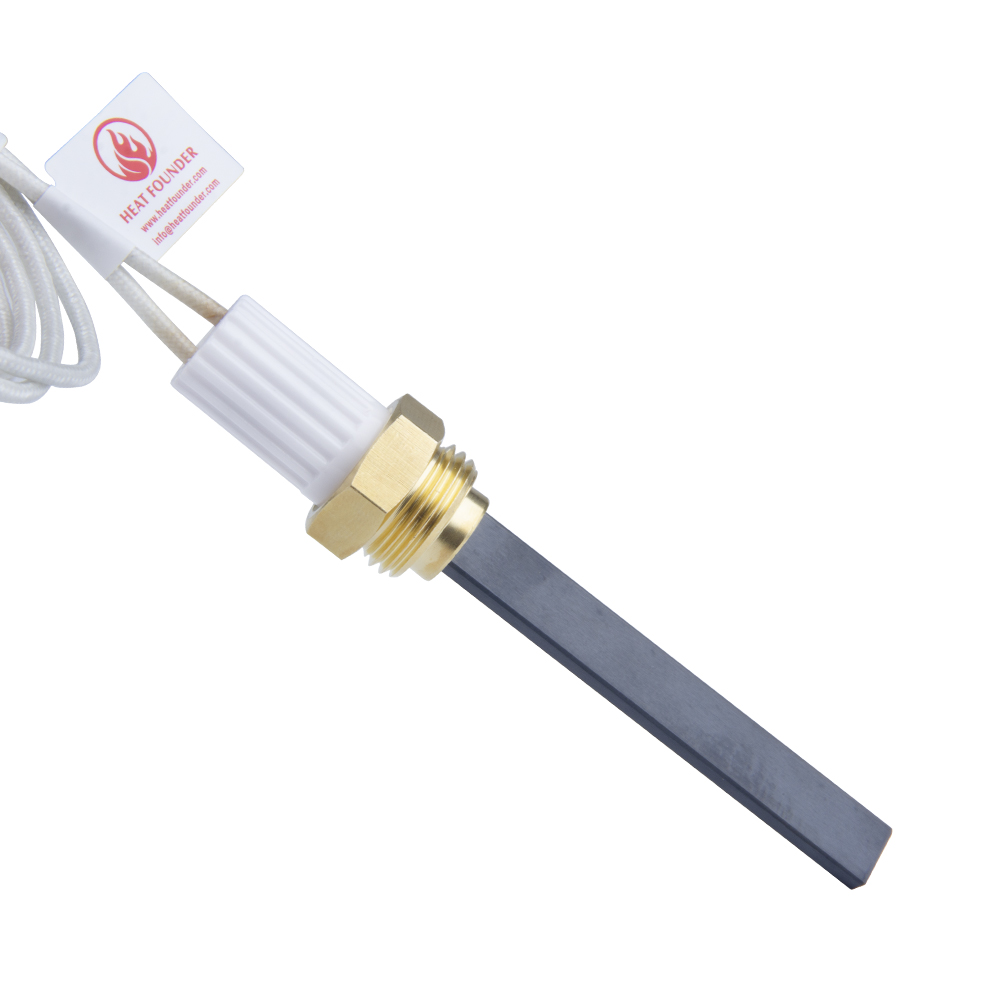

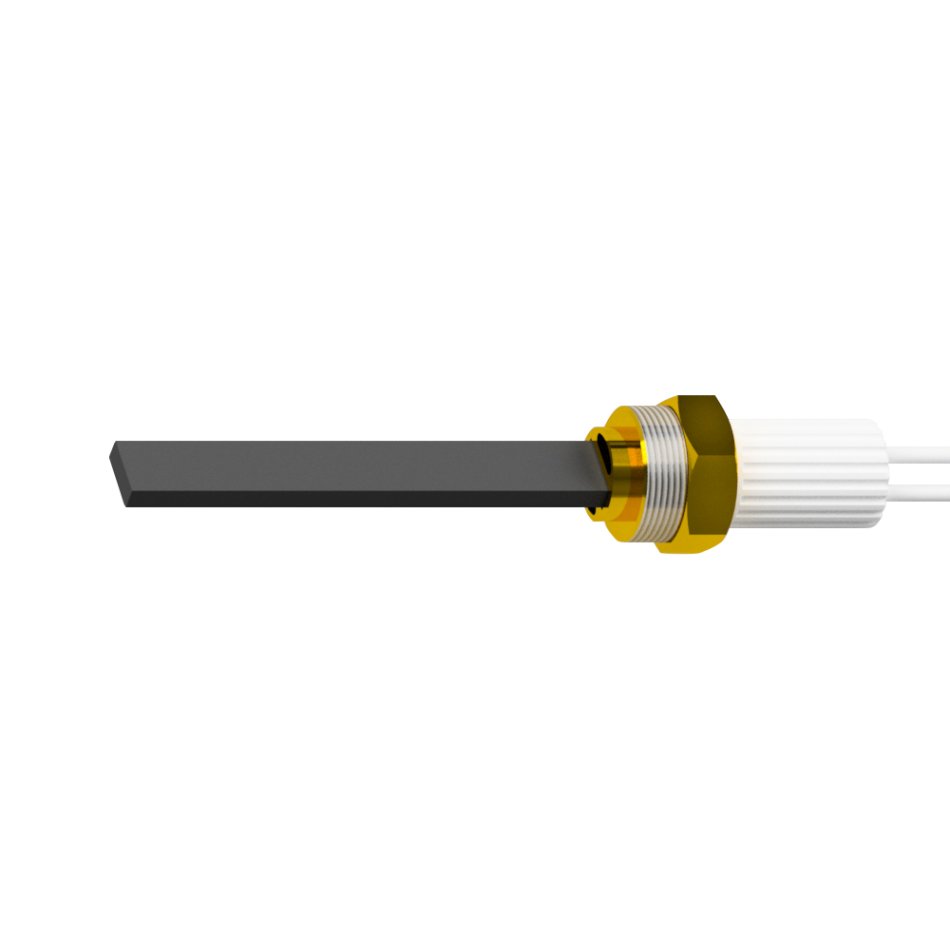

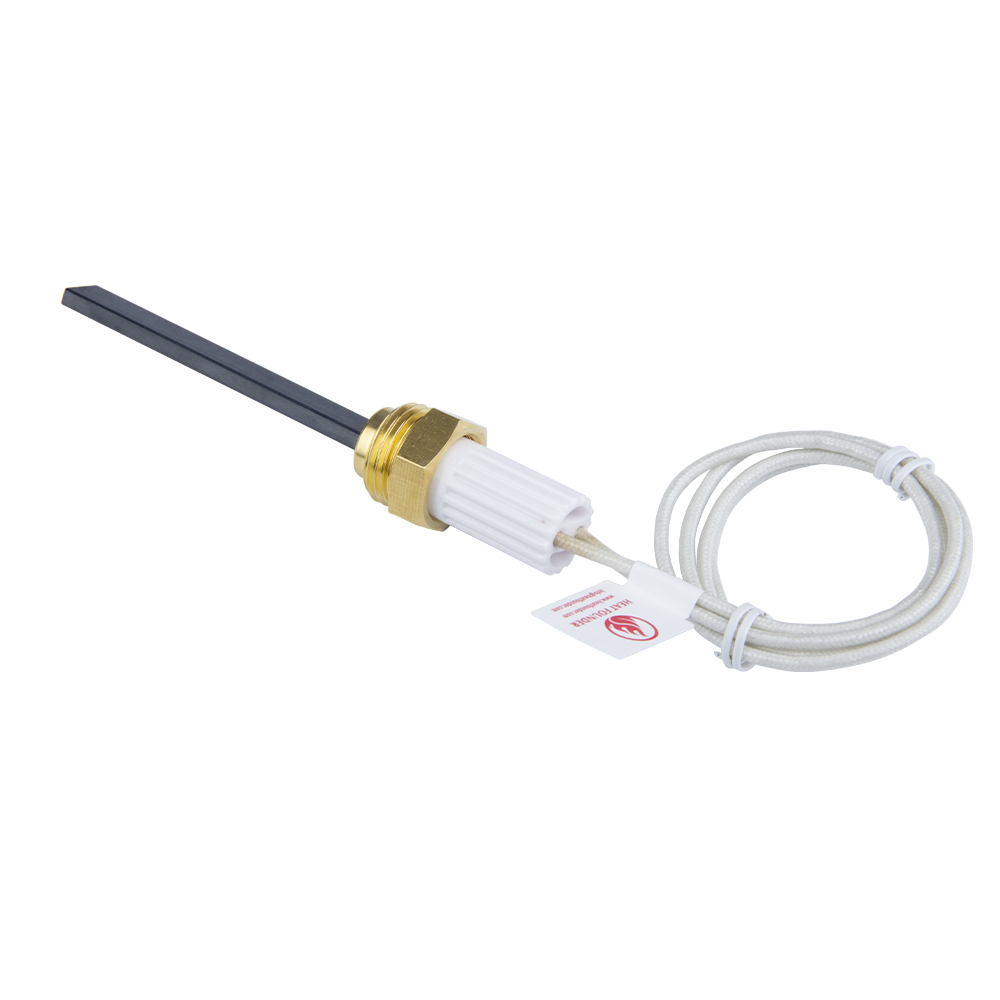

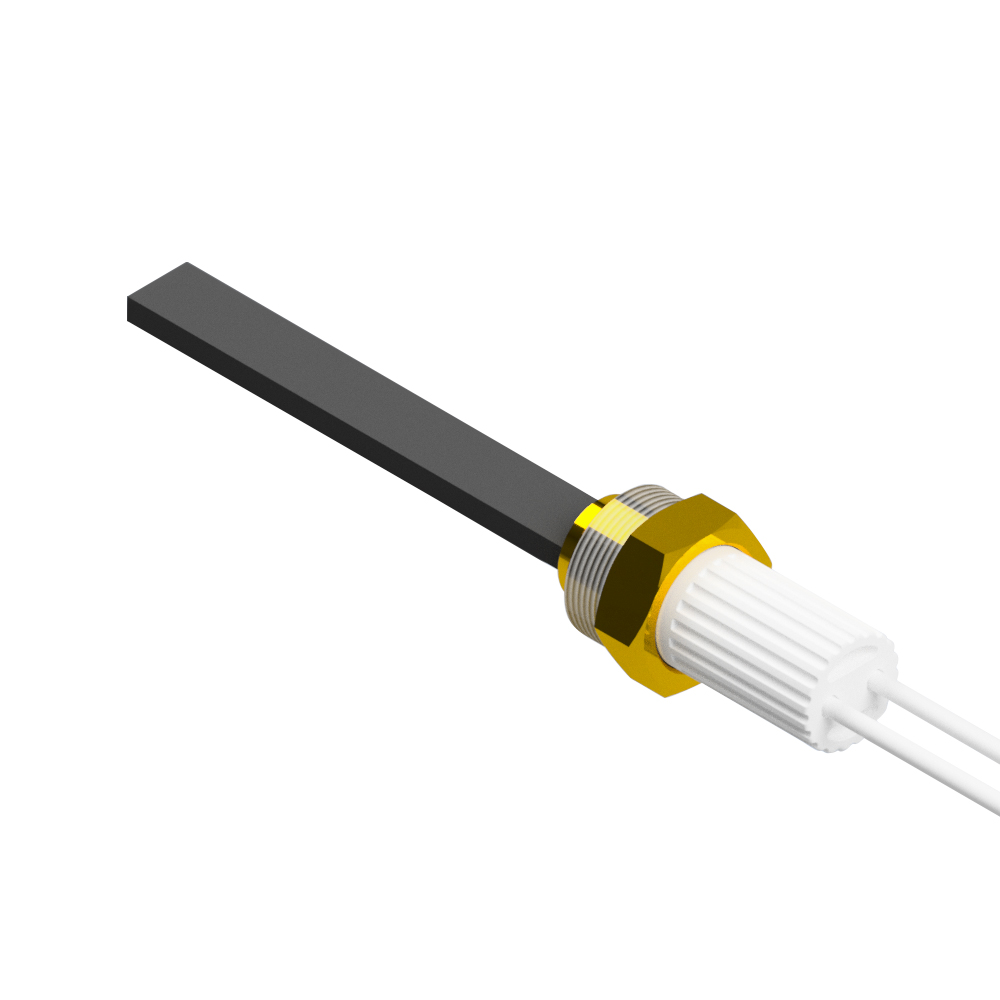

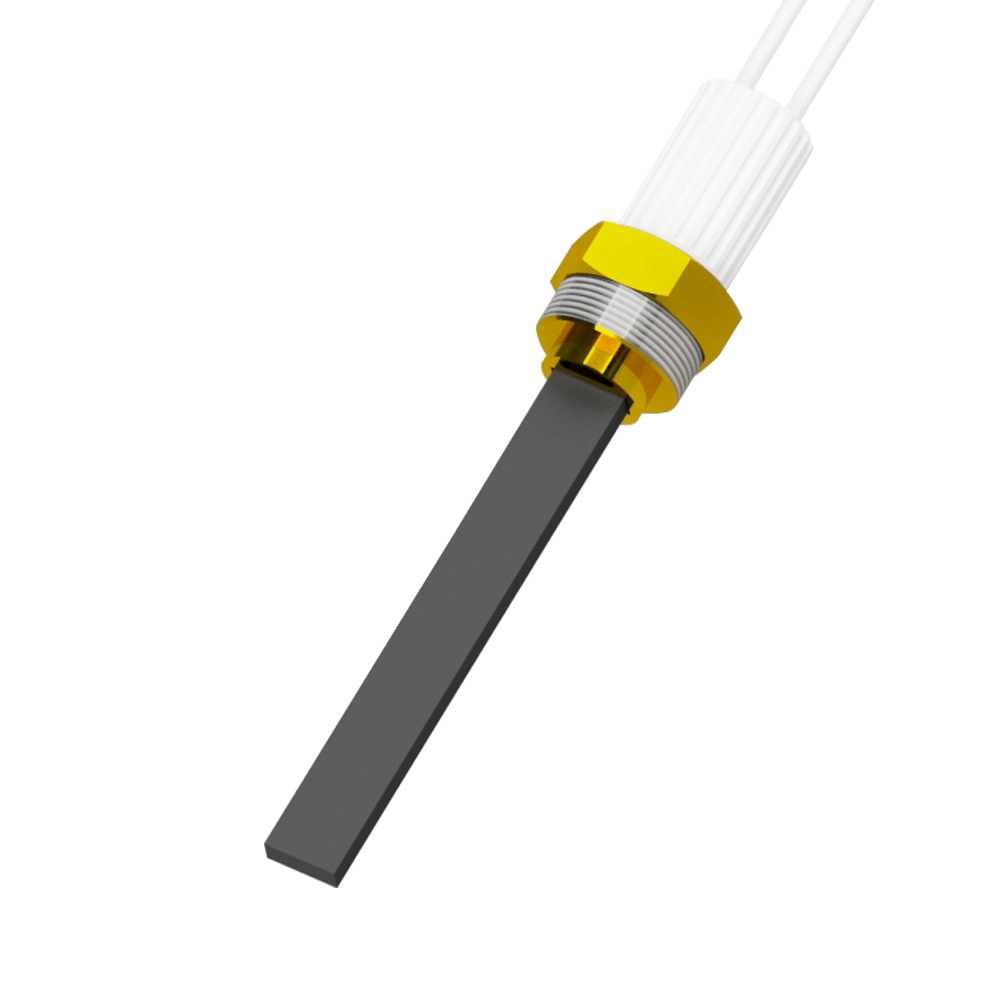

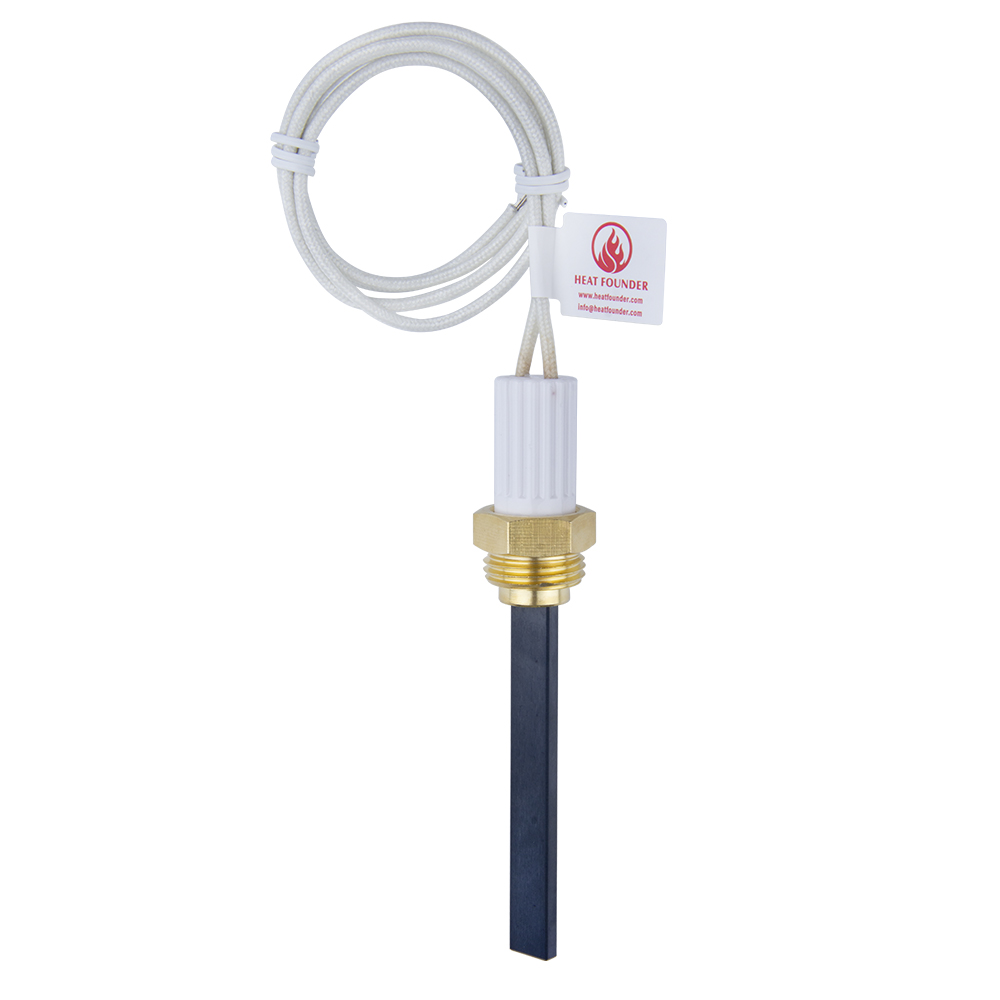

The HF1211 Series Silicon Nitride Igniter is crafted from high-quality silicon nitride (Si3N4), offering exceptional high-temperature resistance. It operates at 230V with a power rating of 300W, ensuring rapid heating up to 1000°C in just 10 seconds. The igniter features a customizable flange in ceramic, stainless steel, or copper, and can withstand temperatures ranging from 1100°C to 1300°C. With a compact design and high watt density, it delivers high thermal efficiency.
Benefits
This furnace igniter enhances operational efficiency by providing rapid and reliable ignition, reducing downtime and increasing productivity. Its long working life of up to 10 years or 100,000 cycles minimizes maintenance costs and ensures consistent performance. High insulation properties guarantee safe operation, while its versatility makes it suitable for a wide range of industrial and domestic applications.
Use Cases

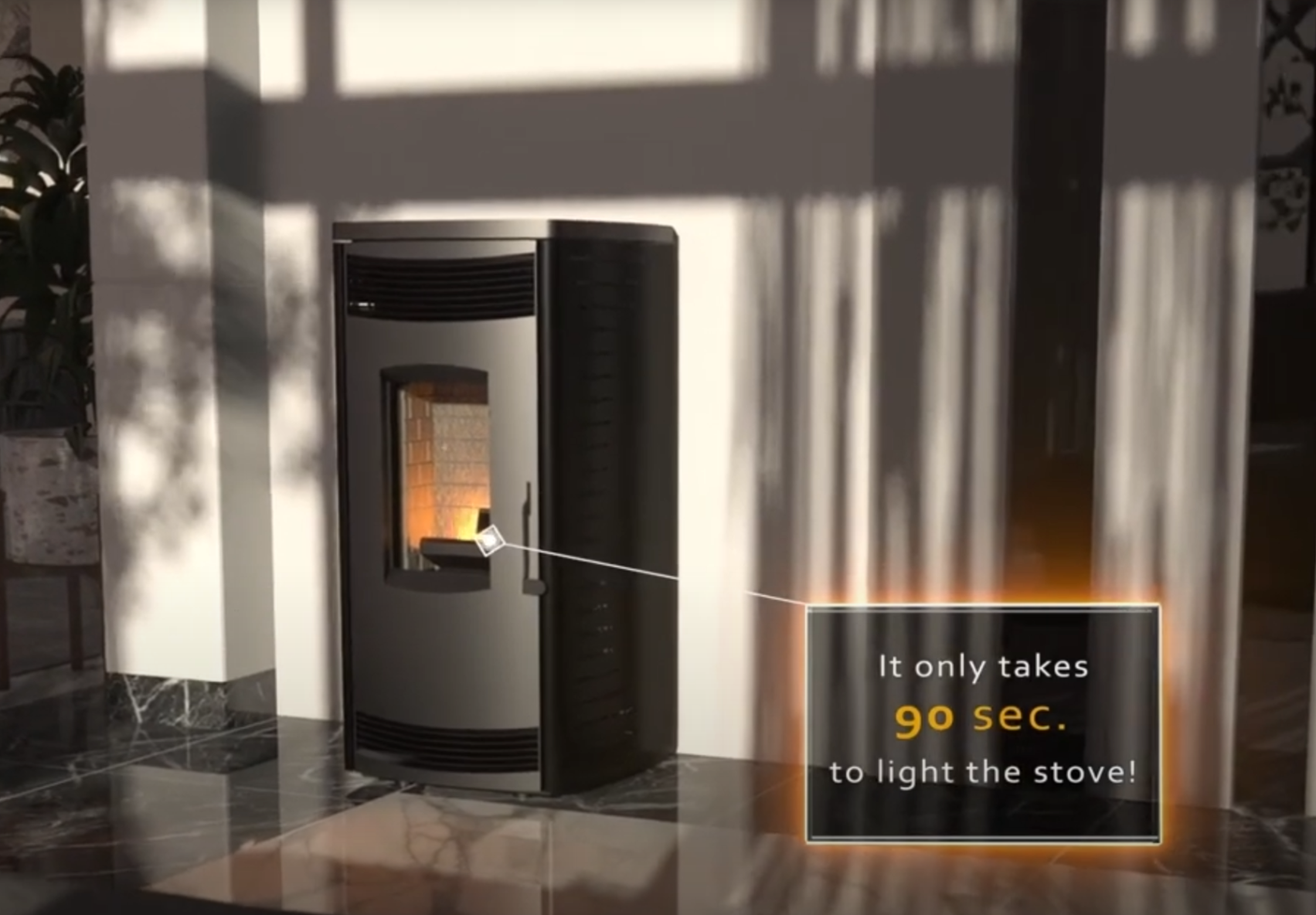

The HF1211 Series Igniter is ideal for biomass boilers/burners, pellet burners, gas burners/stoves, pellet boilers, and various other ignition applications in gas or oil systems. It is also suitable for pellet stoves, BBQ grills, stove fireplaces, medical-scientific equipment, wood pellet stoves, heaters, fuel cells, EV heating, gas appliances, petroleum equipment, and more. Its rapid heating and long life make it a preferred choice for industries requiring reliable and efficient ignition solutions.
| Name | Silicon Nitride Igniter | |
| Model | HF1211 Series | |
| Material | Silicon Nitride (Si3N4) | |
| Color | black | |
| Voltage | 230V | |
| Power | 300W | |
| Flange | Ceramic/Stainless Steel/copper/customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact for confirmation. | |
| Packing | carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications | ||
| Biomass boiler/burner | Pellet burners | |
| Gas burner/stove | Pellet boiler | |
| Ignition of gas or oil | Pellet burner | |
| Pellet Stove | Pellet BBQ grill | |
| Stove fireplace | Medical-Scientific | |
| Wood pellet stove | Heaters-Agricultural | |
| Particle Burning | Spark Igniters | |
| Fuel cells | EV heating | |
| Gas appliances | Glow plug | |
| Petroleum equipment | Cabin heater | |
| Soldering iron | Gas sensor | |
| gas furnaces, | DPF/Catalyst | |
| gas boiler | ||
| Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature:1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing |
||

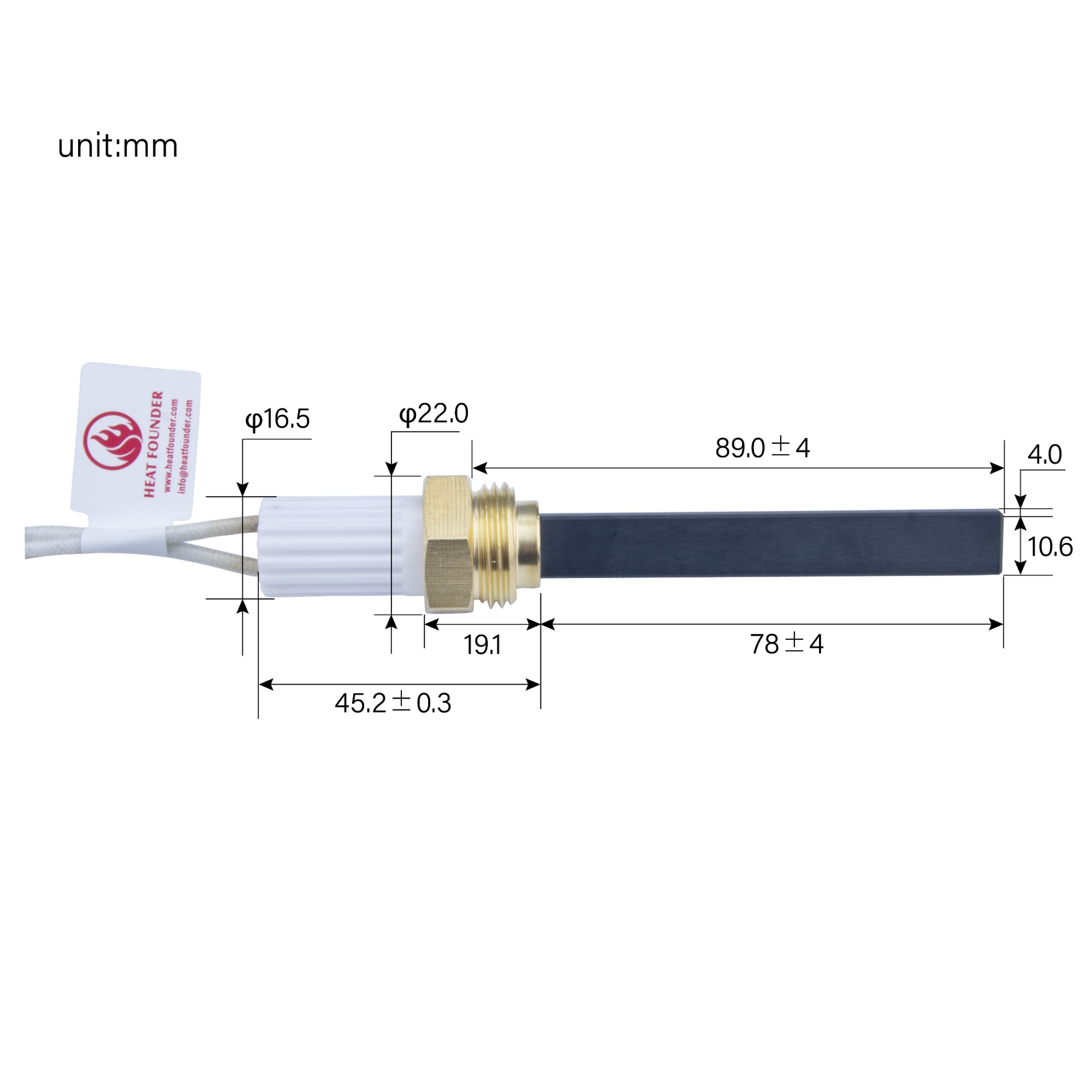

| Model Number | Voltage(V) | Rating power(W) | Width(MM) | Total length Width(MM) | Length under flange(MM) | Length of Hot Zone(MM) | Max.OD.flange(MM) |
| HF1211001 | 230 | 300 | 10.8 | 123 | 89 | 60 | G3/8 |
| HF1211002 | 230 | 400 | 10.8 | 123 | 89 | 60 | G3/8 |
| HF1211003 | 120 | 400 | 10.8 | 123 | 89 | 60 | G3/8 |
| HF1211004 | 24 | 400 | 10.8 | 123 | 89 | 60 | G3/8 |
Why Choose HF1211 Series Igniter?
The HF1211 Series Igniter stands out for its rapid heating capability, reaching up to 1000°C in just 10 seconds, ensuring quick and efficient ignition. Its long working life of up to 10 years or 100,000 cycles reduces maintenance costs and downtime. High insulation properties guarantee safe operation, making it suitable for a wide range of industrial and domestic applications.
What Makes Silicon Nitride Ideal?
Silicon nitride offers exceptional high-temperature resistance, ensuring durability and longevity. Its ability to withstand extreme temperatures without degrading makes it an ideal material for furnace igniters, providing reliable performance over extended periods.
How Does HF1211 Enhance Efficiency?
The HF1211 Series Igniter enhances operational efficiency by providing rapid and reliable ignition, reducing downtime and increasing productivity. Its high watt density ensures high thermal efficiency, while its compact design allows for easy integration into various furnace systems.
