Description
This furnace ignitor provides reliable ignition in high-temperature environments, ensuring efficient operation for biomass boilers, gas burners, and various industrial applications.
Industrial Users – Ignite with Precision and Durability
Incoloy 800 Material
Exceptional heat resistance and durability, ensuring longevity in extreme conditions.
230V Voltage Compatibility
Widely compatible with standard electrical systems, reducing installation complexity.
600~800°C Temperature Range
Perfect for high-temperature applications, ensuring reliable ignition every time.
Strict Quality Control
Certified under SGS, ISO9001, and Intertek, guaranteeing top-notch quality.
Features

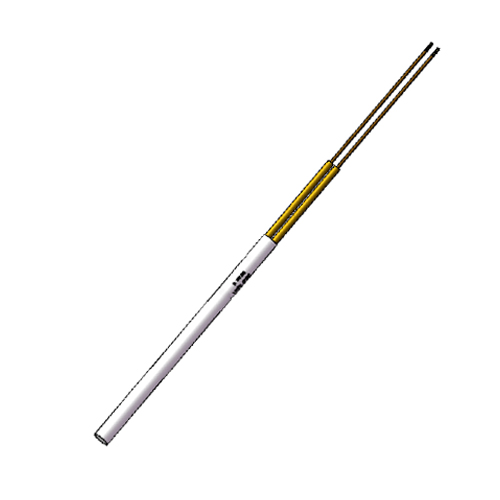

The HF1106 Series Stainless Steel Igniter is crafted from Incoloy 800, a high-performance alloy known for its exceptional heat resistance. With a voltage rating of 230V and a power output of 350W, this igniter is designed to operate efficiently in a wide range of temperatures, from 600 to 800°C. The flange options include ceramic, stainless steel, copper, or customized materials, catering to diverse installation requirements. The ignition time ranges from 100 to 180 seconds, ensuring quick and reliable ignition.
Benefits
This furnace ignitor offers numerous benefits, including enhanced durability due to its Incoloy 800 construction, which withstands extreme temperatures without degrading. Its 230V voltage compatibility simplifies installation and integration into existing systems. The wide temperature range ensures reliable performance in various industrial settings, from biomass boilers to gas appliances. Strict quality control measures, including certifications from SGS, ISO9001, and Intertek, provide peace of mind and assurance of top-quality performance.
Use Cases
The HF1106 Series Igniter is versatile and suitable for a wide range of applications. It is ideal for biomass boilers and burners, pellet burners, gas burners and stoves, pellet boilers, and ignition systems for gas or oil. Additionally, it finds use in pellet stoves, BBQ grills, stove fireplaces, medical-scientific equipment, wood pellet stoves, agricultural heaters, particle burning systems, spark igniters, fuel cells, EV heating, gas appliances, glow plugs, petroleum equipment, cabin heaters, soldering irons, gas sensors, gas furnaces, DPF/Catalysts, and gas boilers. Its adaptability and reliability make it a preferred choice for various industries.
| Name | Stainless Steel Igniter |
| Model | HF1106 Series |
| Material | Incoloy 800 |
| H.S. Code | 8516800000 |
| Voltage | 230V |
| Power | 350W |
| Flange | Ceramic/Stainless Steel/copper/customized |
| Temp Range | 600~800 °C/1112~1472℉ |
| Ignition Time | 100-180 seconds |
| Samples fee | Please contact for confirmation. |
| Packing | carton |
| Lead time | 5 working days for samples; 12 working days for mass production |
| QC | Strict quality control under SGS, ISO9001 and Intertek. |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. |
| Applications | |
| Biomass boiler/burner | Pellet burners |
| Gas burner/stove | Pellet boiler |
| Ignition of gas or oil | Pellet burner |
| Pellet Stove | Pellet BBQ grill |
| Stove fireplace | Medical-Scientific |
| Wood pellet stove | Heaters-Agricultural |
| Particle Burning | Spark Igniters |
| Fuel cells | EV heating |
| Gas appliances | Glow plug |
| Petroleum equipment | Cabin heater |
| Soldering iron | Gas sensor |
| gas furnaces, | DPF/Catalyst |
| gas boiler | |
| Model Number | Voltage(V) | Rating power(W) | OD.tube(mm) | Total length L1(MM) | Length under flange Width L2(MM) |
| HF1106001-E | 230V | 300 | 9.9 | 160 | 125 |
| HF1106002-E | 230V | 320 | 9.9 | 183 | 148 |
| HF1106003-E | 230V | 300 | 9.9 | 165 | 130 |
| HF1106004-E | 230V | 300 | 9.9 | 150 | 115 |
| HF1106005-E | 230V | 250 | 9.9 | 150 | 115 |
| HF1106006-E | 230V | 250 | 9.9 | 155 | 120 |
| HF1106007-E | 230V | 280 | 9.9 | 150 | 115 |
| HF1106008-E | 230V | 300 | 9.9 | 125 | 90 |
| HF1106009-E | 230V | 300 | 9.9 | 155 | 120 |
| HF1106010-E | 230V | 300 | 9.9 | 145 | 110 |
Why Choose the HF1106 Series Furnace Ignitor?
The HF1106 Series Furnace Ignitor stands out for its exceptional heat resistance, 230V voltage compatibility, and wide temperature range. It is designed to provide reliable ignition in high-temperature environments, ensuring efficient operation for a variety of industrial applications.
Key Features and Benefits
Crafted from Incoloy 800, this igniter offers superior durability and heat resistance. Its 230V voltage compatibility simplifies installation, while the wide temperature range ensures reliable performance. Strict quality control measures guarantee top-notch quality, providing peace of mind and assurance of long-lasting performance.
Diverse Applications
From biomass boilers to gas appliances, the HF1106 Series Igniter is versatile and suitable for a wide range of industrial settings. Its adaptability and reliability make it a preferred choice for professionals seeking efficient and durable ignition solutions.
