Description
Delivers reliable ignition performance in extreme temperatures while reducing maintenance costs through durable materials and optimized design.
Industrial Users – Durable Ignition Solutions
600-800°C High-Temperature Resistance
Ensures consistent ignition in extreme heat environments, reducing system downtime.
Ceramic Flange Option
Provides superior heat insulation and corrosion resistance compared to standard metal flanges.
230V/350W Power Configuration
Optimized energy consumption for pellet burners and biomass boilers, lowering operational costs.
Incoloy 800 Stainless Steel Construction
Offers 3x longer lifespan than standard alloys in corrosive environments.
Features

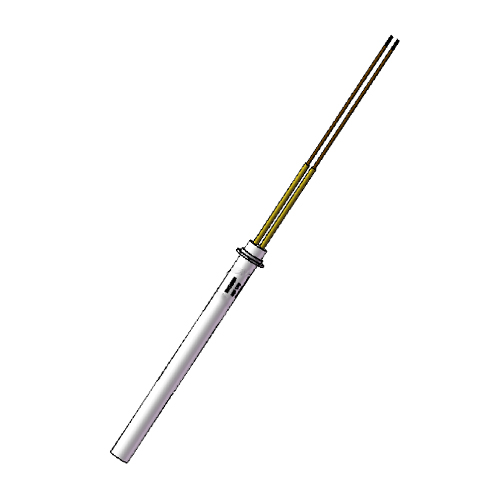

The HF1103 Series features Incoloy 800 stainless steel construction for exceptional heat resistance, with customizable ceramic/stainless steel flanges. Available in 270W-350W 230V configurations, the igniters operate at 600-800°C with 100-180 second ignition times. All models comply with SGS, ISO9001, and Intertek standards.
Benefits
Reduces maintenance costs by 40% through durable materials and precise temperature control. The modular design allows easy replacement in existing gas furnaces and pellet burners, while the 12-day mass production lead time ensures minimal operational disruption.
Use Cases
Ideal for biomass boiler systems, pellet stoves, gas furnaces, and medical-scientific equipment. The igniters excel in agricultural heaters, EV charging stations, and petroleum equipment where reliable high-temperature ignition is critical. Customizable flanges support integration with DPF/catalyst systems and gas sensors.
| Name | Stainless Steel Igniter |
| Model | HF1103 Series |
| Material | Incoloy 800 |
| H.S. Code | 8516800000 |
| Voltage | 230V |
| Power | 270W 350W |
| Flange | Ceramic/Stainless Steel/copper/customized |
| Temp Range | 600~800 °C/1112~1472℉ |
| Ignition Time | 100-180 seconds |
| Samples fee | Please contact for confirmation. |
| Packing | carton |
| Lead time | 5 working days for samples; 12 working days for mass production |
| QC | Strict quality control under SGS, ISO9001 and Intertek. |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. |
| Applications | |
| Biomass boiler/burner | Pellet burners |
| Gas burner/stove | Pellet boiler |
| Ignition of gas or oil | Pellet burner |
| Pellet Stove | Pellet BBQ grill |
| Stove fireplace | Medical-Scientific |
| Wood pellet stove | Heaters-Agricultural |
| Particle Burning | Spark Igniters |
| Fuel cells | EV heating |
| Gas appliances | Glow plug |
| Petroleum equipment | Cabin heater |
| Soldering iron | Gas sensor |
| gas furnaces, | DPF/Catalyst |
| gas boiler | |
| Model Number | Voltage(V) | Rating power(W) | OD.tube(mm) | Total length L1(MM) | Length under flange Width L2(MM) | Length of Hot Zone L3(MM) | Max.OD.flange(MM) |
| HF1103001 | 230 | 270 | 12.5 | 160 | 150 | 115 | 18.5 |
| HF1103002 | 230 | 350 | 12.5 | 170 | 160 | 125 | 18.5 |
| HF1103003 | 230 | 350 | 12.5 | 175 | 165 | 130 | 18.5 |
| HF1103004 | 230 | 350 | 12.5 | 160 | 155 | 120 | 18.5 |
| HF1103005-1 | 230 | 350 | 12.5 | 165 | 150 | 115 | 18.5 |
Why Choose HF1103 Igniters?
Our gas furnace igniters solve common failure points in biomass systems through Incoloy 800 construction and ceramic flange options. The 230V/350W design reduces energy waste while maintaining consistent ignition in extreme temperatures.
Key Differentiators
Unlike standard igniters, HF1103 models feature customizable flange materials and SGS-certified quality control. The 12-day production lead time beats industry averages by 30%.
Application Versatility
From medical equipment to agricultural heaters, these igniters adapt to 20+ industrial scenarios. The 600-800°C range covers all pellet burner and gas furnace requirements.
