Description
Delivering reliable, high-speed ignition solutions to enhance heating system performance and durability.
Heating Systems – Achieve Faster Ignition with Hot Surface Igniter
Rapid Heating
Achieves up to 1000°C in just 10 seconds, significantly reducing wait times for ignition.
High Watt Density
Compact size with high watt density for efficient thermal energy transfer.
Longevity
Designed for a 10-year lifespan or up to 90,000 hours of operation.
Oxidation & Chemical Resistance
Silicon Nitride material ensures durability in harsh environments.
Features

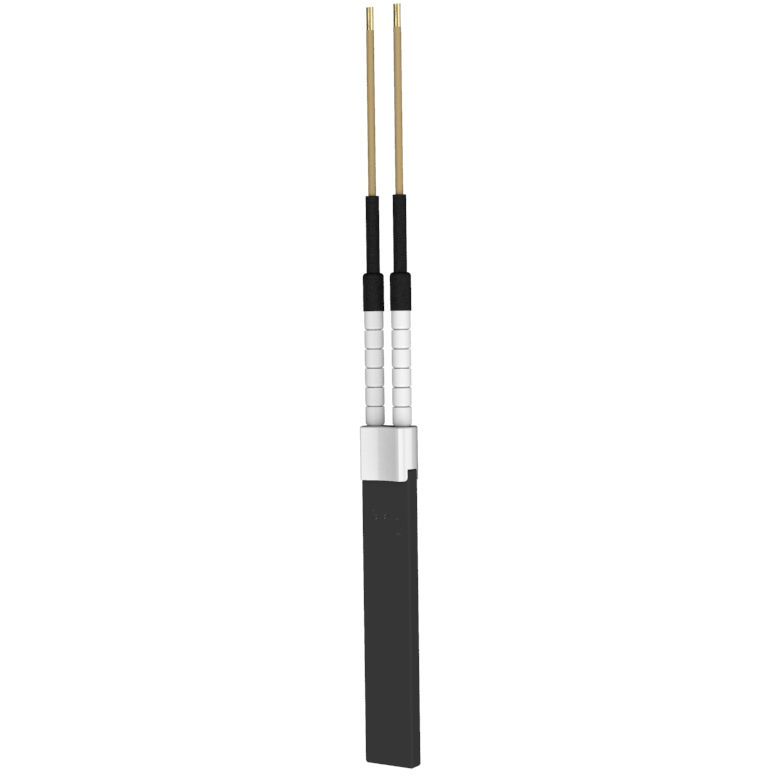

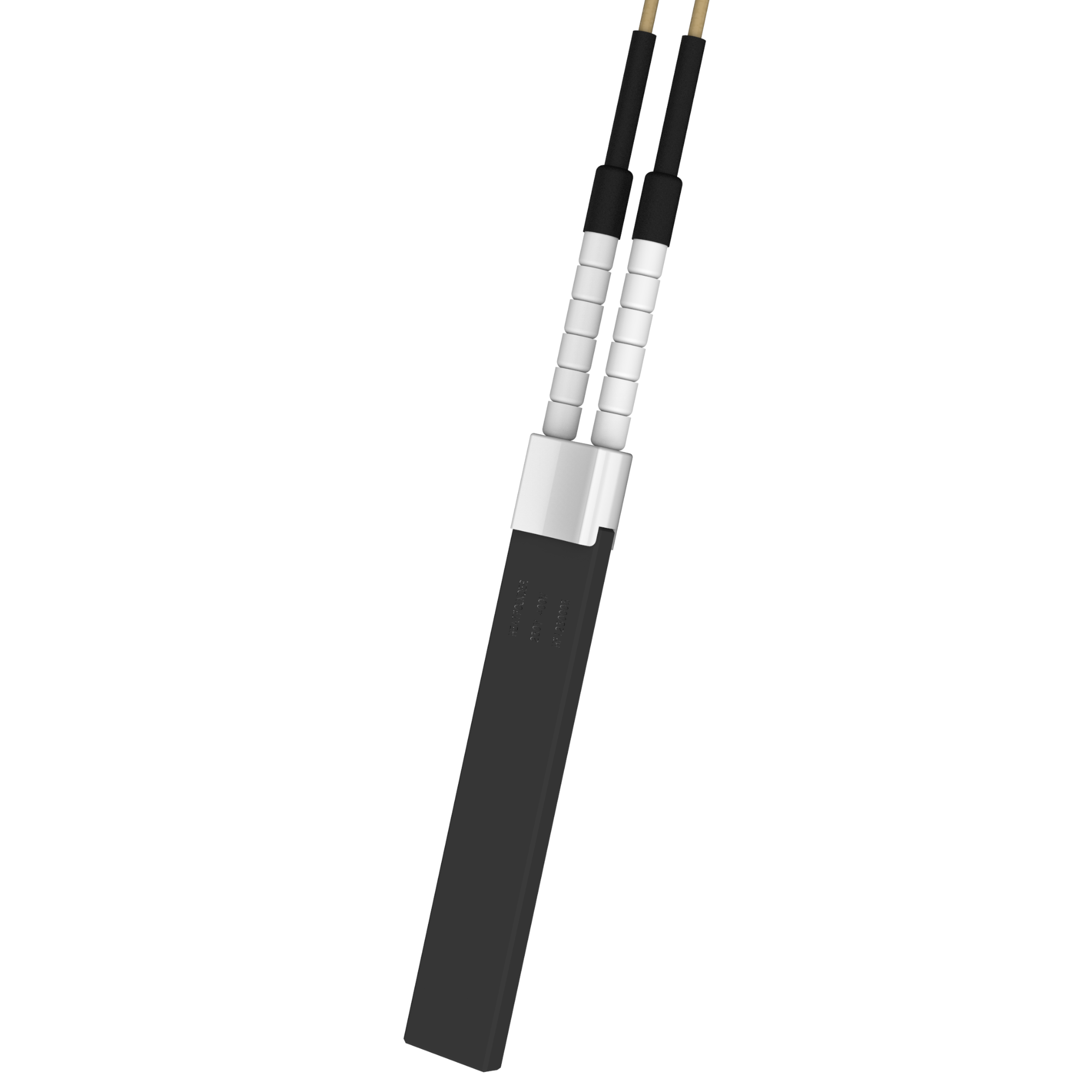

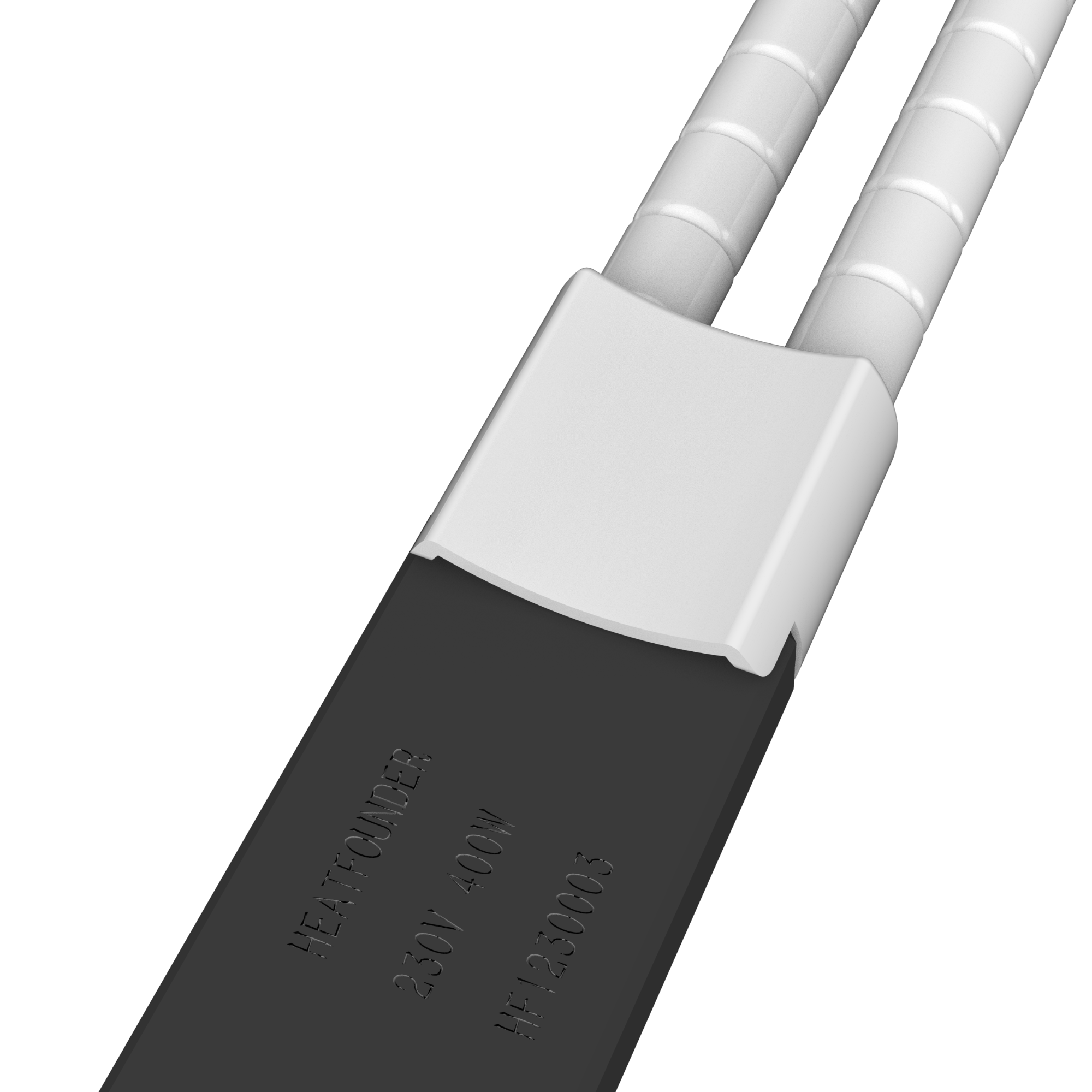

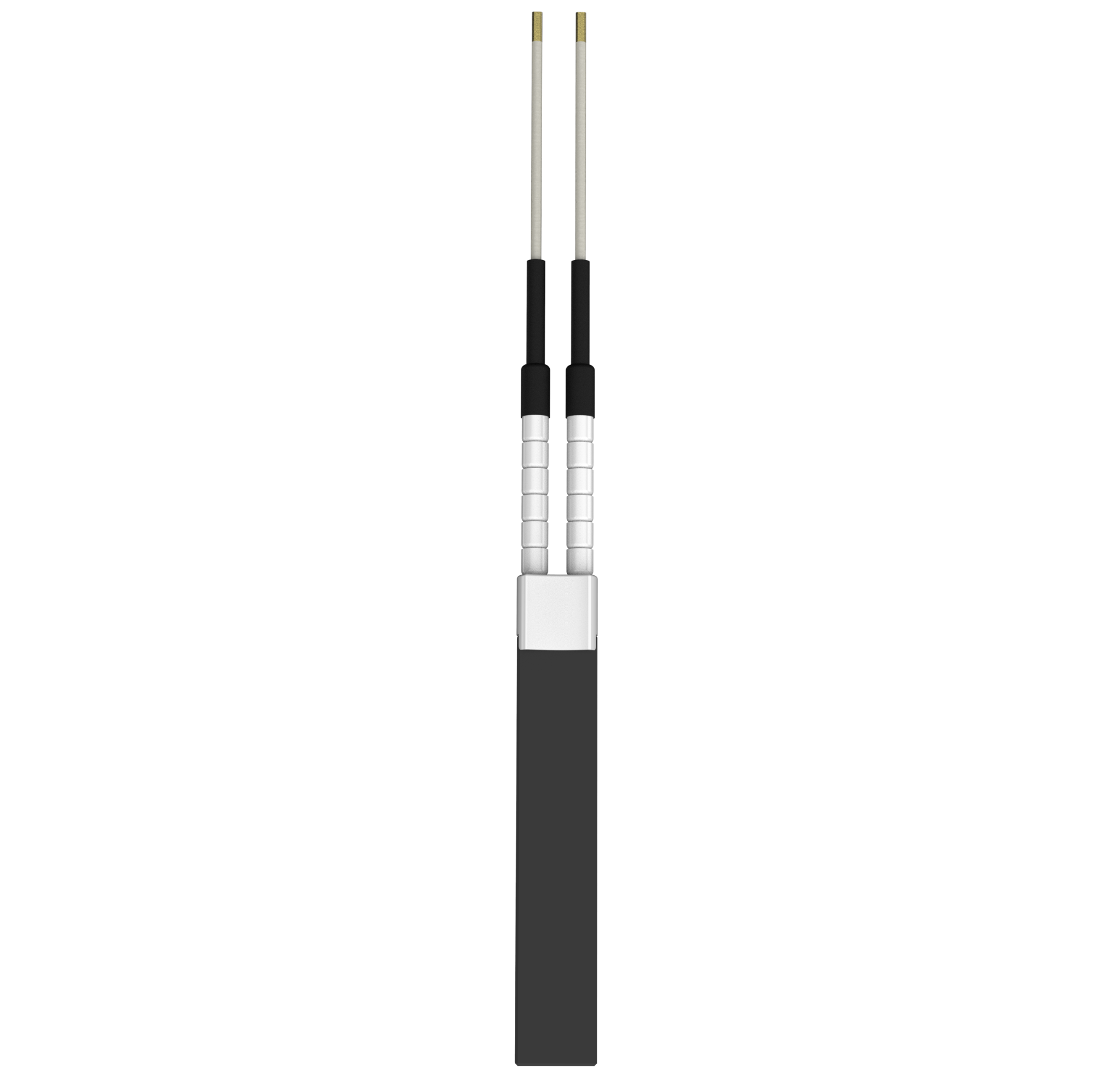

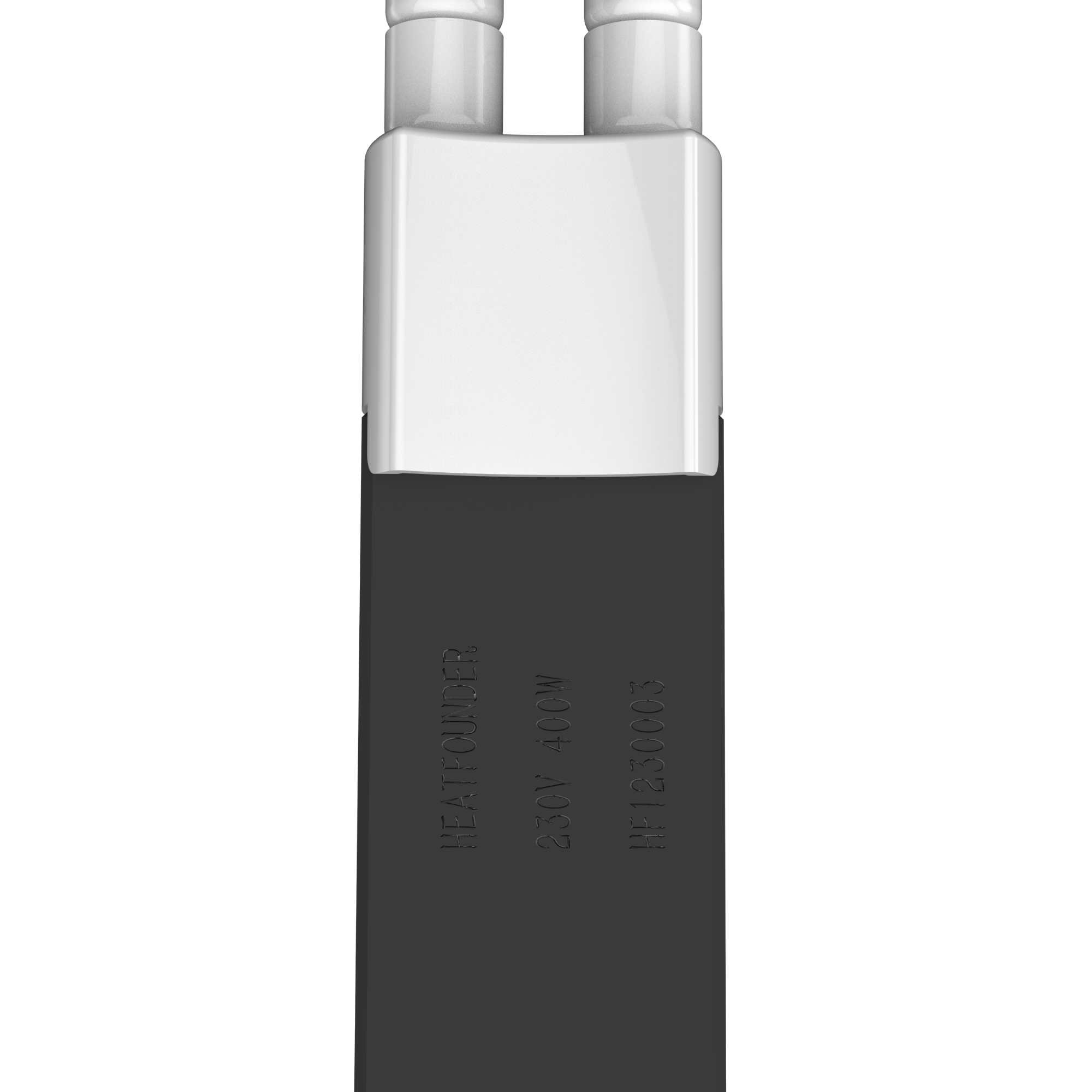

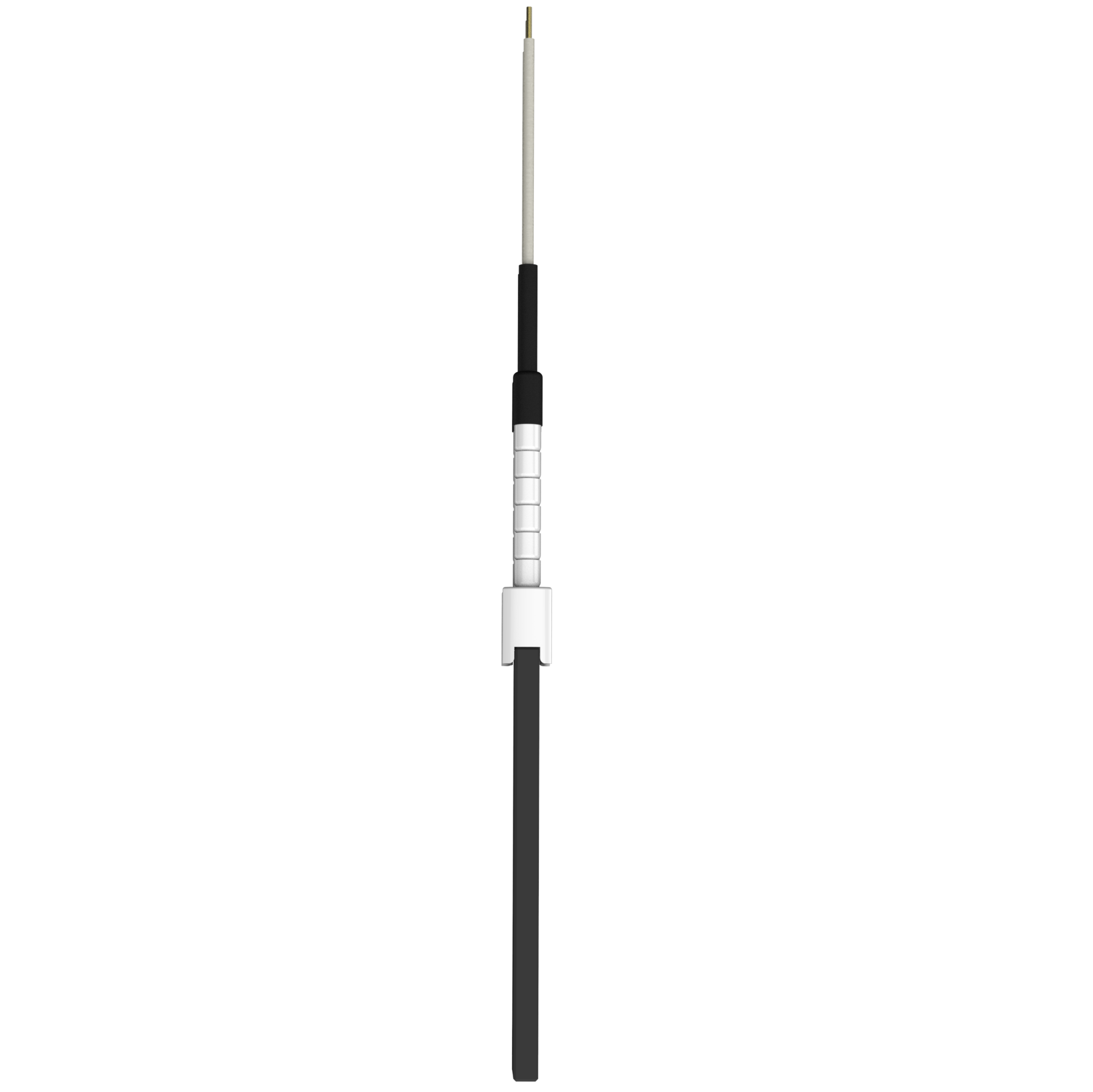

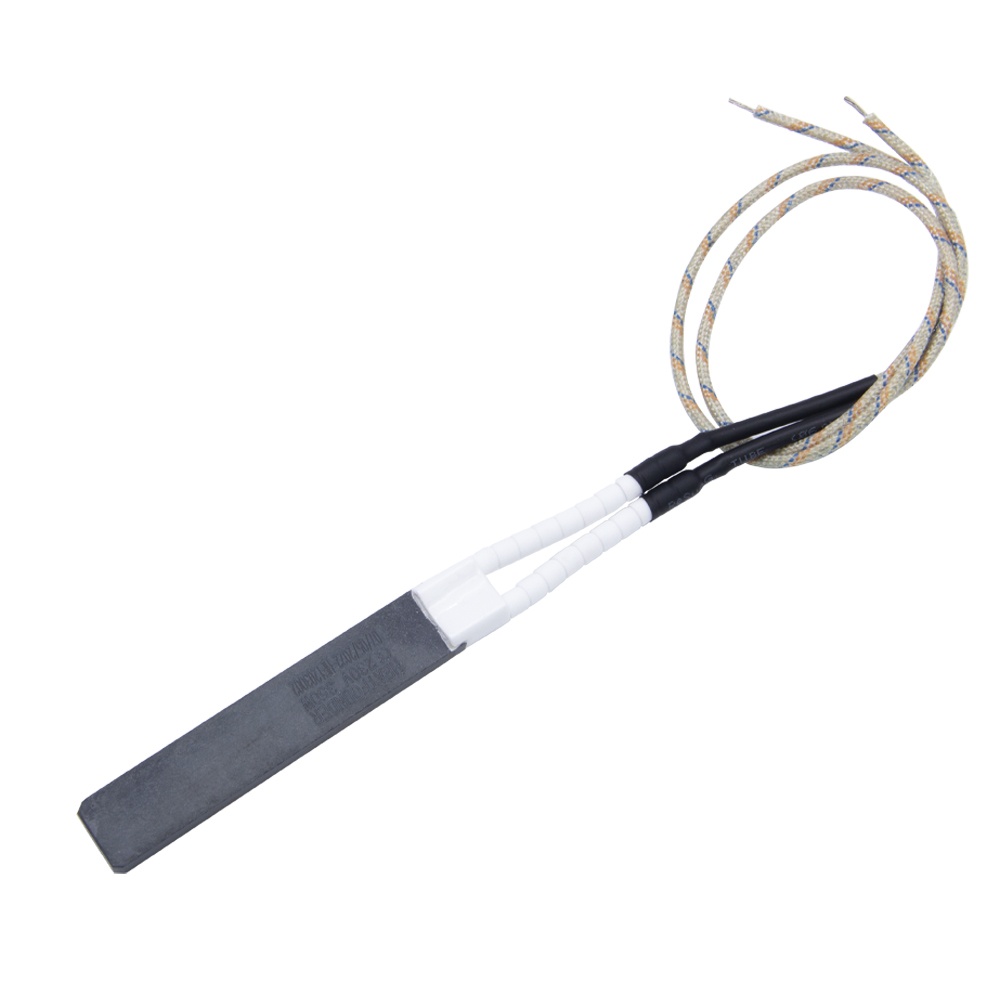

The HF1203 Series Hot Surface Igniter is crafted from premium Silicon Nitride (Si3N4), offering exceptional thermal stability and chemical resistance. It operates at 230V with power options of 250W, 280W, 350W, and 400W. The igniter features a customizable flange (Ceramic/Stainless Steel/Copper) and can withstand temperatures ranging from 1100°C to 1300°C (2012°F to 2372°F). Its compact design and high watt density make it ideal for space-constrained applications.
Benefits
This hot surface igniter enhances heating system efficiency by providing rapid ignition, reducing energy consumption, and extending system lifespan. Its resistance to oxidation and chemicals ensures reliable performance in diverse environments, minimizing maintenance costs and downtime. The igniter’s versatility allows it to be used in various heating applications, from residential gas water heaters to industrial biomass boilers.
Use Cases
The HF1203 Series Hot Surface Igniter is widely used in biomass boilers/burners, pellet burners, gas burners/stoves, pellet boilers, and ignition systems for gas or oil. It is also suitable for pellet stoves, BBQ grills, stove fireplaces, medical-scientific equipment, wood pellet stoves, agricultural heaters, particle burning systems, spark igniters, fuel cells, EV heating, gas appliances, glow plugs, petroleum equipment, cabin heaters, soldering irons, gas sensors, gas furnaces, DPF/Catalyst systems, and gas boilers. Its adaptability makes it a valuable component in both residential and commercial heating solutions.
| Name | Silicon Nitride Igniter | |
| Model | HF1203 Series | |
| Material | Silicon Nitride (Si3N4) | |
| H.S. Code | 8516800000 | |
| Color | black | |
| Voltage | 230V | |
| Power | 250W 280W 350W 400W | |
| Flange | Ceramic/Stainless Steel/copper/customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact for confirmation. | |
| Packing | carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications | ||
| Biomass boiler/burner | Pellet burners | |
| Gas burner/stove | Pellet boiler | |
| Ignition of gas or oil | Pellet burner | |
| Pellet Stove | Pellet BBQ grill | |
| Stove fireplace | Medical-Scientific | |
| Wood pellet stove | Heaters-Agricultural | |
| Particle Burning | Spark Igniters | |
| Fuel cells | EV heating | |
| Gas appliances | Glow plug | |
| Petroleum equipment | Cabin heater | |
| Soldering iron | Gas sensor | |
| gas furnaces, | DPF/Catalyst | |
| gas boiler | ||
| Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature:1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing |
||

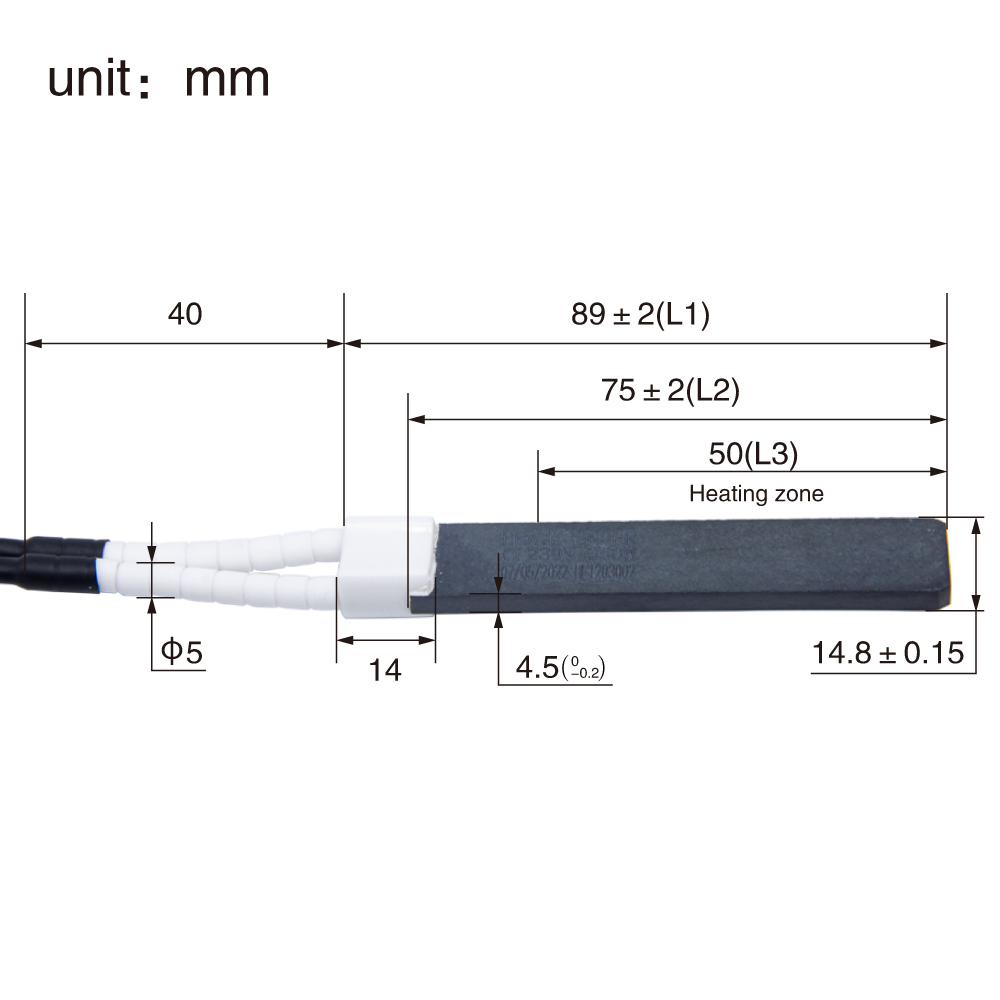

| Model Number | Voltage(V) | Rating power(W) | Width(MM) | Total length Width(MM) | Length under flange(MM) | Length of Hot Zone(MM) | Max.OD.flange(MM) |
| HF1203001 | 230 | 250 | 14.8 | 89 | 75 | 50 | 8.3 |
| HF1203002 | 230 | 350 | 14.8 | 89 | 75 | 50 | 8.3 |
| HF1203003 | 230 | 400 | 14.8 | 89 | 75 | 50 | 8.3 |
| HF1203004 | 230 | 280 | 14.8 | 89 | 75 | 50 | 8.3 |
Why Choose Hot Surface Igniter?
The HF1203 Series Hot Surface Igniter offers rapid heating, high watt density, and long-lasting performance. Its Silicon Nitride construction ensures durability in harsh conditions, making it ideal for a wide range of heating applications.
Key Features of Hot Surface Igniter
This igniter provides up to 1000°C in 10 seconds, withstands temperatures up to 1300°C, and offers a 10-year lifespan. Its compact design and high watt density enhance thermal efficiency.
Applications of Hot Surface Igniter
Suitable for gas water heaters, biomass boilers, pellet stoves, and more, the HF1203 Series Hot Surface Igniter is a versatile solution for residential and commercial heating needs.
