Description
Delivers ultra-fast ignition, thermal stability, and extended durability to optimize heating system performance while reducing operational costs.
Heating Systems – Achieve 90% Faster Ignition

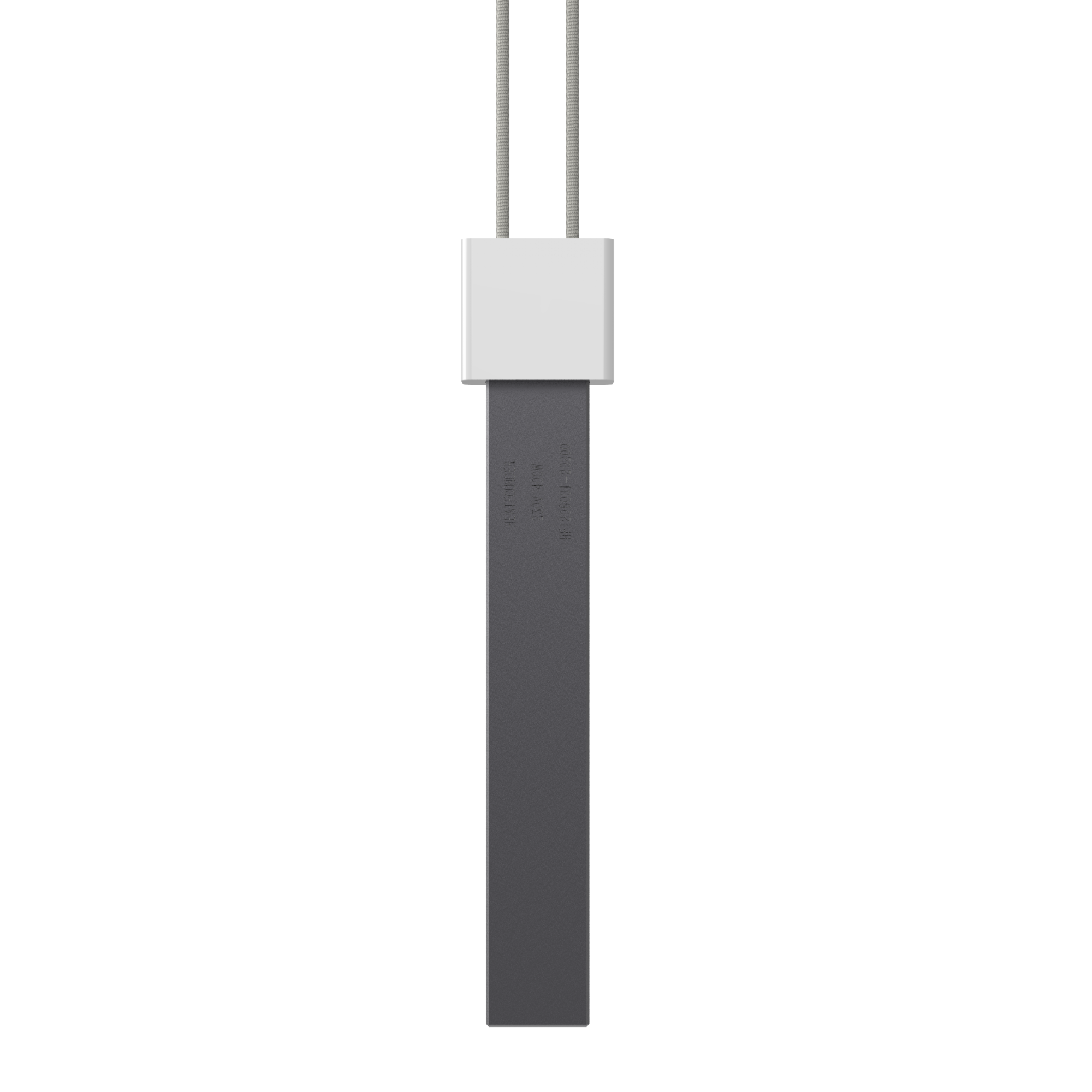

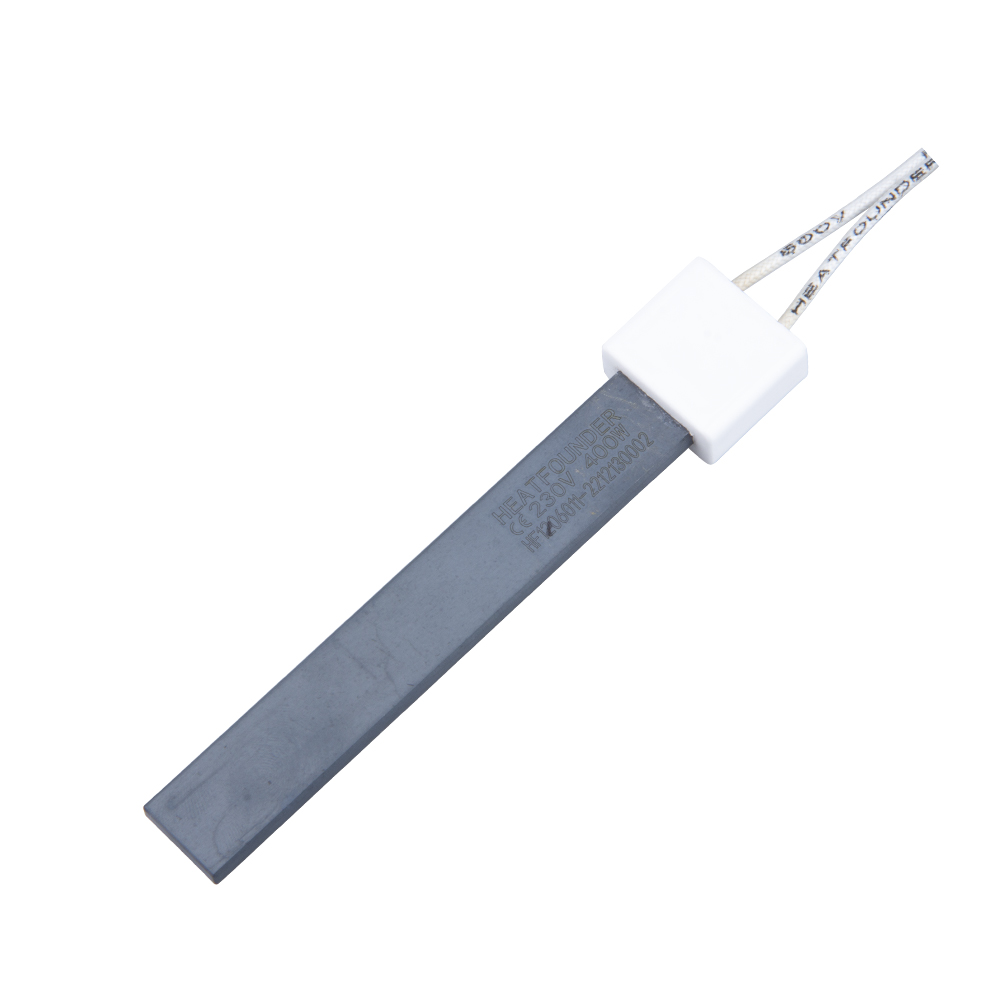

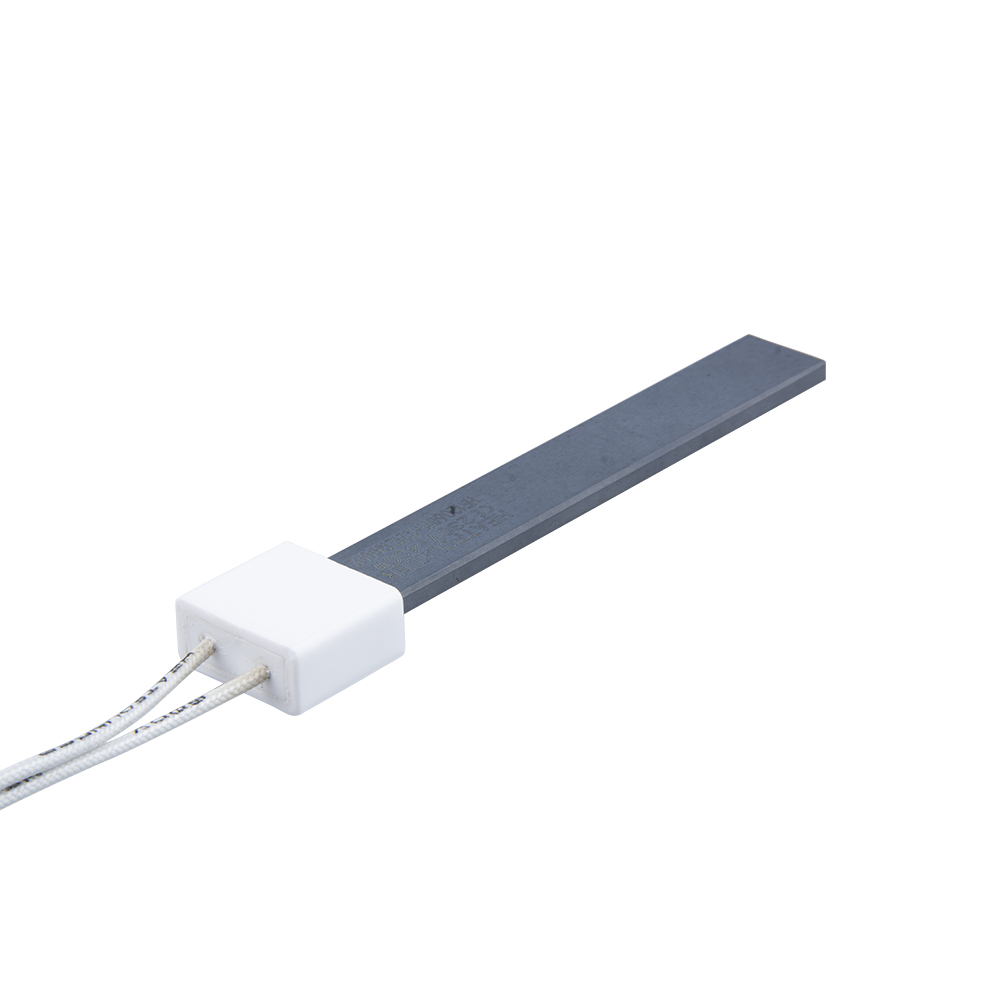

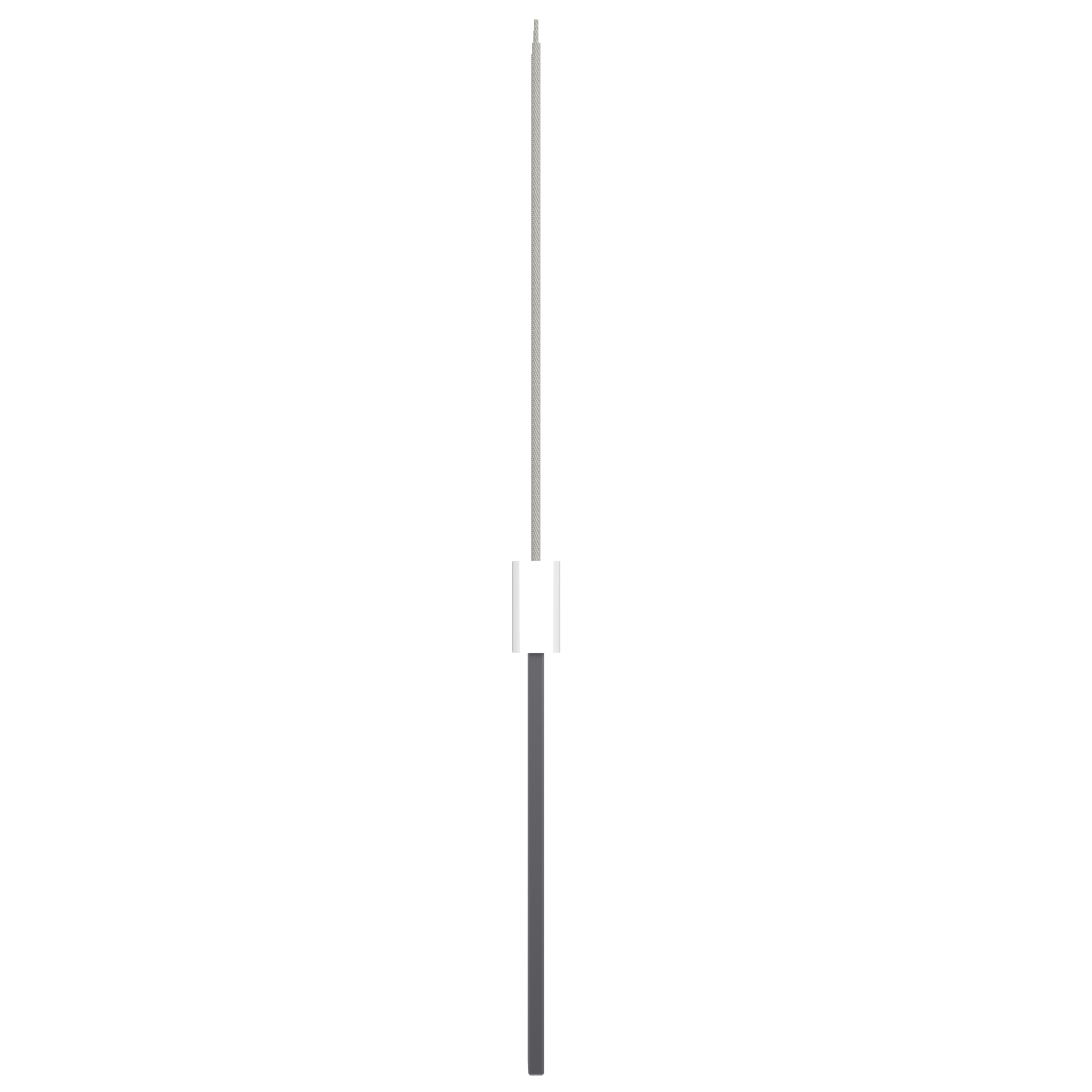

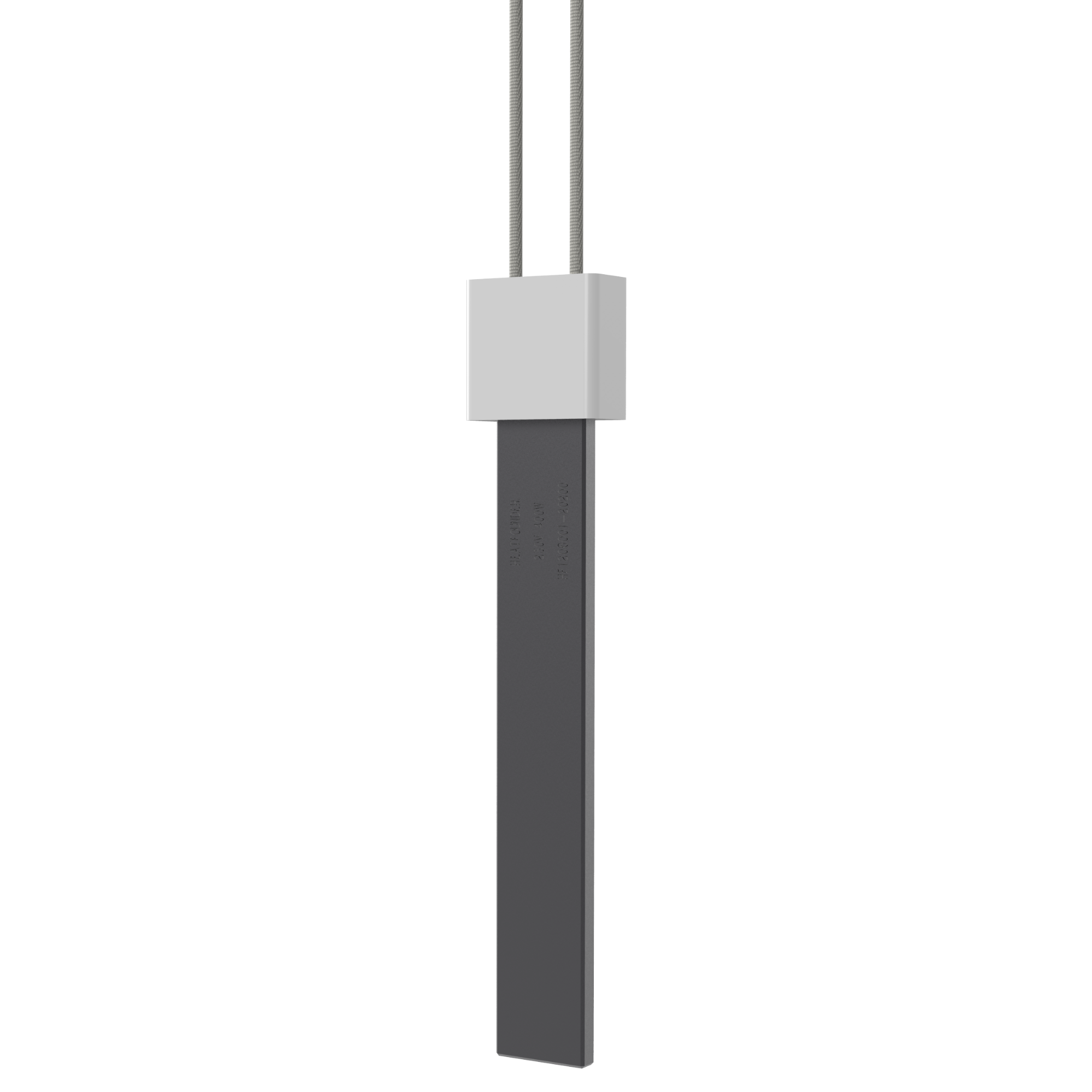

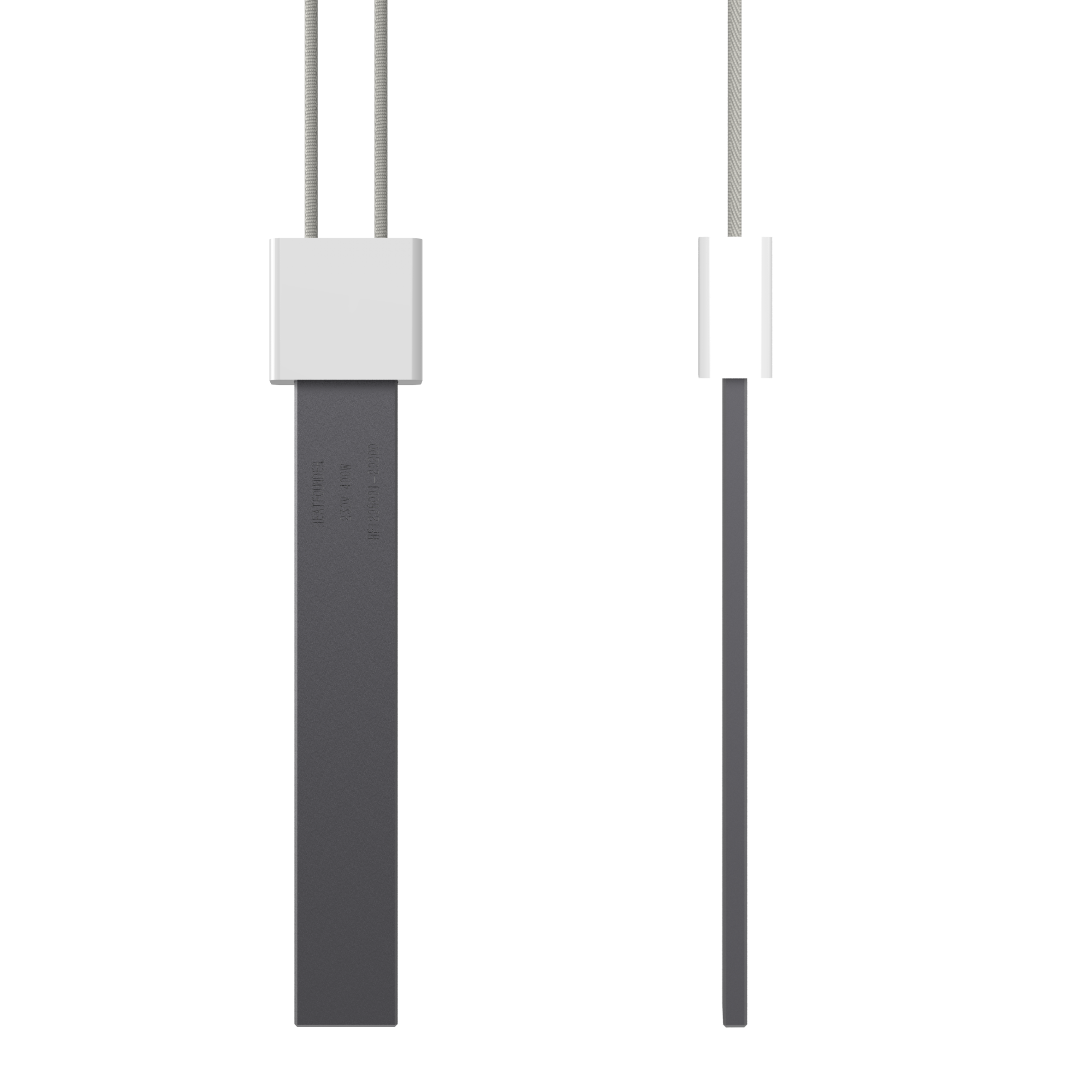

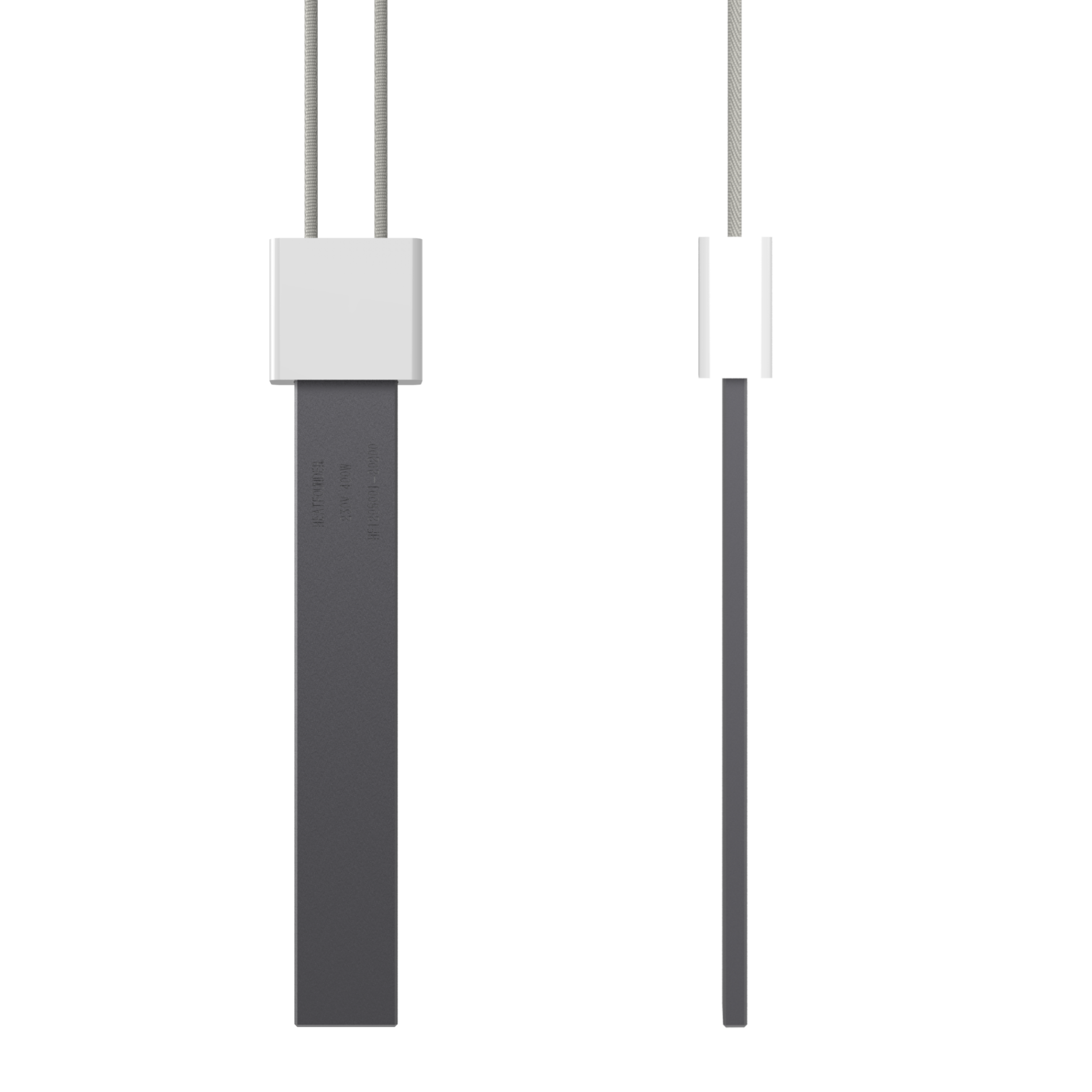

Silicon Nitride (Si3N4) Construction
Withstands 1,300°C temperatures, 3x more durable than ceramic alternatives
10-Second Rapid Heating
Reaches 1,000°C in 10 seconds, cutting preheat time by 75%
10-Year Lifespan
90,000-hour operational endurance, reducing replacement frequency by 80%
Multi-Voltage Compatibility
Supports 110V/230V systems, eliminating need for voltage converters
Features

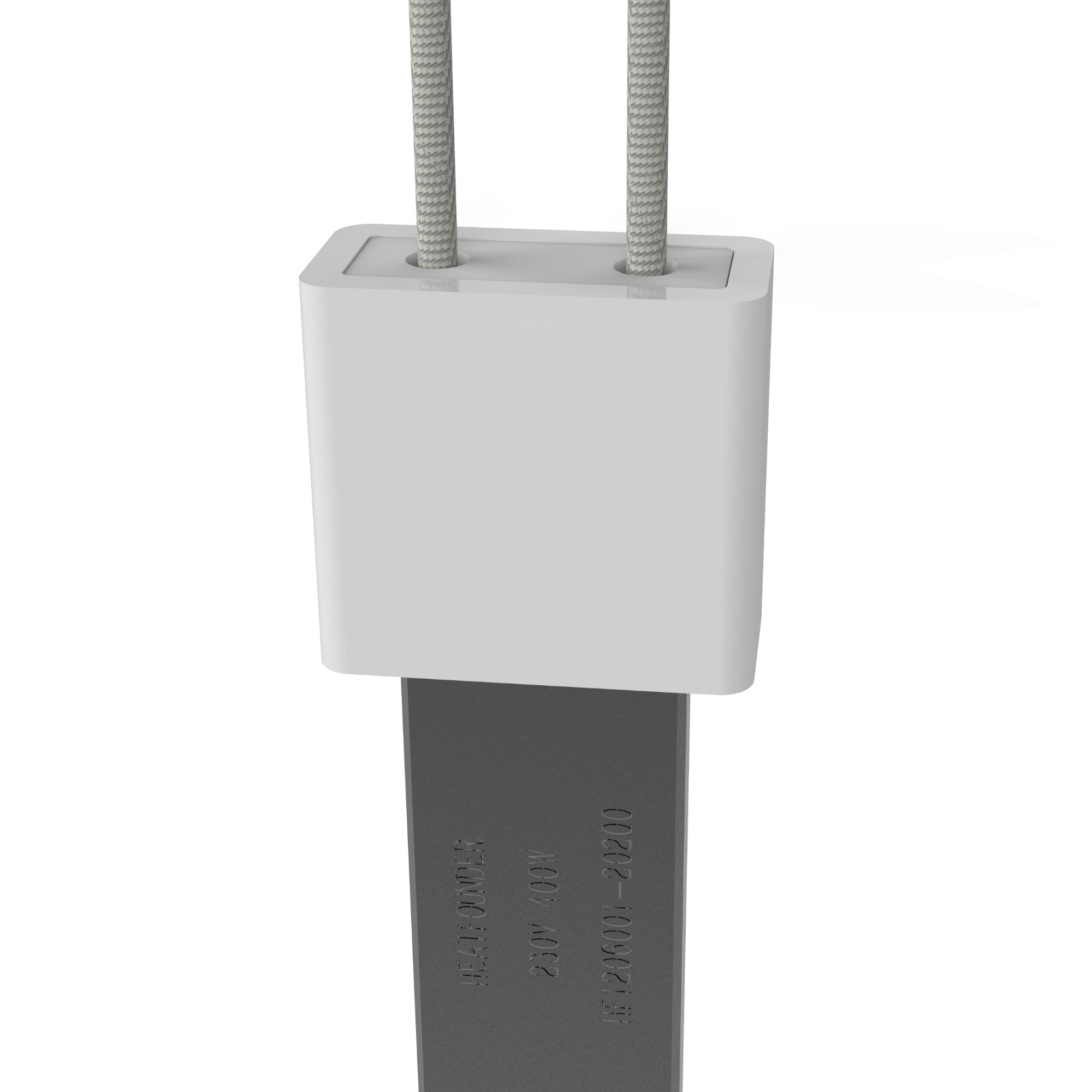

Material: Silicon Nitride (Si3N4) with ceramic/stainless steel flange options
Voltage: Dual 110V/230V compatibility
Power Range: 100W-900W adjustable output
Temperature: 1,100-1,300°C continuous operation
Dimensions: 17mm width with customizable flange sizes up to 23mm OD
Certifications: BSCI, ISO9000/14001, TUV, SGS, FSC compliant
Benefits
Energy Efficiency: Reduces preheat energy consumption by 65% through rapid ignition
Cost Savings: Eliminates frequent replacements with 10-year lifespan
Safety: High insulation rating prevents electrical hazards in wet environments
Versatility: Adaptable to biomass boilers, gas stoves, medical equipment, and EV heating systems
Compliance: Meets international safety standards for global market access
Use Cases
Industrial Heating: Biomass boilers, pellet burners, gas furnaces, and fuel cell systems
Residential Solutions: Wood pellet stoves, BBQ grills, cabin heaters, and fireplace inserts
Commercial Applications: Restaurant kitchen equipment, agricultural heaters, and soldering stations
Specialized Uses: Medical-scientific devices, gas sensors, DPF catalysts, and EV battery warming systems
Petroleum Sector: Oil ignition systems and refinery equipment

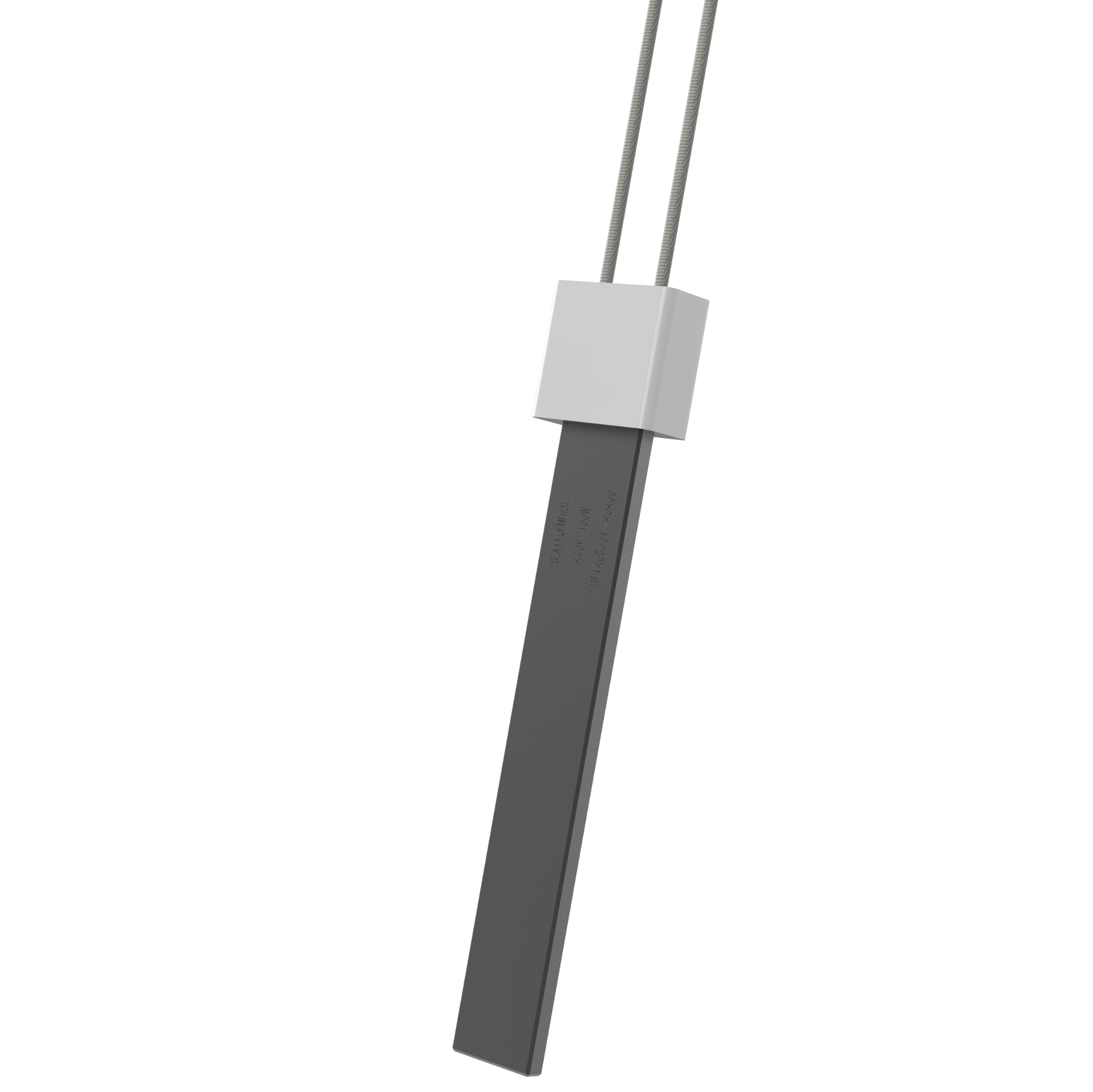

| Name | Silicon Nitride Igniter | |
| Model | HF1206 Series | |
| Material | Silicon Nitride (Si3N4) | |
| H.S. Code | 8516800000 | |
| Color | black | |
| Voltage | 110V 230V | |
| Power | 100W 400W 450W 600W 750W 900W | |
| Flange | Ceramic/Stainless Steel/copper/customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact for confirmation. | |
| Packing | carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications | ||
| Biomass boiler/burner | Pellet burners | |
| Gas burner/stove | Pellet boiler | |
| Ignition of gas or oil | Pellet burner | |
| Pellet Stove | Pellet BBQ grill | |
| Stove fireplace | Medical-Scientific | |
| Wood pellet stove | Heaters-Agricultural | |
| Particle Burning | Spark Igniters | |
| Fuel cells | EV heating | |
| Gas appliances | pellet stove igniter | |
| Petroleum equipment | Cabin heater | |
| Soldering iron | Gas sensor | |
| gas furnaces, | DPF/Catalyst | |
| gas boiler | ignitor furnace | |
| Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature:1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing |
||
| Model Number | Voltage(V) | Rating power(W) | Width(MM) | Total length Width(MM) | Length under flange(MM) | Length of Hot Zone(MM) | Max.OD.flange(MM) |
| HF1206001 | 110 | 100 | 17 | 52 | 29 | 15 | 23 |
| HF1206002 | 230 | 400 | 17 | 95 | 72 | 58 | 23 |
| HF1206003 | 230 | 600 | 17 | 115 | 92 | 76 | 23 |
| HF1206004 | 230 | 900 | 17 | 115 | 92 | 76 | 23 |
| HF1206005 | 230 | 400 | 17 | 128 | 105 | 84 | 23 |
| HF1206006 | 230 | 600 | 17 | 128 | 105 | 84 | 23 |
| HF1206007 | 230 | 600 | 17 | 135 | 112 | 98 | 23 |
| HF1206008 | 230 | 900 | 17 | 135 | 112 | 98 | 23 |
| HF1206009 | 230 | 450 | 17 | 138 | 115 | 94 | 23 |
| HF1206010 | 230 | 750 | 17 | 138 | 115 | 94 | 23 |
Why Choose Our Hot Surface Igniter?
Our silicon nitride igniter achieves 1,000°C in 10 seconds, lasts 10 years, and operates across 110V/230V systems. Certified by SGS, ISO, and TUV for global compliance.
How Does It Reduce Costs?
By cutting preheat time by 75% and replacement needs by 80%, users save on energy bills and maintenance expenses while maintaining consistent heating performance.
What Makes It Durable?
The silicon nitride construction resists oxidation and chemical corrosion, enabling 90,000 hours of operation in harsh environments - 3x longer than ceramic alternatives.
