Description
Enhance furnace efficiency and longevity with our reliable hot surface ignitor, reducing downtime and maintenance costs.
Furnace Operators – Boost Ignition Reliability with Long-Life Ignitor
Rapid Heating
Achieves up to 1000°C in just 10 seconds, ensuring quick and efficient ignition.
Long Working Life
Possible lifespan of up to 10 years or 90,000 hours, minimizing replacement frequency.
High Insulation
Ensures safe operation by preventing electrical leakage and enhancing durability.
Customized Resistance
Tailored voltage and flange options to meet specific furnace requirements.
Features

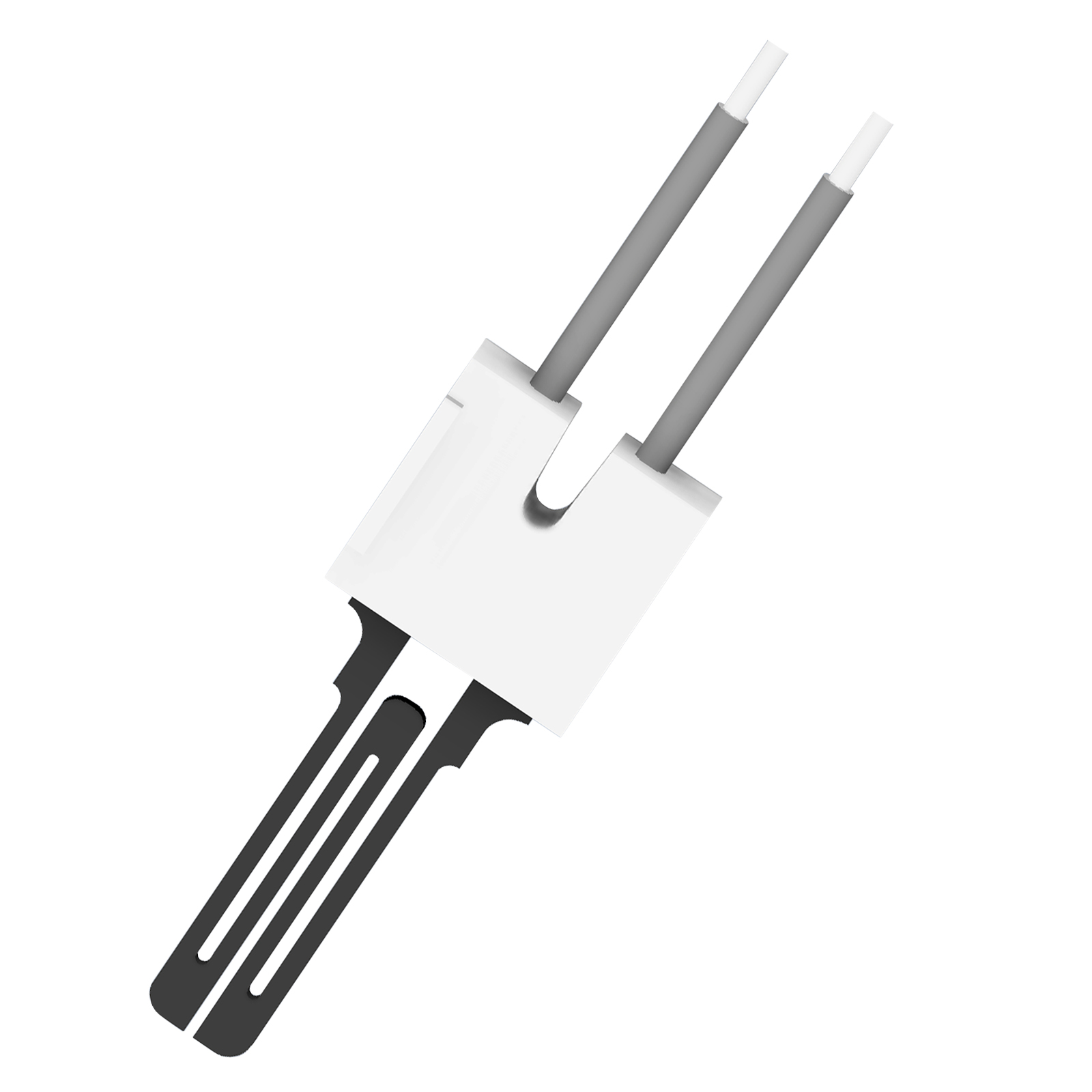

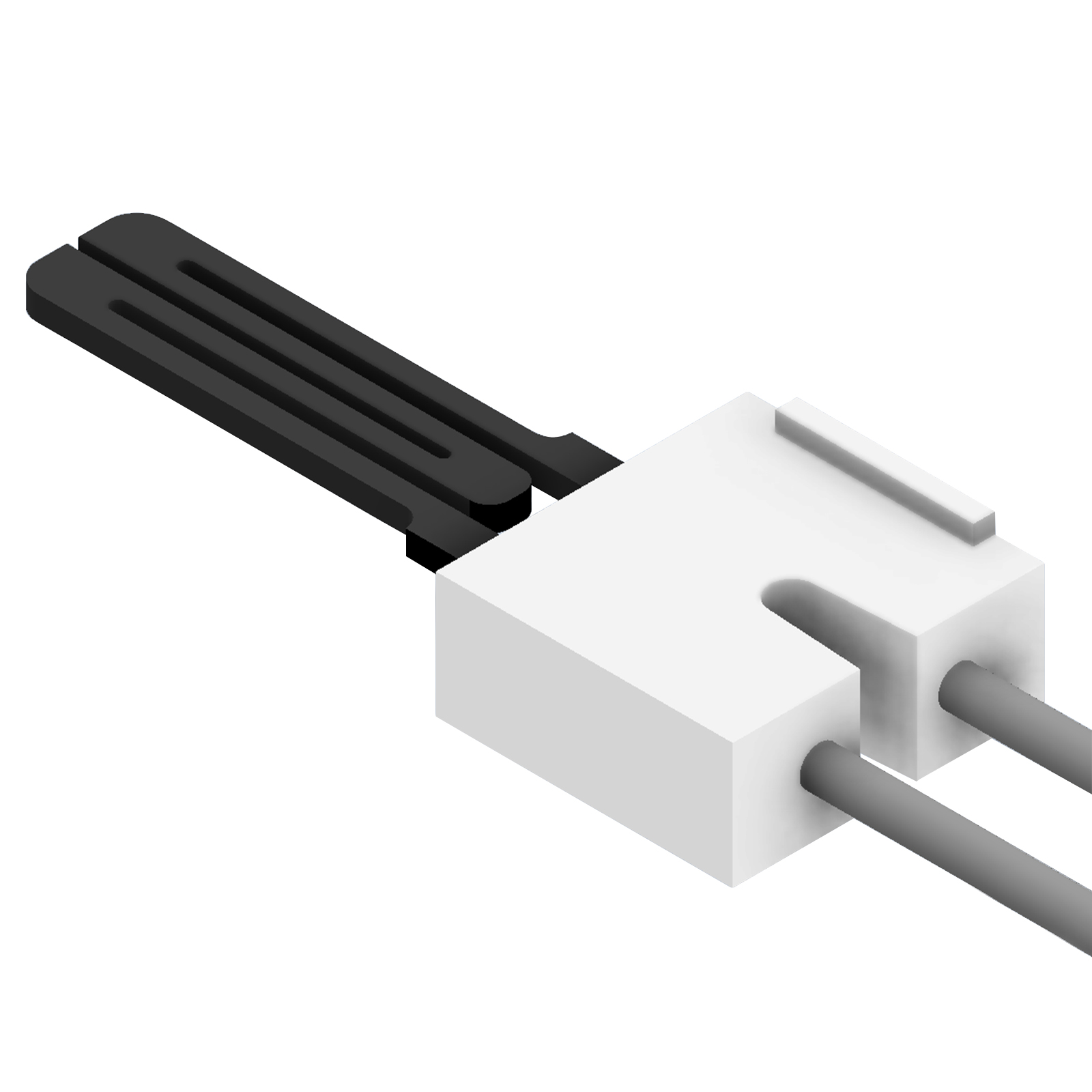

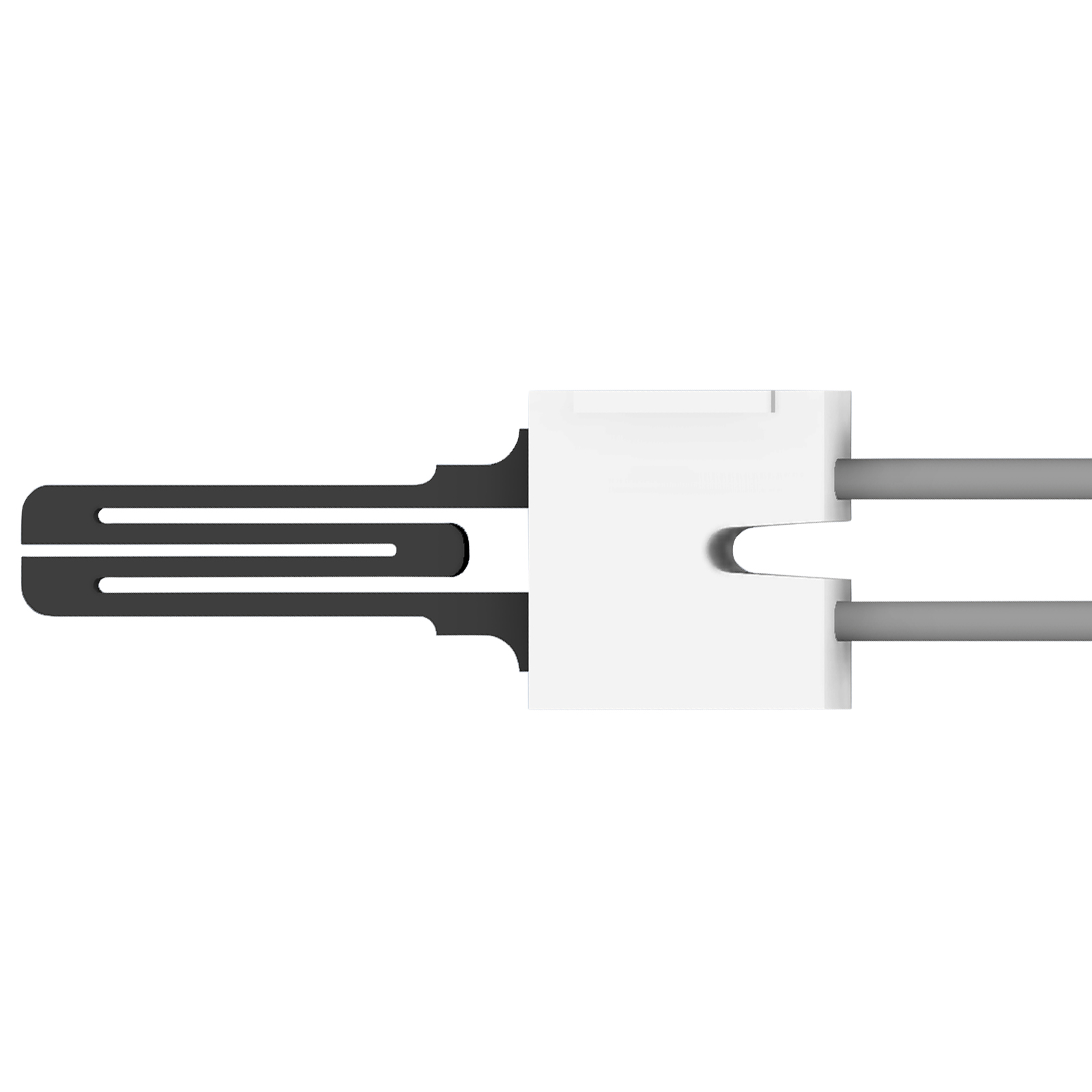

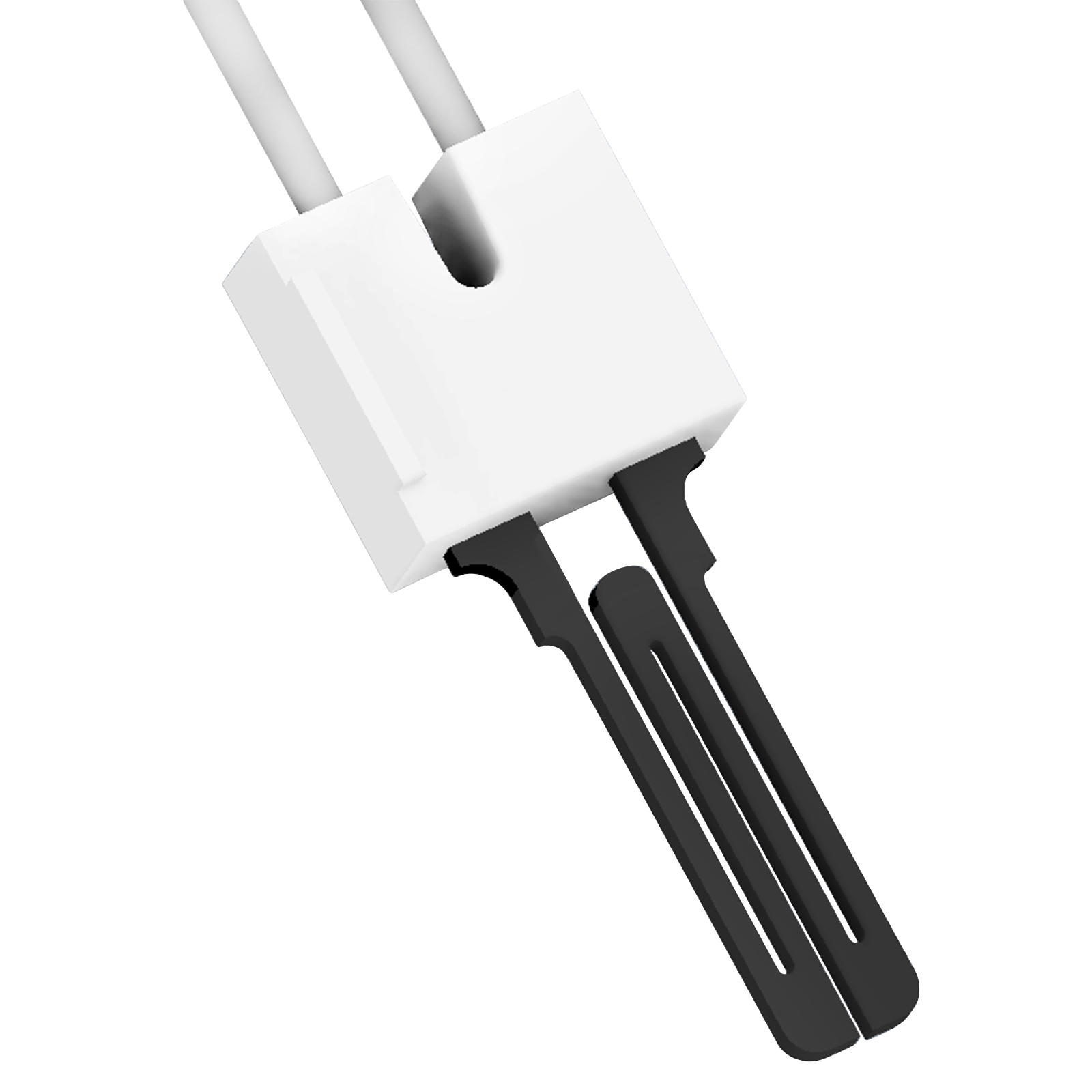

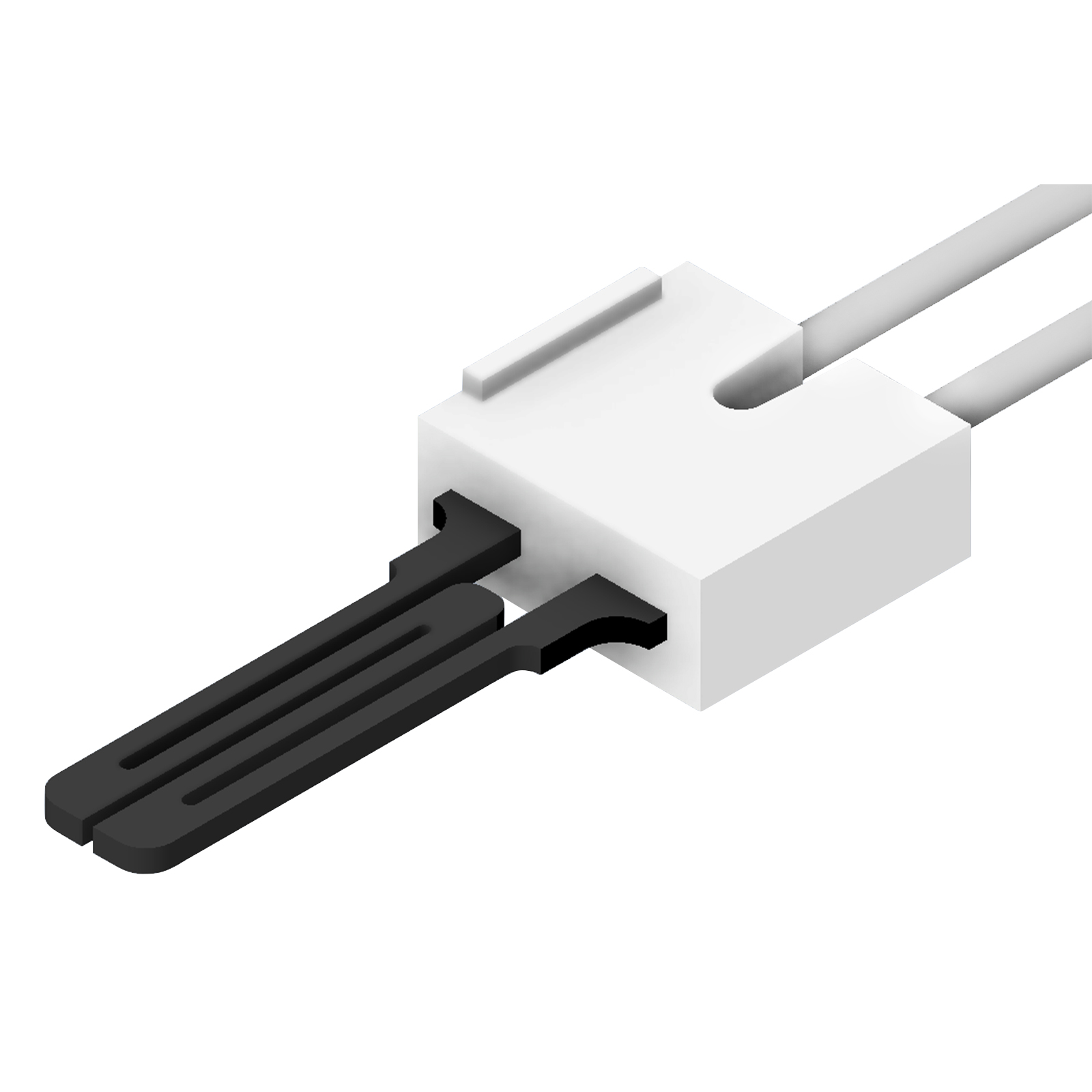

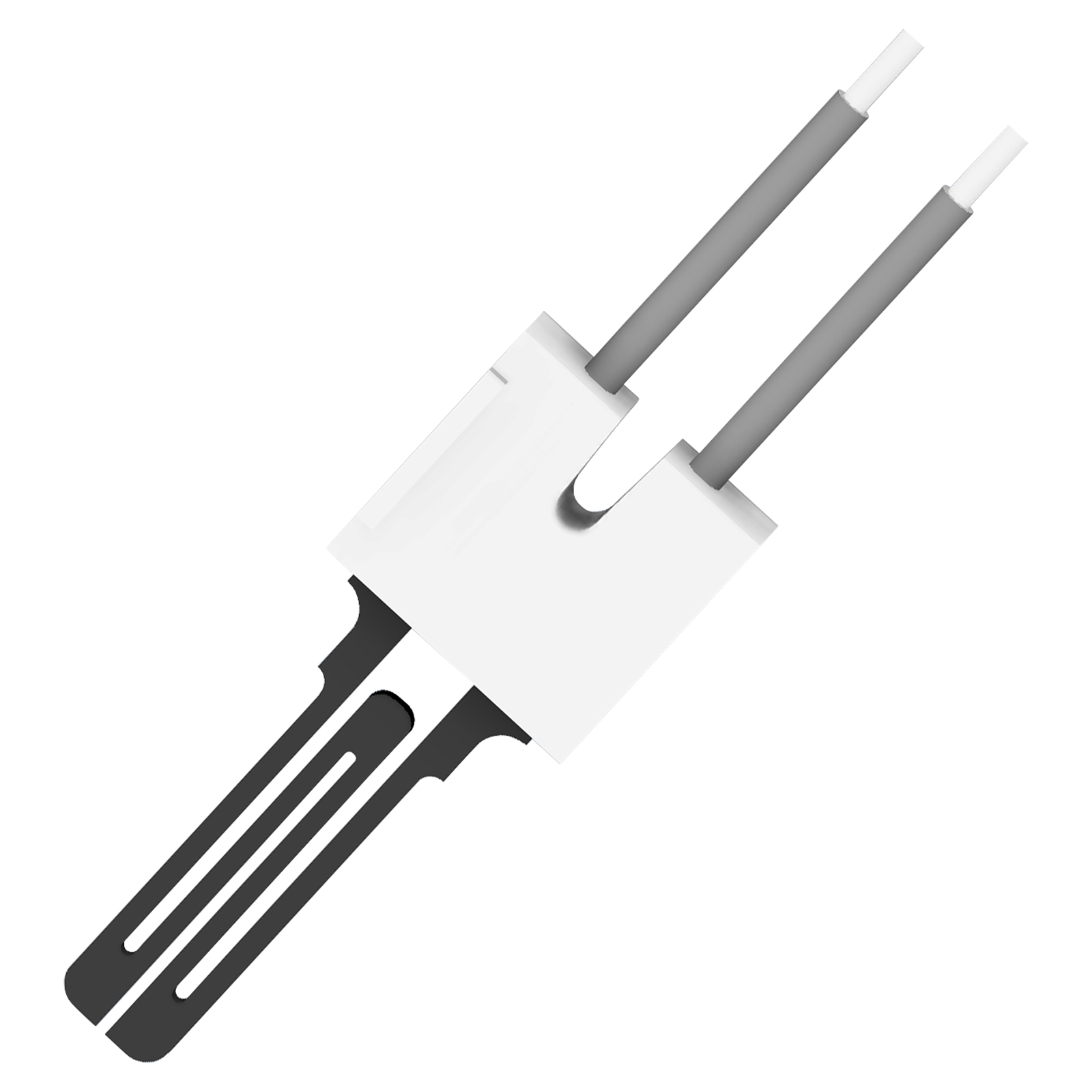

The HF240716 Silicon Nitride Igniter Hot Surface Ignitor is crafted from high-quality Silicon Nitride (Si3N4) material, known for its exceptional thermal stability and resistance to oxidation and chemicals. It operates within a temperature range of 1100~1300°C (2012~2372°F) and can reach up to 1000°C in just 10 seconds. The ignitor is available with customized voltage and flange options, including ceramic, stainless steel, copper, or tailored designs, to suit diverse furnace applications.
Benefits
By incorporating our hot surface ignitor into your furnace system, you can expect a significant boost in ignition efficiency, leading to faster start-ups and reduced energy consumption. Its long working life ensures minimal downtime and maintenance costs, while the high insulation property guarantees safe and reliable operation. The customized resistance feature allows for seamless integration into various furnace setups, enhancing overall system performance.
Use Cases
Our hot surface ignitor is ideally suited for a wide range of furnace applications, including industrial heating, kiln operations, and other high-temperature environments. It is particularly beneficial in scenarios where rapid ignition and long-term reliability are crucial, such as in continuous production processes. The ignitor’s resistance to oxidation and chemicals makes it a durable choice for harsh operating conditions, ensuring consistent performance over extended periods.
| Name | Silicon Nitride Igniter Hot Surface Ignitor | |
| Model | HF240716 | |
| Material | Silicon Nitride (Si3N4) | |
| Voltage | Customized | |
| Power | ||
| Flange | Ceramic/Stainless Steel/Copper/Customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact us for confirmation. | |
| Packing | Carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications Customized |
||
| ·Rapid heating: Heating faster. up to 1000°c in 10 seconds ·Range of temperature:1100~1300 °C/2012~2372℉ ·Small size / High watt density: High-watt density discharge allow high thermal efficiency. ·Long working life:10 years possible,90,000 hours ·High insulation ·Direct water and kerosene heating ·Vacuum environment ·Oxidation and chemical resistance |
||
Why Choose Our Hot Surface Ignitor?
Our hot surface ignitor stands out for its rapid heating capability, achieving up to 1000°C in just 10 seconds, ensuring quick and efficient ignition in furnaces. Its long working life of up to 10 years minimizes replacement frequency, reducing maintenance costs.
Customized Resistance for Diverse Applications
We offer customized voltage and flange options, including ceramic, stainless steel, and copper, to meet specific furnace requirements. This flexibility ensures seamless integration into various furnace setups, enhancing overall system performance.
Reliable Performance in Harsh Conditions
Our ignitor is crafted from high-quality Silicon Nitride material, known for its exceptional thermal stability and resistance to oxidation and chemicals. This makes it a durable choice for harsh operating conditions, ensuring consistent performance over extended periods.
