Description
This igniter for furnace provides cost-effective, reliable ignition solutions for industrial furnaces, reducing downtime and maintenance costs.
Industries – Cut Ignition Costs with Durable Igniter
Rapid Heating
Achieves up to 1000°C in just 10 seconds, boosting efficiency.
Long Working Life
Lasts up to 10 years or 90,000 hours, minimizing replacements.
High Watt Density
Optimizes thermal efficiency with compact design.
Oxidation & Chemical Resistance
Ensures durability in harsh environments.
Features

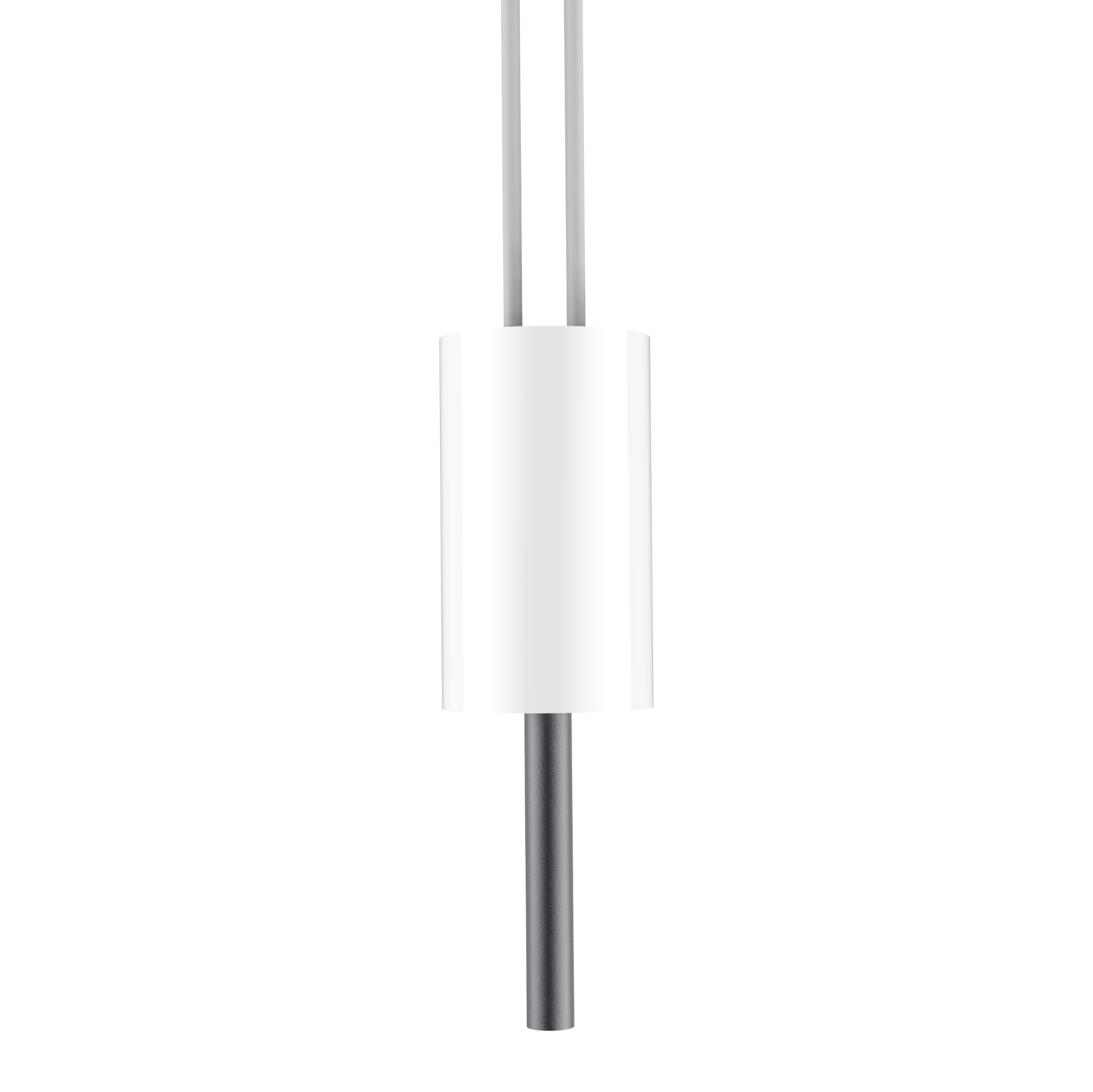

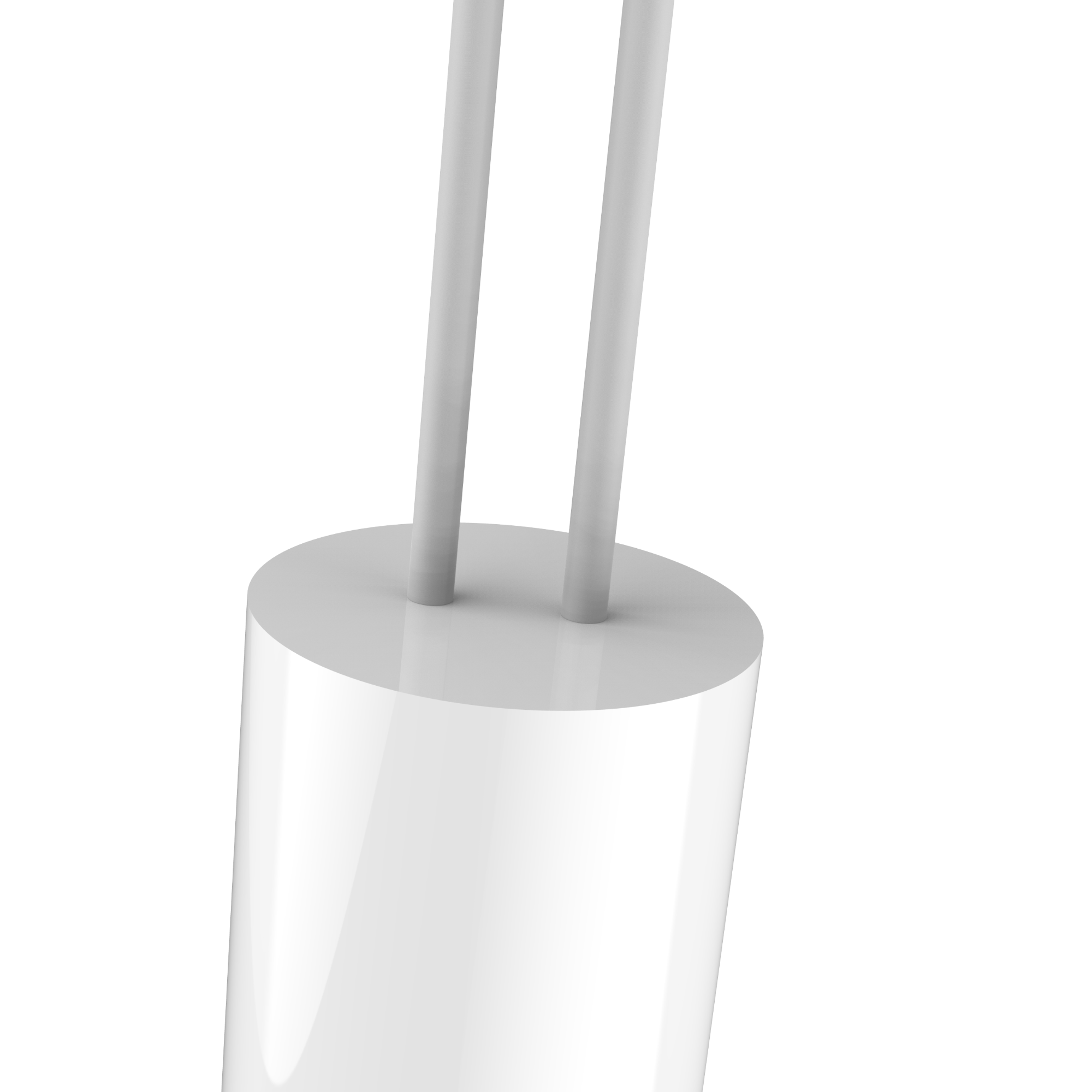

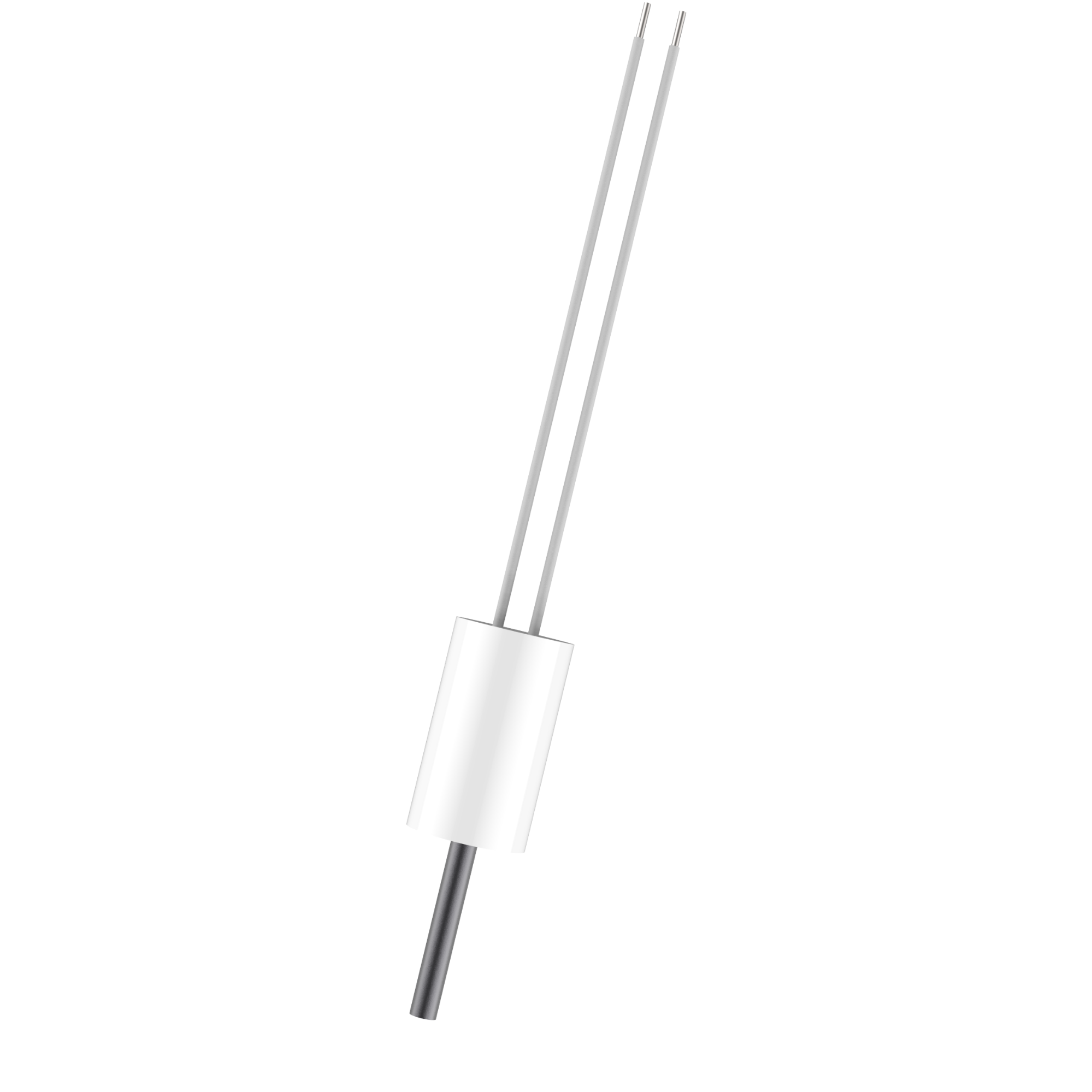

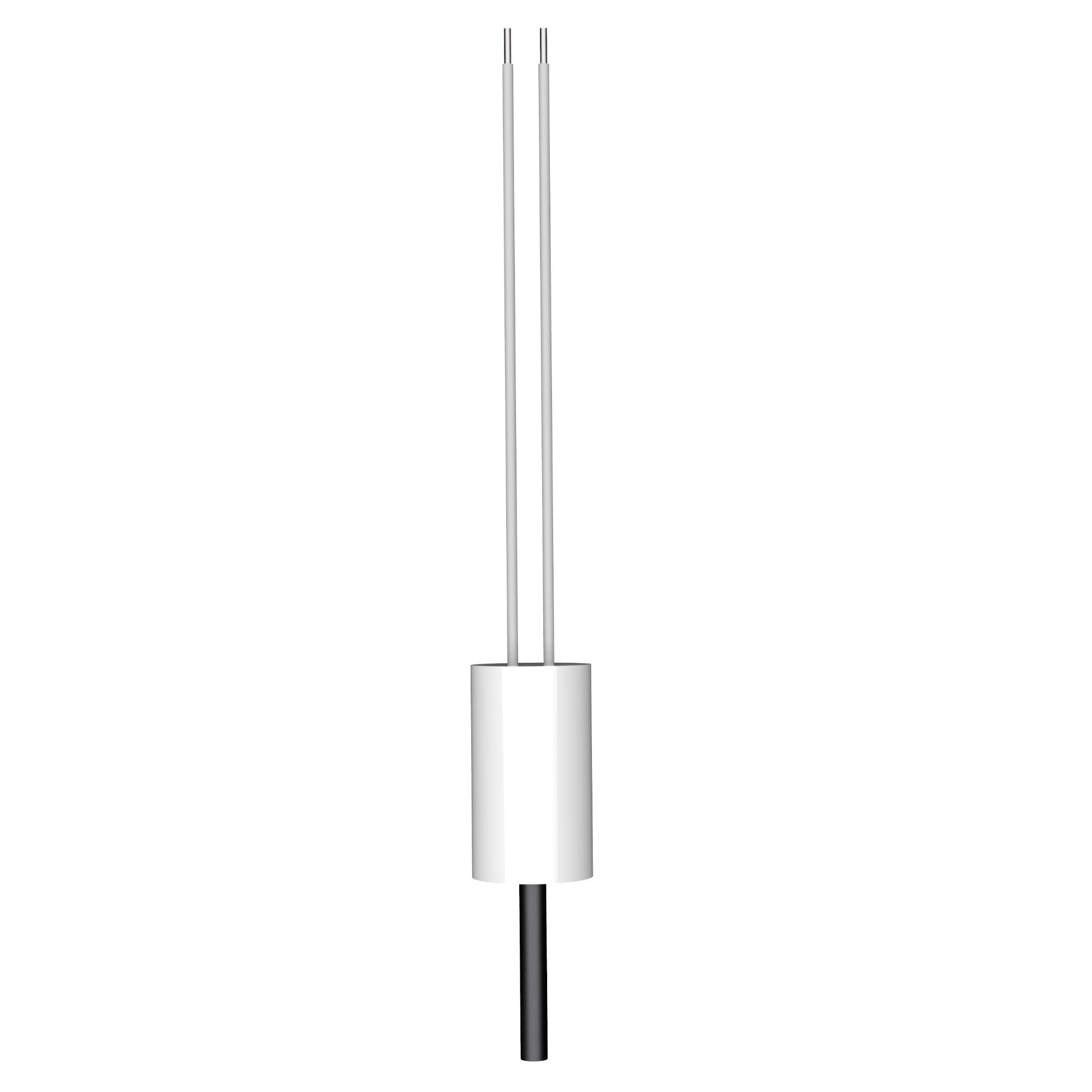

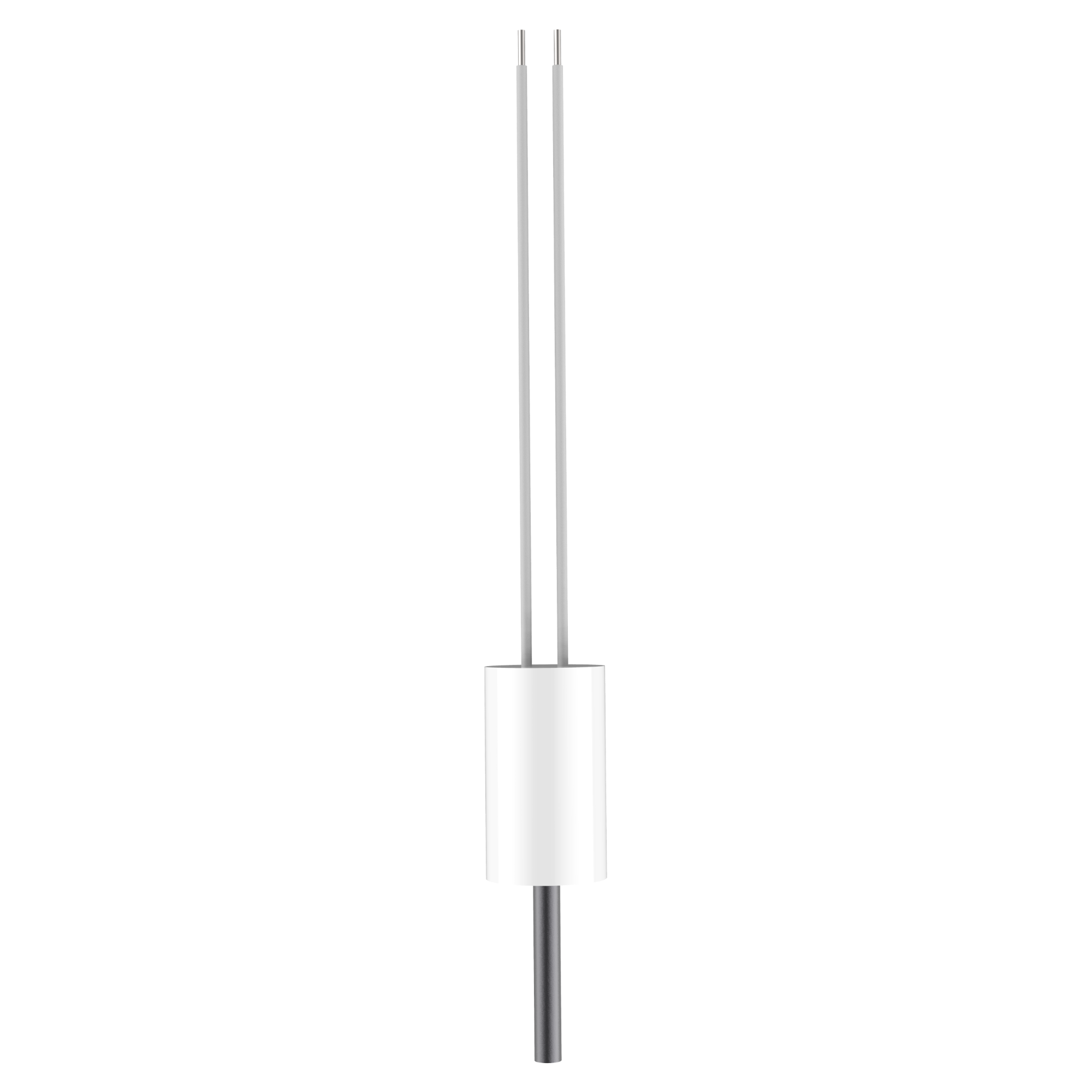

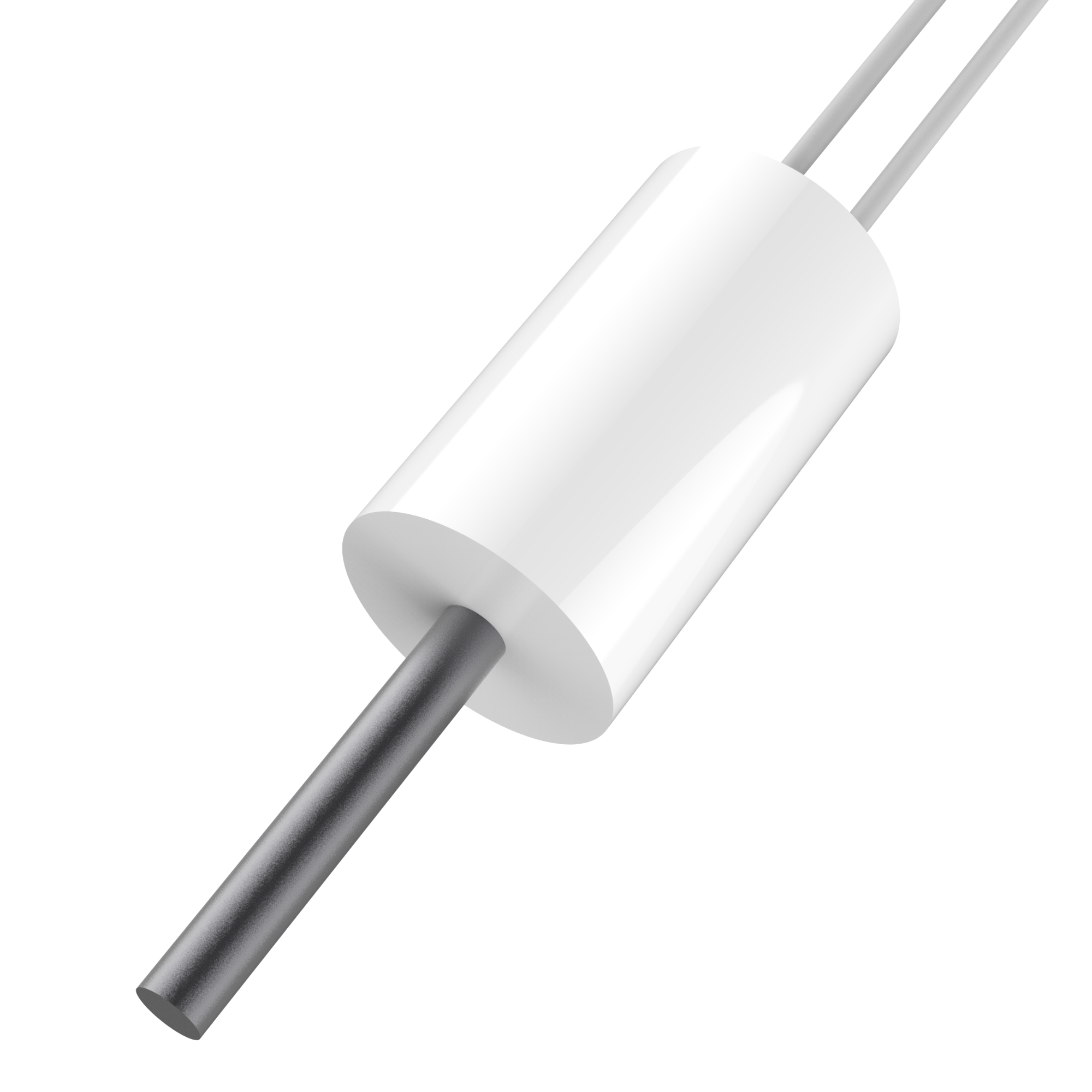

The HF1207 Series Silicon Nitride Igniter features a 24V/90W power rating, with a temperature range of 1100~1300°C (2012~2372°F). It offers customizable flange options (ceramic, stainless steel, copper) and strict quality control under SGS, ISO9001, and Intertek certifications. Available in a compact size (OD: 4.5mm, total length: 65mm), it supports direct water and kerosene heating, vacuum environments, and temperature sensing.
Benefits
Customers benefit from rapid heating, reducing startup time and energy costs. The long lifespan (up to 10 years) minimizes replacement frequency, lowering maintenance expenses. High insulation and chemical resistance ensure reliable performance in demanding industrial settings, while customizable flanges adapt to diverse furnace designs.
Use Cases
This igniter for furnace is ideal for biomass boilers/burners, gas burners/stoves, pellet stoves, medical-scientific equipment, and agricultural heaters. It excels in igniting gas, oil, or pellets, making it a versatile replacement for furnace igniters in industries requiring efficient and durable ignition solutions. Its compatibility with various fuel types and environments enhances operational flexibility.
| Name | Silicon Nitride Igniter | |
| Model | HF1207 Series | |
| Material | Silicon Nitride (Si3N4) | |
| H.S. Code | 8516800000 | |
| Color | black | |
| Voltage | 24V | |
| Power | 90W | |
| Flange | Ceramic/Stainless Steel/copper/customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact for confirmation. | |
| Packing | carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications | ||
| Biomass boiler/burner | Pellet burners | |
| Gas burner/stove | Pellet boiler | |
| Ignition of gas or oil | Pellet burner | |
| Pellet Stove | Pellet BBQ grill | |
| Stove fireplace | Medical-Scientific | |
| Wood pellet stove | Heaters-Agricultural | |
| Particle Burning | Spark Igniters | |
| Fuel cells | EV heating | |
| Gas appliances | Glow plug | |
| Petroleum equipment | Cabin heater | |
| Soldering iron | Gas sensor | |
| gas furnaces, | DPF/Catalyst | |
| gas boiler | ||
| Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature: 1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life: 10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing |
||
| Model Number | Volatge(V) | Rating power(W) | OD.tube(MM) | Total length (MM) | Length under flange(MM) | Max.OD.flange(MM) |
| HF1207001 | 24 | 90 | 4.5 | 65 | 30 | 20 |
Why Choose This Igniter for Furnace?
This igniter for furnace offers rapid heating (up to 1000°C in 10 seconds) and a 10-year lifespan, reducing replacement costs. It supports customizable flanges and strict quality certifications, ensuring reliability in industrial settings.
How Does It Compare to Furnace Igniter Replacement Options?
Unlike generic replacements, our igniter for furnace provides higher watt density, oxidation resistance, and temperature sensing, making it a superior choice for long-term efficiency and durability.
What Makes It Cost-Effective?
By minimizing downtime and maintenance needs, this igniter for furnace lowers total ownership costs. Its compatibility with multiple fuel types and environments further enhances value.
