Description
Our igniter for furnace provides rapid heating, long lifespan, and cost-effective solutions for various burning systems.
Furnace Owners – Solve Ignition Issues Cost-Effectively
Rapid Heating
Heats up to 1000°C in just 10 seconds, ensuring quick ignition.
Long Lifespan
Possible 10-year lifespan or 90,000 hours of operation, reducing replacement costs.
High Watt Density
High-watt density discharge allows for high thermal efficiency, optimizing energy use.
Oxidation & Chemical Resistance
Withstands harsh environments, ensuring durability and reliability.
Features

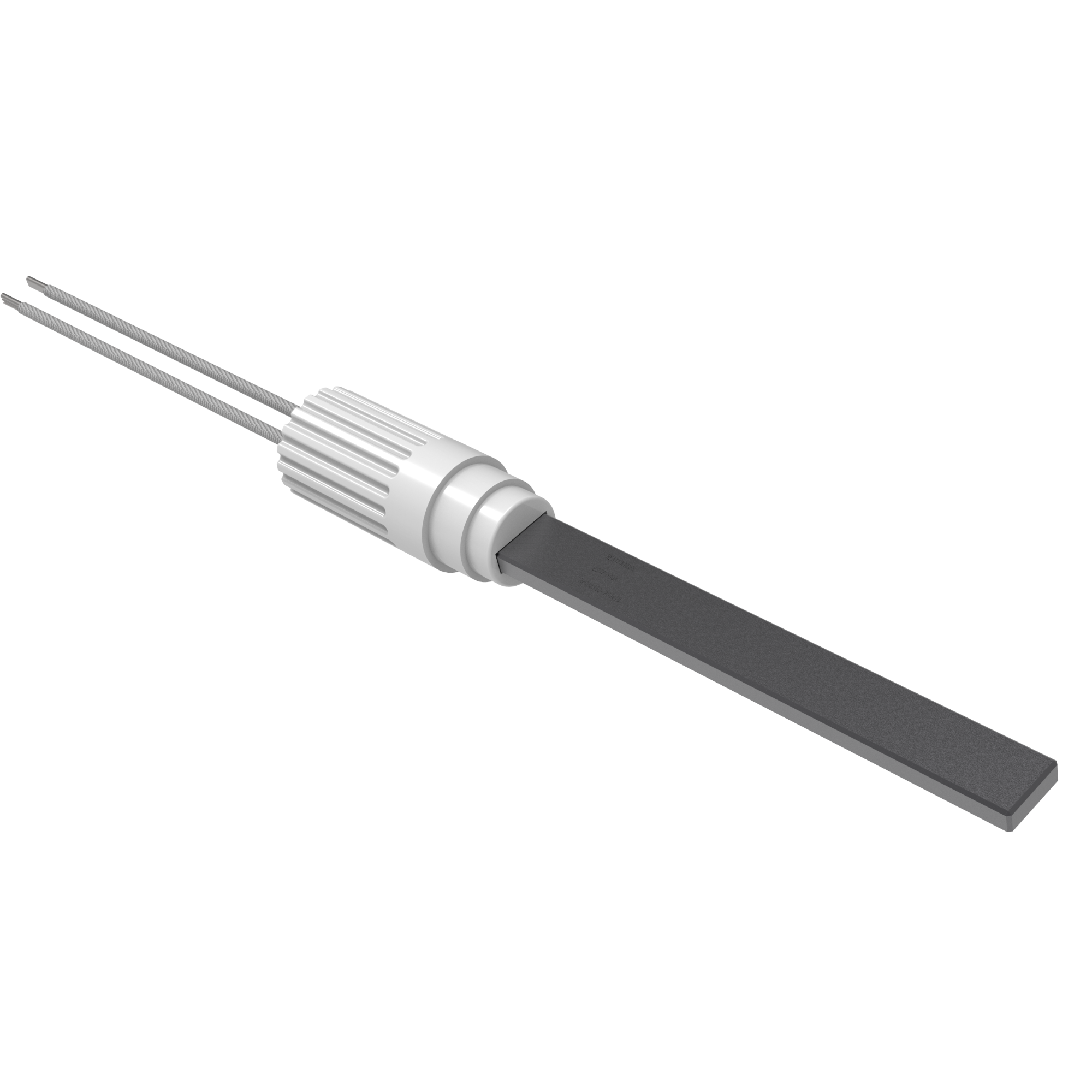

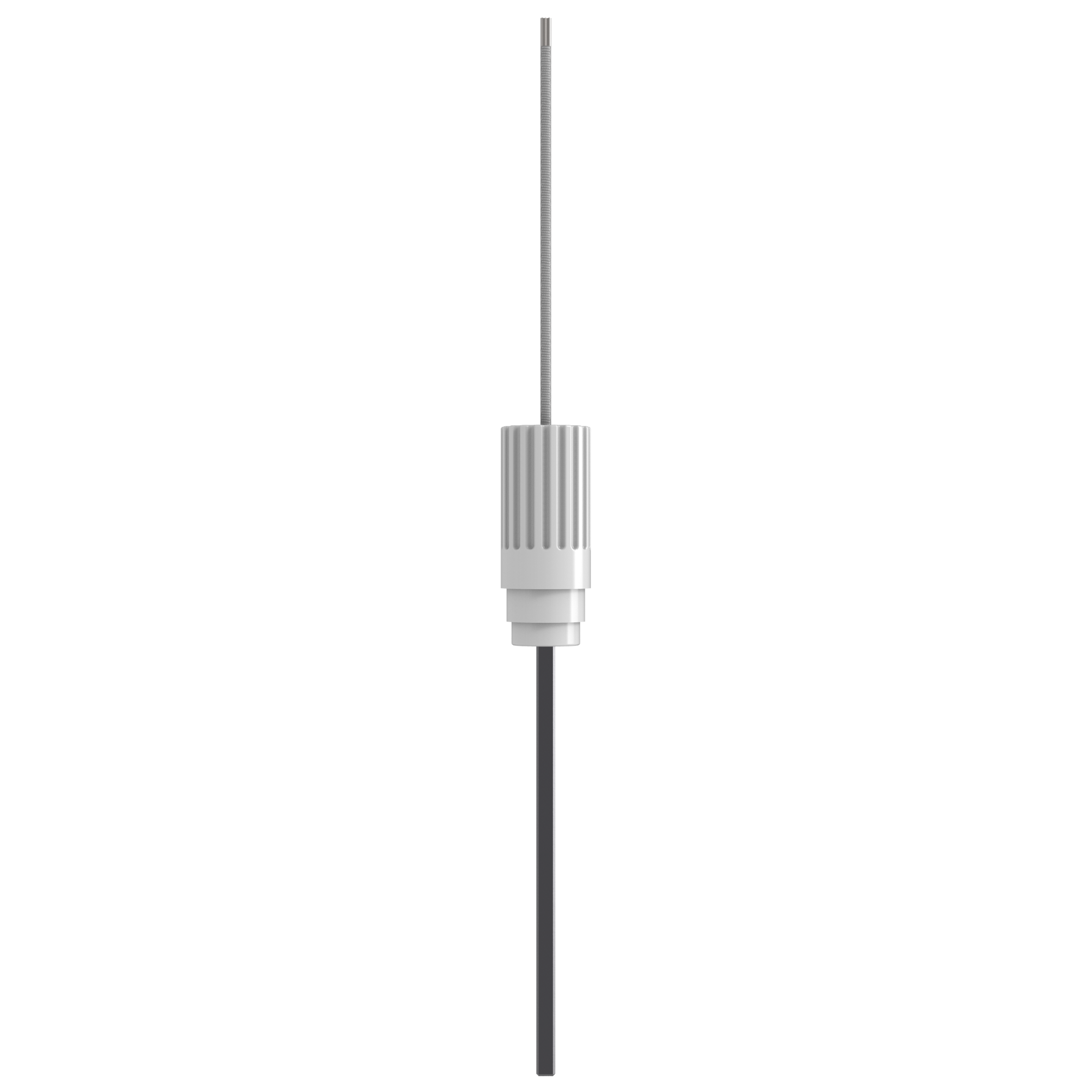

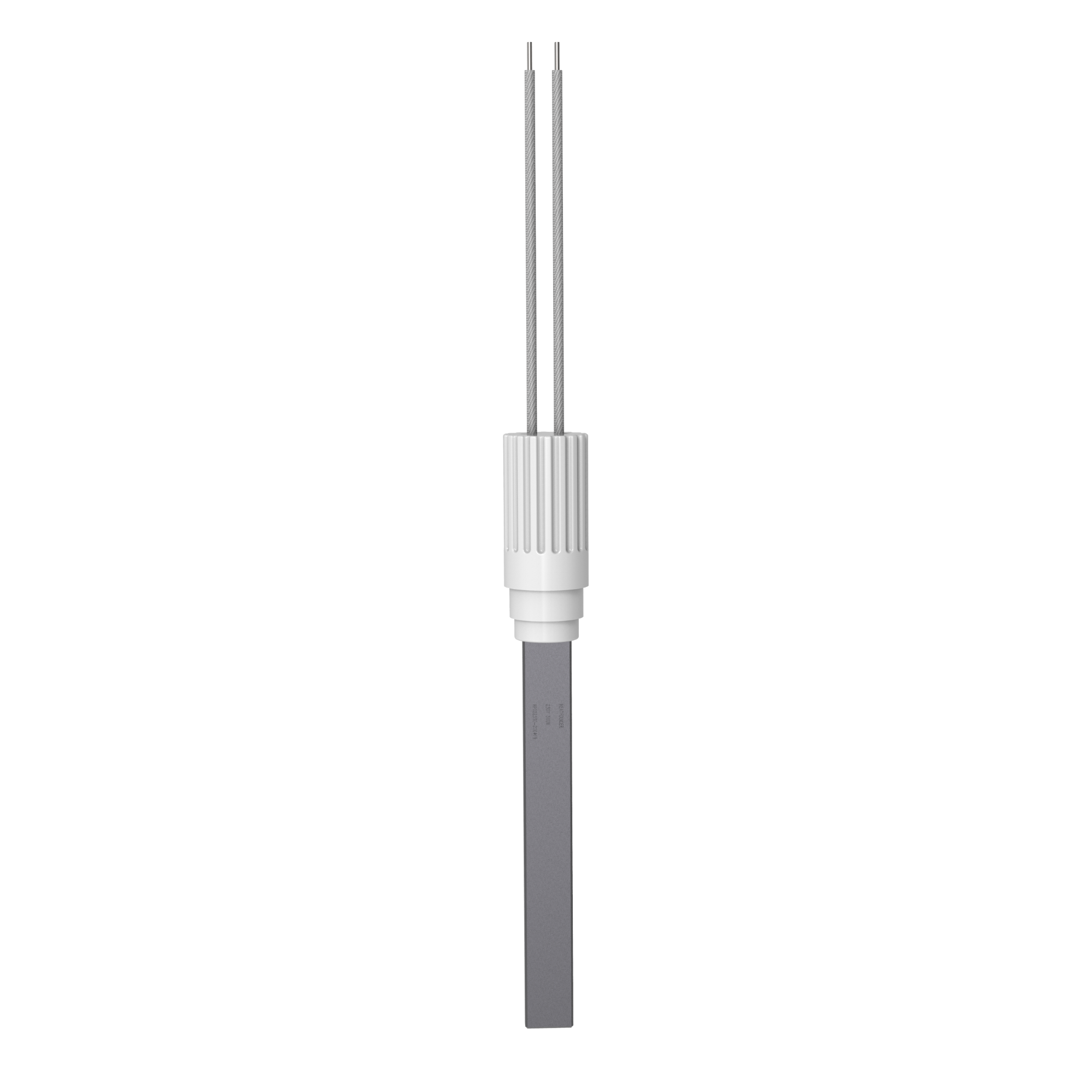

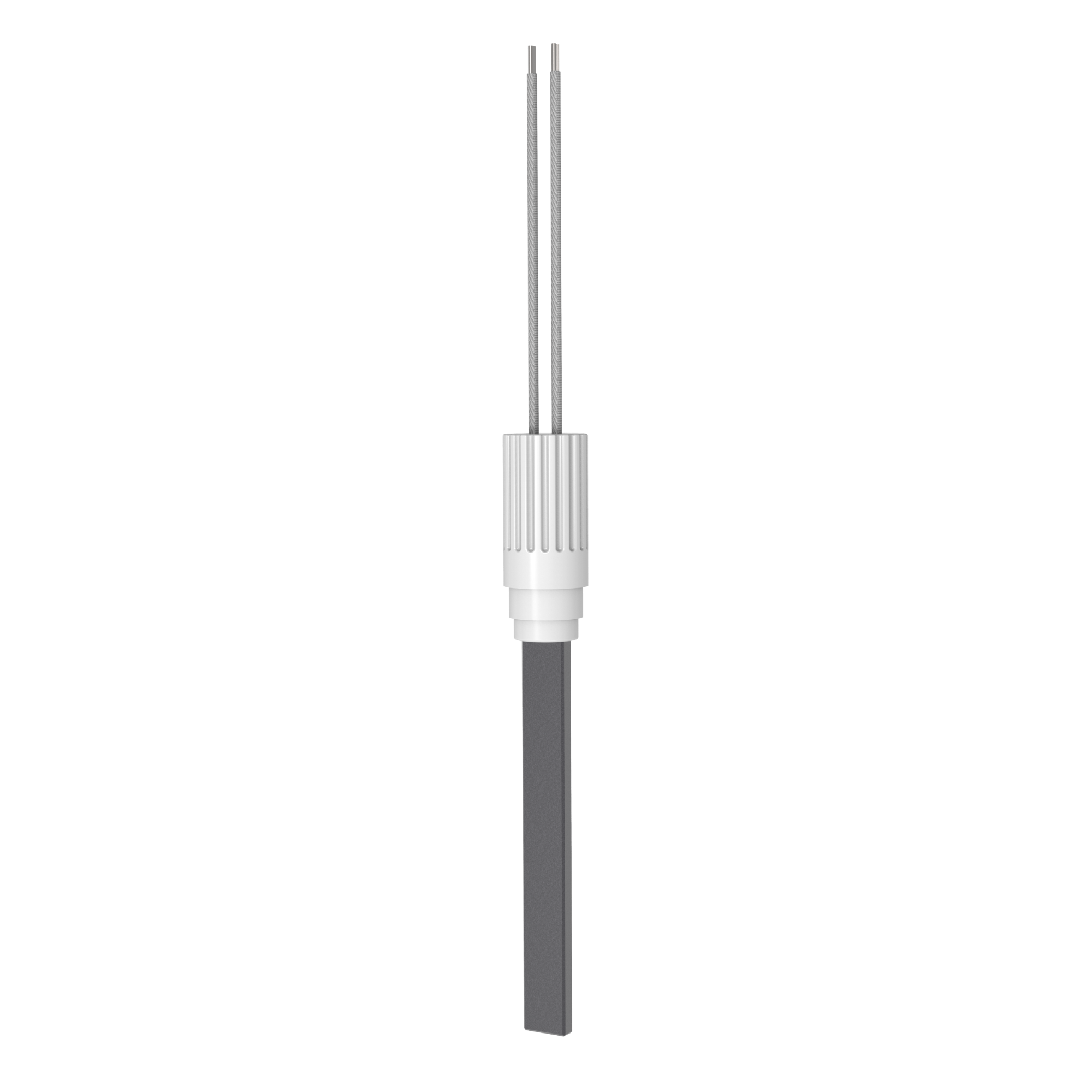

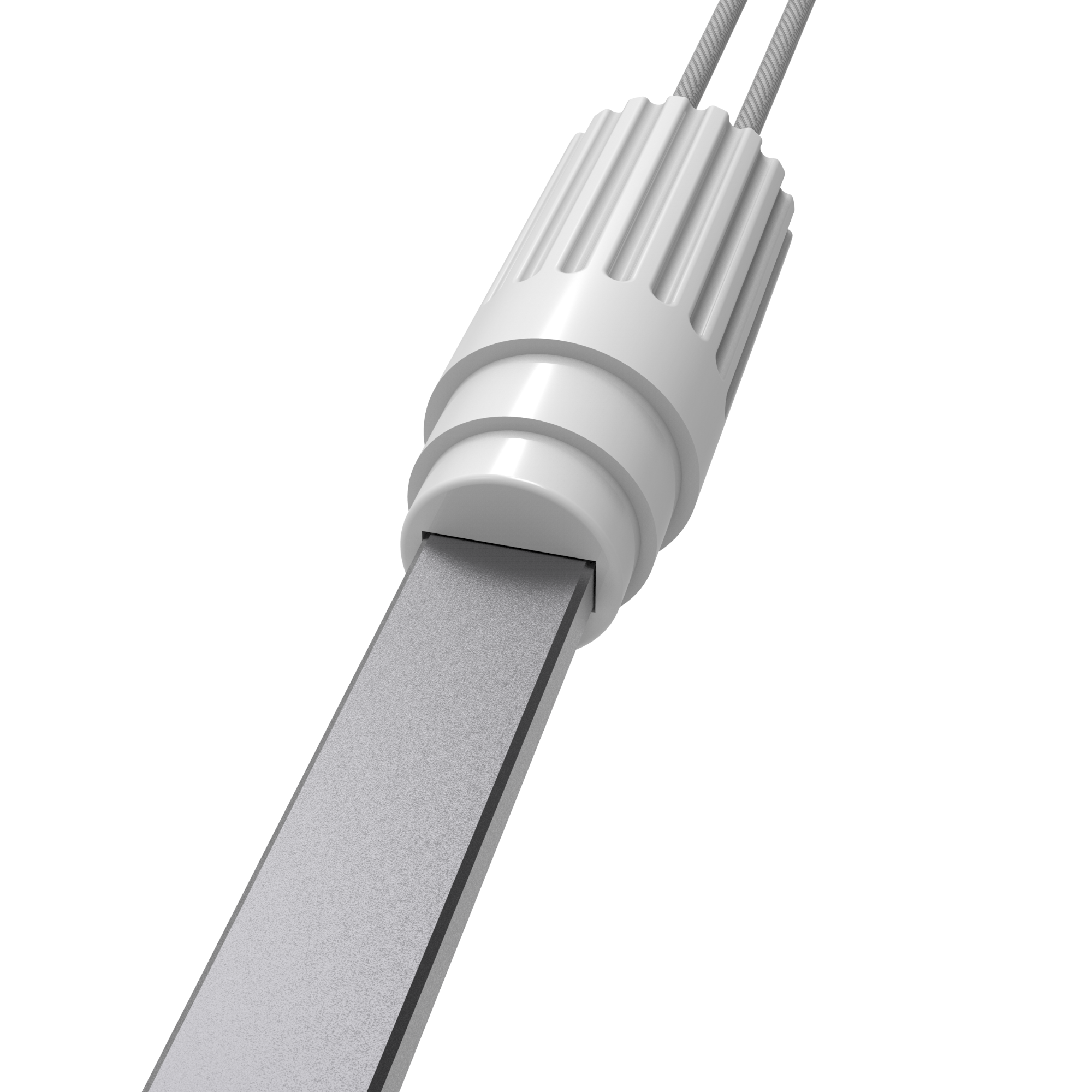

The HF1208 Series Silicon Nitride Igniter is crafted from high-quality Silicon Nitride (Si3N4), offering exceptional durability and thermal stability. It comes in various voltages (24V, 120V, 230V) and power ratings (300W, 400W) to suit different furnace requirements. The igniter features a ceramic, stainless steel, or copper flange, customizable to fit specific applications. With a temperature range of 1100~1300°C, it ensures reliable ignition in various environments.
Benefits
Our igniter for furnace addresses common issues such as won’t ignite problems, providing a cost-effective replacement solution. Its rapid heating capability reduces downtime, enhancing operational efficiency. The long lifespan minimizes maintenance costs, while the high watt density ensures optimal thermal performance. With oxidation and chemical resistance, it guarantees durability in harsh conditions, offering peace of mind to furnace owners.
Use Cases
The HF1208 Series Igniter is ideal for a wide range of applications, including biomass boilers/burners, pellet burners, gas burners/stoves, and pellet boilers. It is also suitable for igniting gas or oil, pellet stoves, BBQ grills, stove fireplaces, medical-scientific equipment, wood pellet stoves, heaters-agricultural systems, particle burning, spark igniters, fuel cells, EV heating, gas appliances, glow plugs, petroleum equipment, cabin heaters, soldering irons, gas sensors, gas furnaces, and DPF/Catalyst systems. Its versatility makes it a valuable addition to any furnace system.
| Name | Silicon Nitride Igniter | |
| Model | HF1208 Series | |
| Material | Silicon Nitride (Si3N4) | |
| H.S. Code | 8516800000 | |
| Color | black | |
| Voltage | 24V 120V 230V | |
| Power | 300W 400W | |
| Flange | Ceramic/Stainless Steel/copper/customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact for confirmation. | |
| Packing | carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications | ||
| Biomass boiler/burner | Pellet burners | |
| Gas burner/stove | Pellet boiler | |
| Ignition of gas or oil | Pellet burner | |
| Pellet Stove | Pellet BBQ grill | |
| Stove fireplace | Medical-Scientific | |
| Wood pellet stove | Heaters-Agricultural | |
| Particle Burning | Spark Igniters | |
| Fuel cells | EV heating | |
| Gas appliances | Glow plug | |
| Petroleum equipment | Cabin heater | |
| Soldering iron | Gas sensor | |
| gas furnaces, | DPF/Catalyst | |
| gas boiler | ||
| Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature: 1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life: 10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing |
||
| Model Number | Voltage(V) | Rating power(W) | Width(MM) | Total length Width(MM) | Length under flange(MM) | Length of Hot Zone(MM) | Max.OD.flange(MM) |
| HF1208D01 | 230 | 300 | 10.8 | 114 | 80 | 60 | G3/8 |
| HF1208D02 | 230 | 400 | 10.8 | 114 | 80 | 60 | G3/8 |
| HF1208D03 | 120 | 400 | 10.8 | 114 | 80 | 60 | G3/8 |
| HF1208D04 | 24 | 400 | 10.8 | 114 | 80 | 60 | G3/8 |
Why Choose Our Igniter for Furnace?
Our igniter for furnace offers rapid heating, long lifespan, and cost-effective solutions. It addresses common ignition issues, ensuring reliable performance in various environments. With customizable options and exceptional durability, it is the ideal choice for furnace owners seeking efficiency and reliability.
How Does Our Igniter Compare to Others?
Unlike traditional igniters, our HF1208 Series features rapid heating, high watt density, and oxidation resistance. Its long lifespan reduces replacement costs, while the customizable flange ensures a perfect fit for your furnace. Experience the difference with our superior igniter for furnace.
What Are the Benefits of Using Our Igniter?
Our igniter for furnace provides quick ignition, reduces downtime, and minimizes maintenance costs. Its high thermal efficiency optimizes energy use, while the durability ensures reliable performance in harsh conditions. Choose our igniter for a cost-effective, long-lasting solution.
