Description
Provide a reliable, high-efficiency ignition solution for gas stoves and ovens, ensuring safety and durability.
Homeowners – Safe Ignition for Gas Stoves
Silicon Nitride Material
High thermal stability and oxidation resistance, extending product lifespan up to 10 years.
Rapid Heating
Reaches up to 1000°C in just 10 seconds, improving cooking efficiency.
High Watt Density
Compact size with high power output, maximizing thermal efficiency.

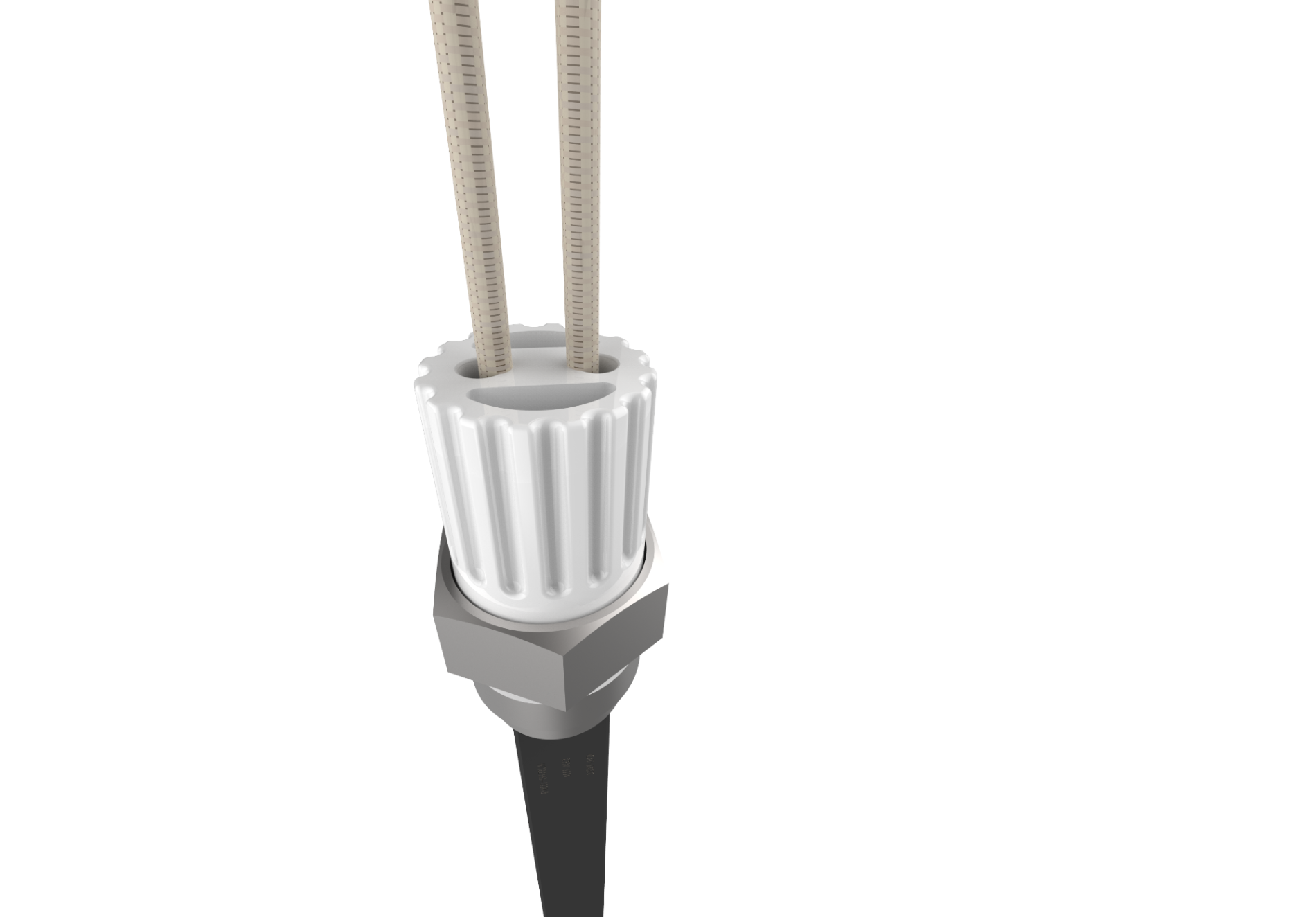

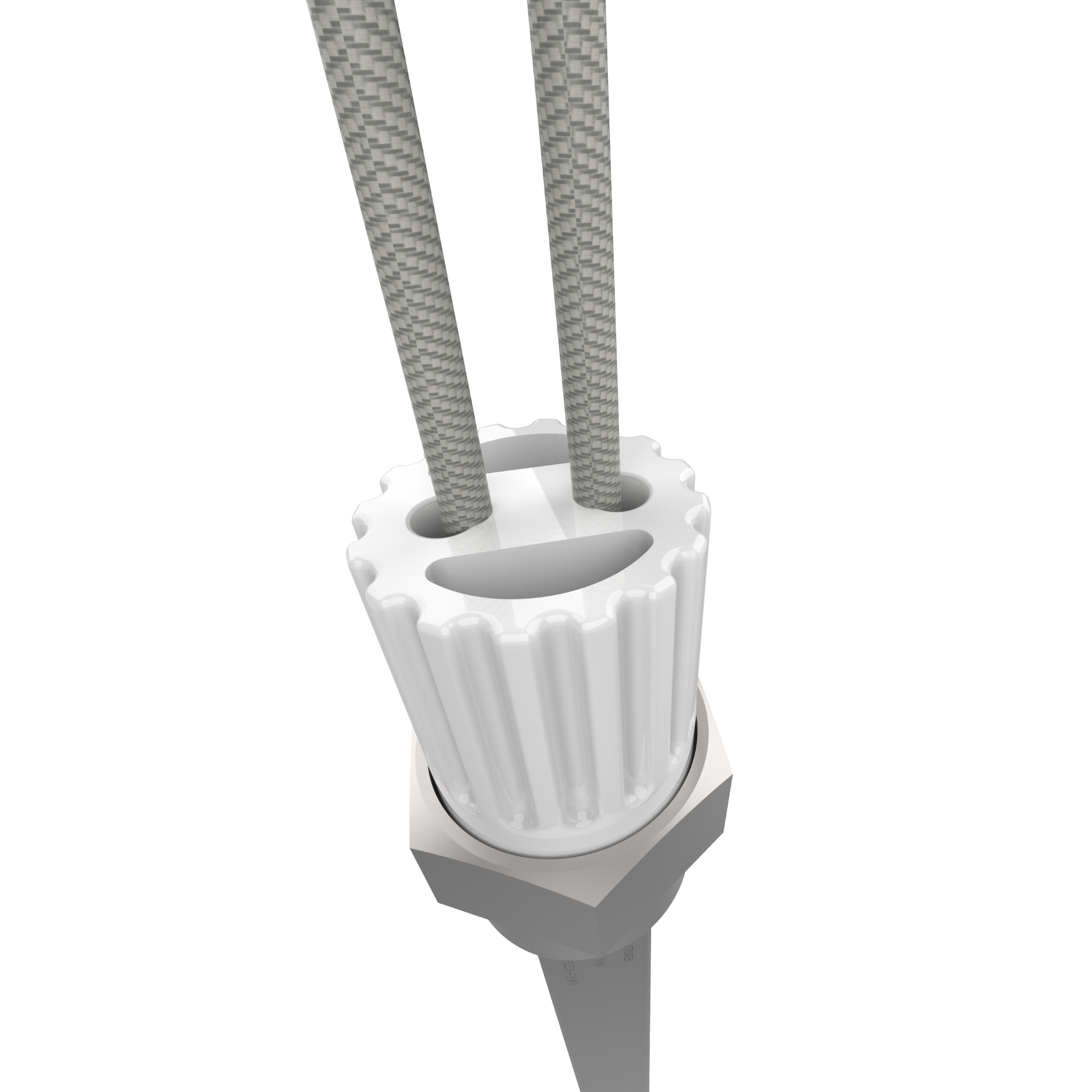

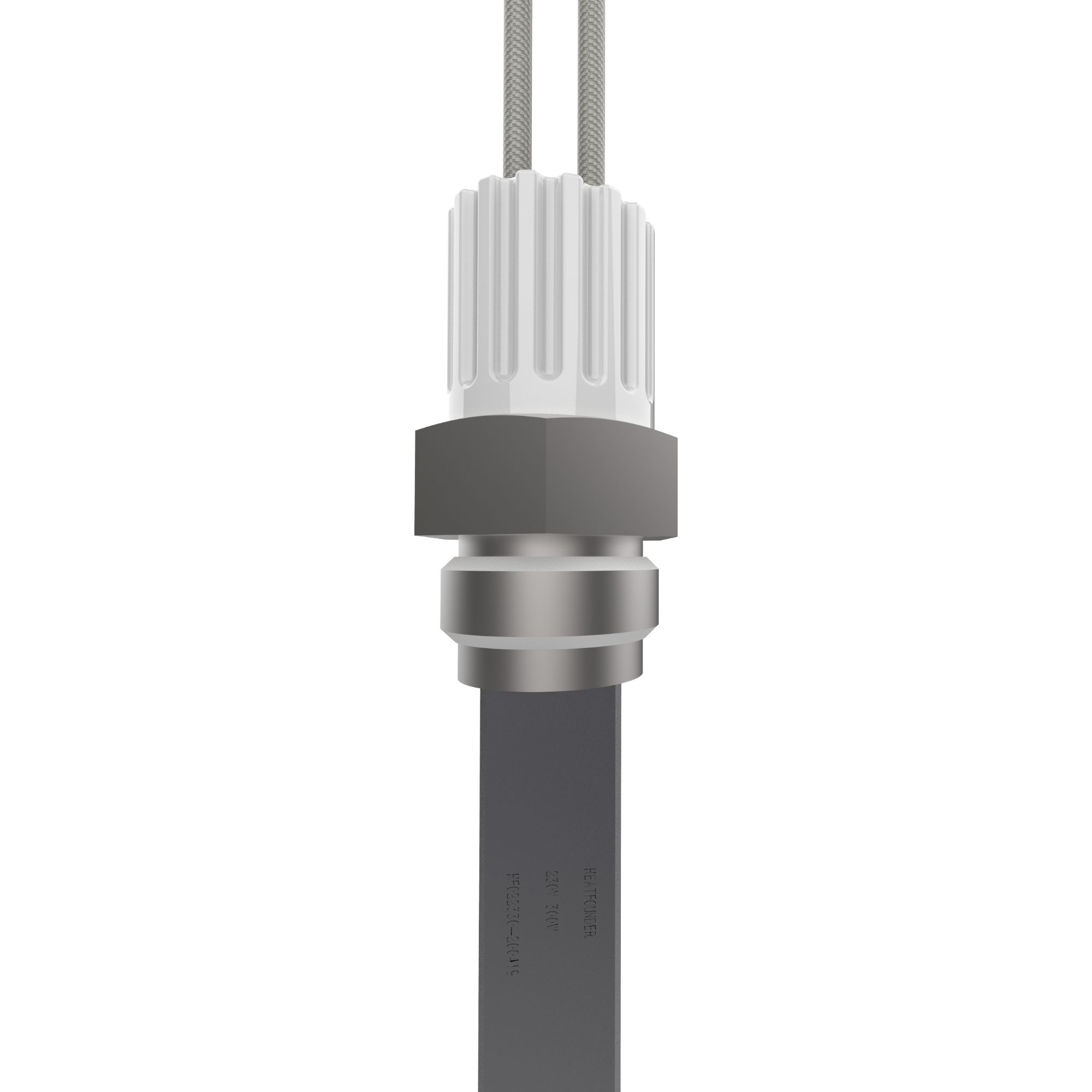

Versatile Flange Options
Customizable flange materials (ceramic, stainless steel, copper) for diverse applications.
Features

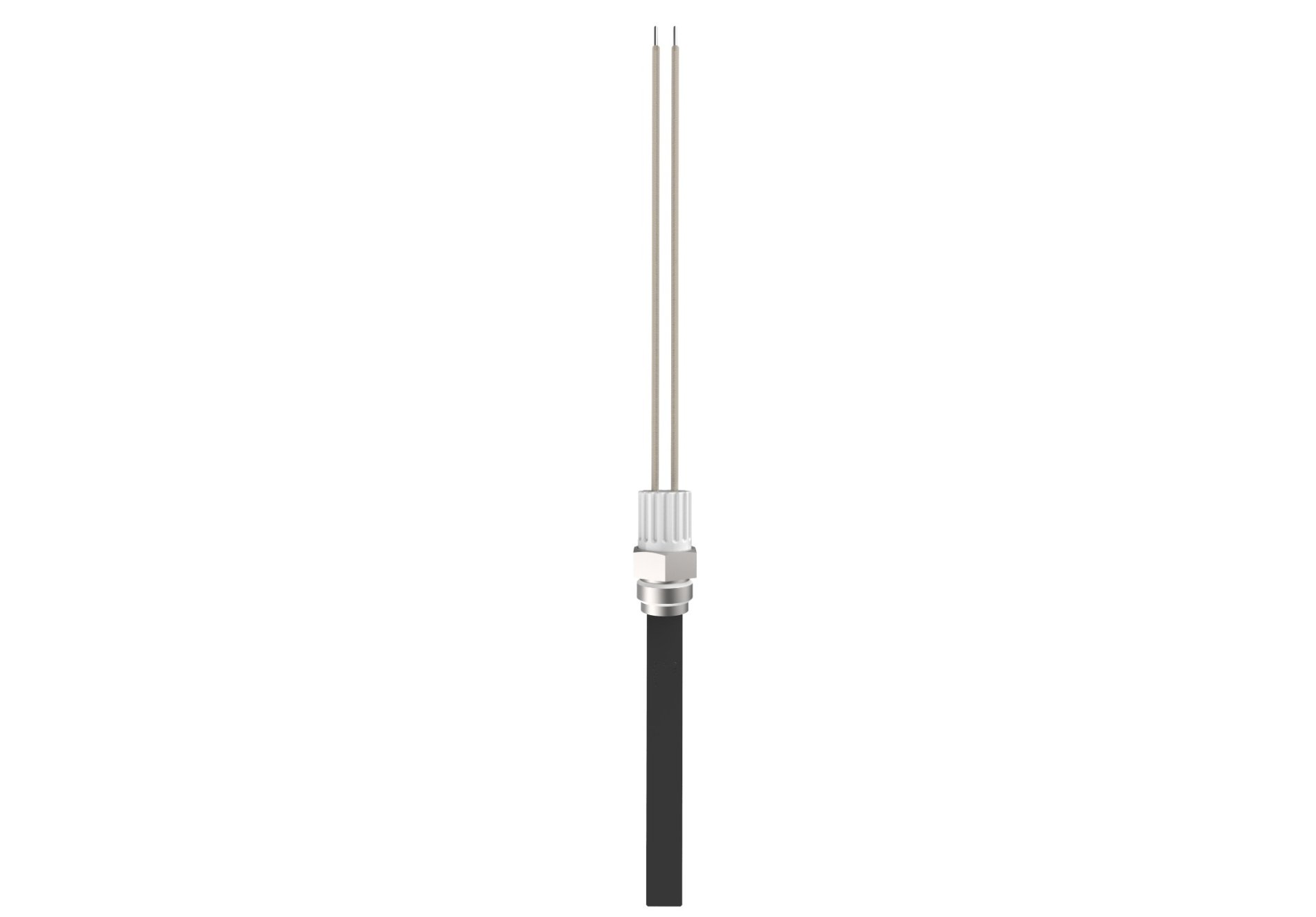

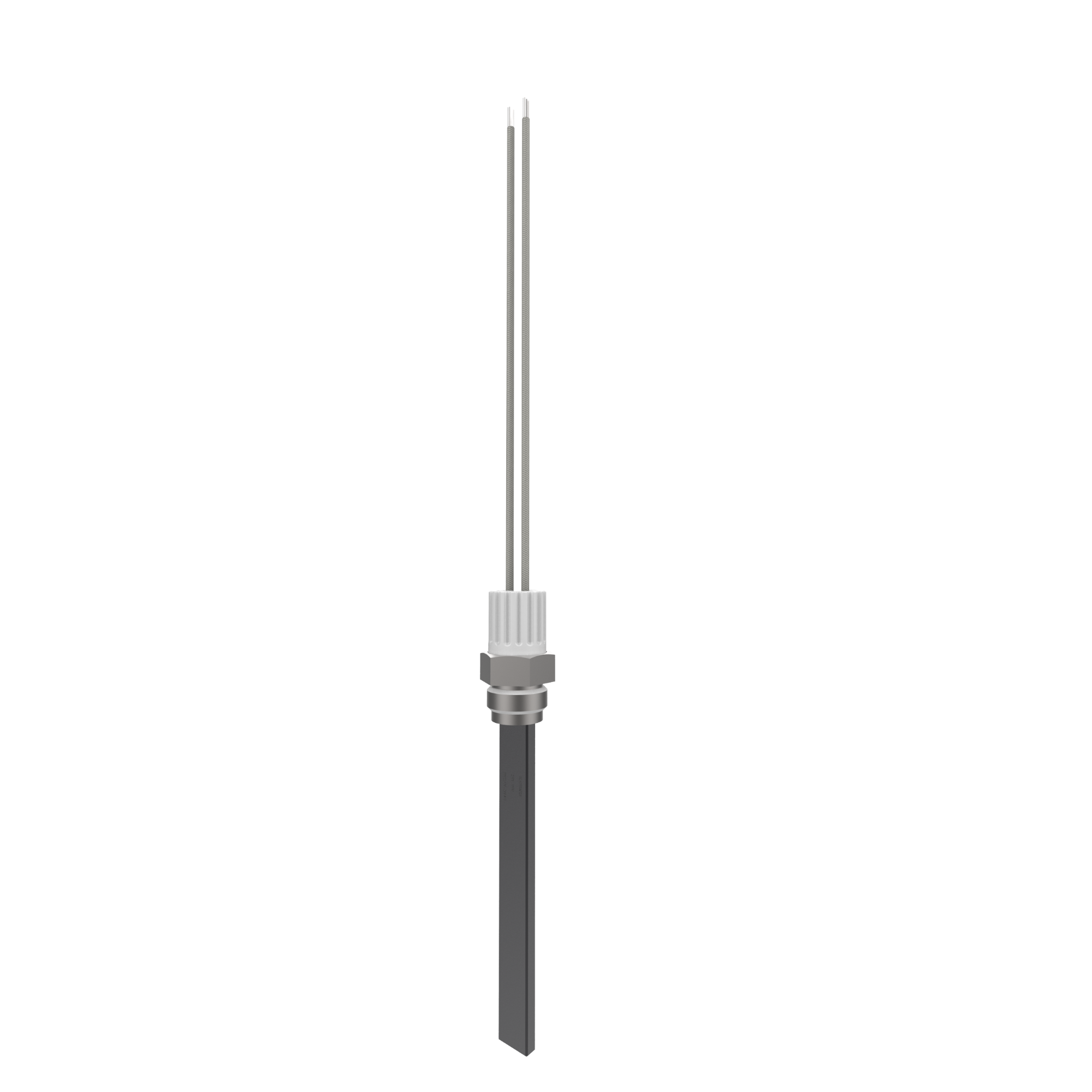

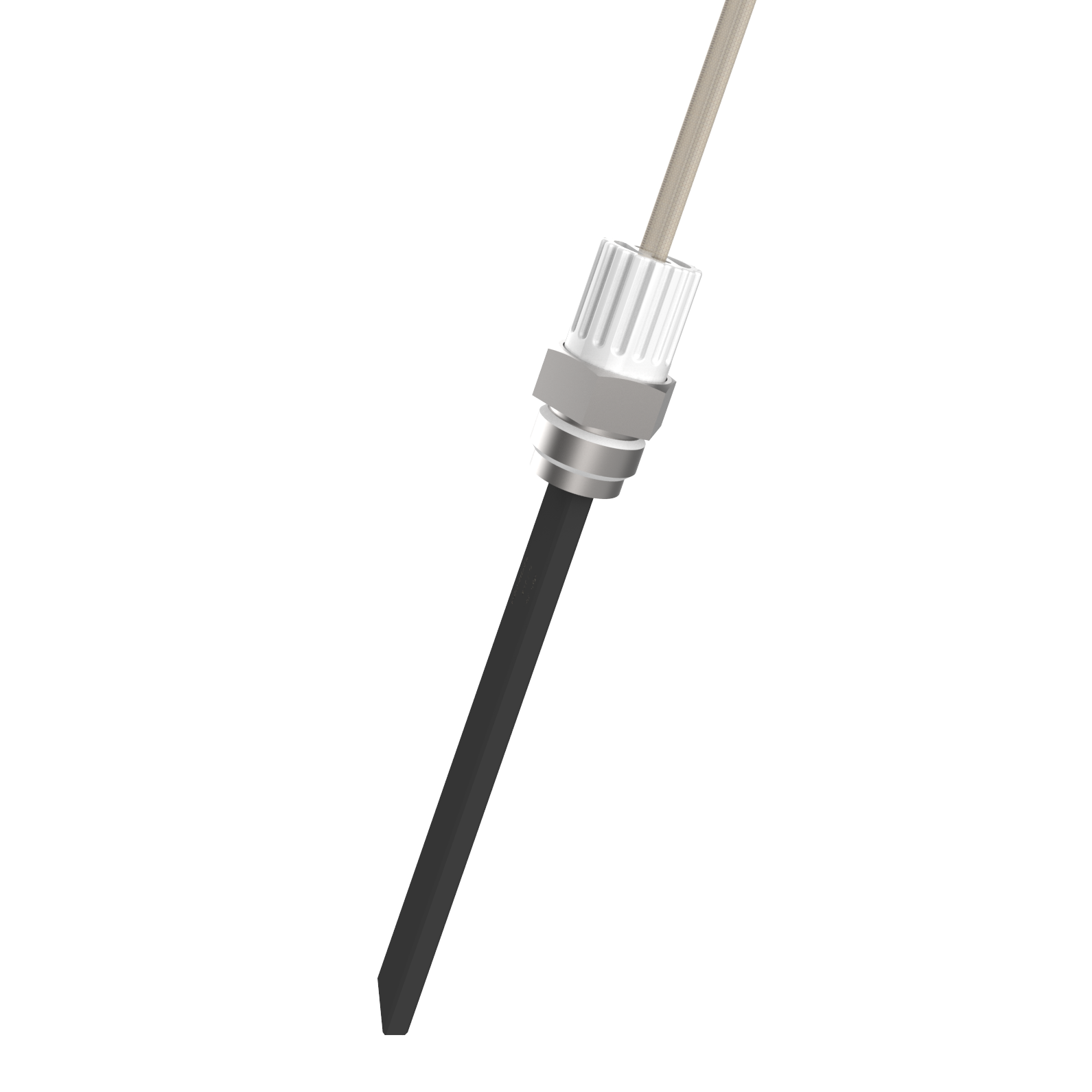

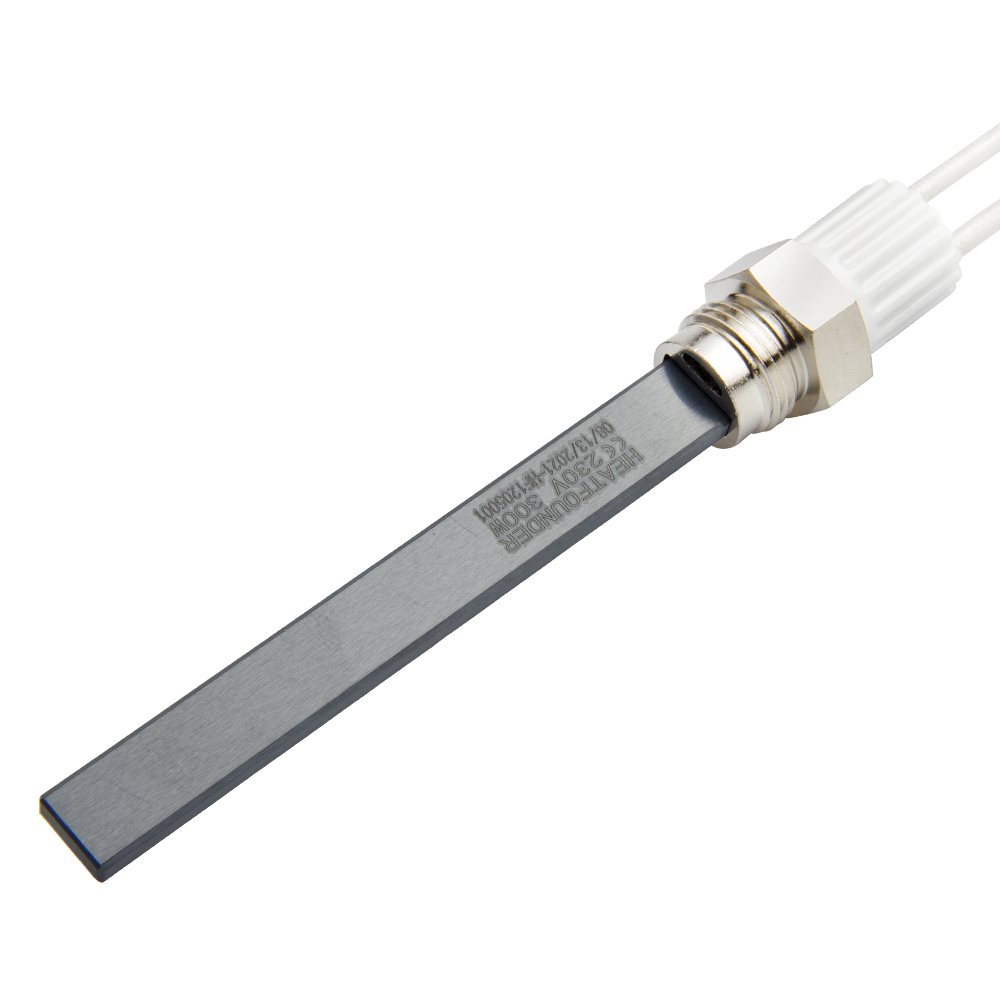

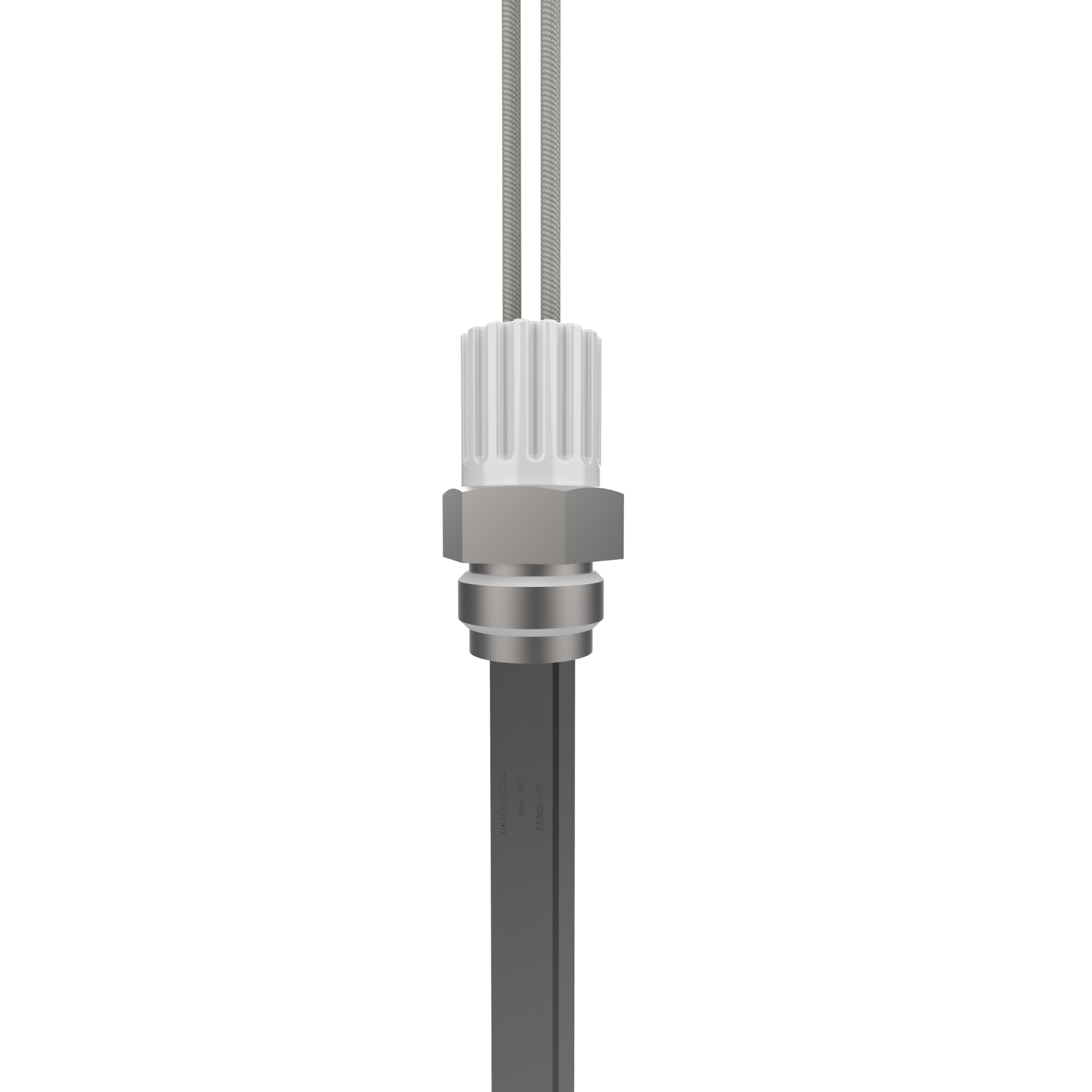

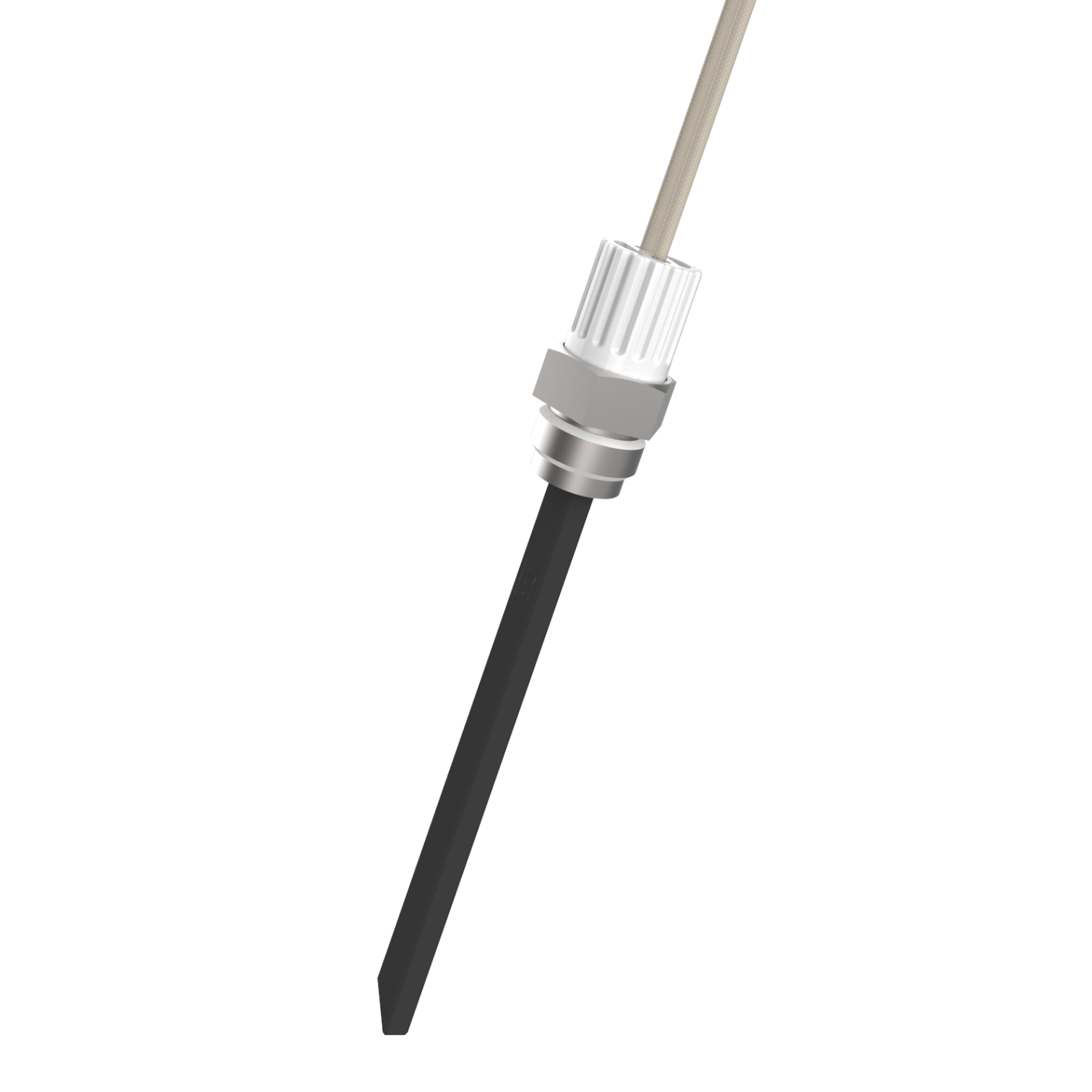

The HF1205 Series Silicon Nitride Igniter is crafted from high-purity Si3N4 material, ensuring exceptional thermal conductivity and chemical resistance. It operates at voltages of 24V, 120V, and 230V, with power ratings of 300W and 400W. The igniter features a compact design with a total length of 127MM and a hot zone length of 60MM, making it ideal for space-constrained applications.
Benefits
This igniter offers unparalleled reliability and performance. Its rapid heating capability reduces wait times, enhancing user experience. The high watt density ensures efficient energy utilization, lowering operational costs. With a lifespan of up to 90,000 hours, it minimizes maintenance and replacement needs, providing long-term value.
Use Cases
The HF1205 Series Igniter is perfect for gas stoves, ovens, biomass boilers, pellet burners, and medical-scientific equipment. It excels in igniting gas or oil, making it a versatile choice for both residential and commercial kitchens. Its oxidation and chemical resistance also make it suitable for harsh industrial environments.
| Name | Silicon Nitride Igniter | |
| Model | HF1205 Series | |
| Material | Silicon Nitride (Si3N4) | |
| H.S. Code | 8516800000 | |
| Color | black | |
| Voltage | 24V 120V 230V | |
| Power | 300W 400W | |
| Flange | Ceramic/Stainless Steel/copper/customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact for confirmation. | |
| Packing | carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications | ||
| Biomass boiler/burner | Pellet burners | |
| Gas burner/stove | Pellet boiler | |
| Ignition of gas or oil | Pellet burner | |
| Pellet Stove | Pellet BBQ grill | |
| Stove fireplace | Medical-Scientific | |
| Wood pellet stove | Heaters-Agricultural | |
| Particle Burning | Spark Igniters | |
| Fuel cells | EV heating | |
| Gas appliances | Glow plug | |
| Petroleum equipment | Cabin heater | |
| Soldering iron | Gas sensor | |
| gas furnaces, | DPF/Catalyst | |
| gas boiler | ||
| Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature: 1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing |
||

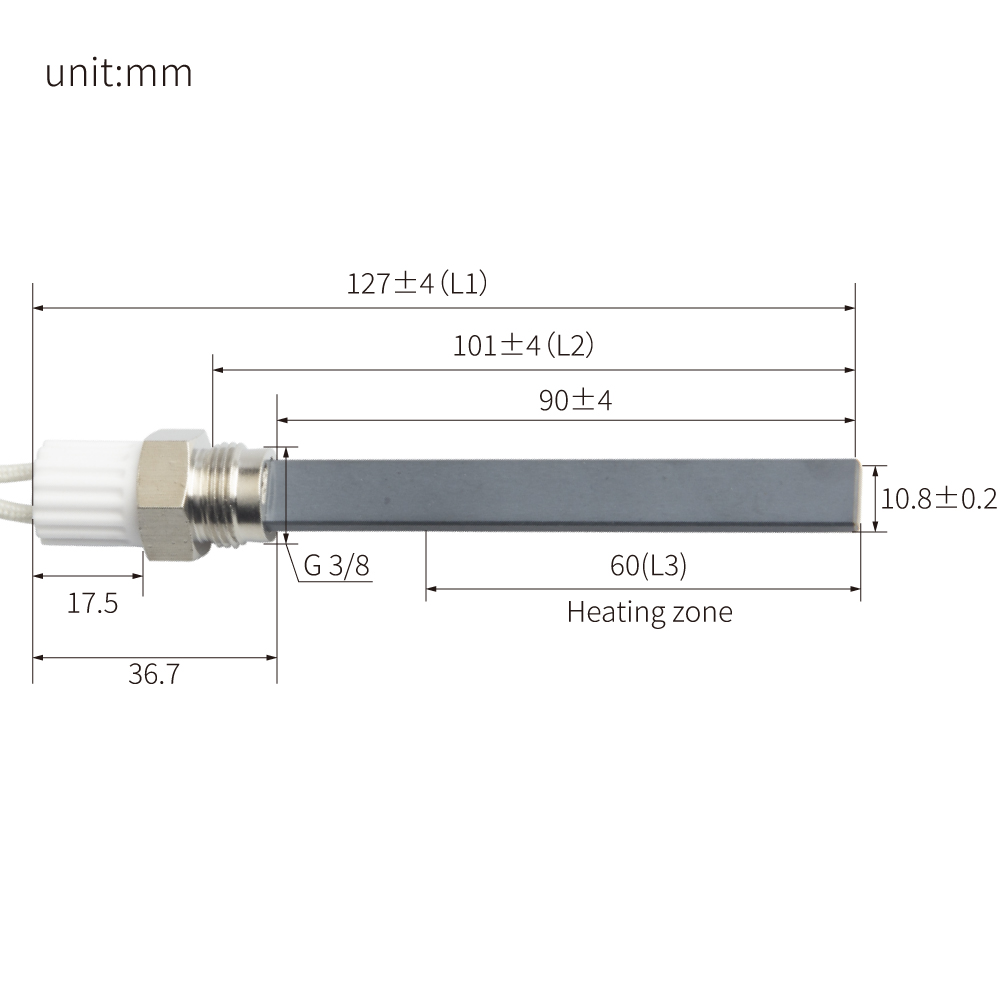

| Model Number | Voltage(V) | Rating power(W) | Width(MM) | Total length Width(MM) | Length under flange(MM) | Length of Hot Zone(MM) | Max.OD.flange(MM) |
| HF1205001 | 230 | 300 | 10.8 | 127 | 101 | 60 | G3/8 |
| HF1205002 | 230 | 400 | 10.8 | 127 | 101 | 60 | G3/8 |
| HF1205003 | 120 | 400 | 10.8 | 127 | 101 | 60 | G3/8 |
| HF1205004 | 24 | 400 | 10.8 | 127 | 101 | 60 | G3/8 |
Why Choose Our Igniter?
Our igniter stands out for its rapid heating, long lifespan, and high thermal efficiency. It's designed to meet the demands of both residential and commercial kitchens, ensuring safe and reliable ignition every time.
Key Features
The HF1205 Series Igniter features silicon nitride construction, customizable flange options, and multiple voltage/power ratings. Its compact size and high watt density make it a top choice for space-constrained applications.
Applications
From gas stoves and ovens to biomass boilers and pellet burners, our igniter is versatile and reliable. It's also suitable for medical-scientific equipment, offering a safe and efficient ignition solution.
