Description
Provide reliable and efficient ignition solutions to enhance the performance and safety of heating systems.
Heating Systems – Reliable Ignition for All Needs
96% Alumina Material
High thermal stability and durability, ensuring long-lasting performance in extreme temperatures.
Multiple Voltage & Power Options
Flexible compatibility with 120V/230V and 260W/300W, meeting diverse application requirements.
Customizable Flange Options
Choose from ceramic, stainless steel, copper, or customized flanges for seamless integration.
Fast Ignition Time
Achieves ignition in just 40-60 seconds, improving efficiency and reducing wait times.
Features

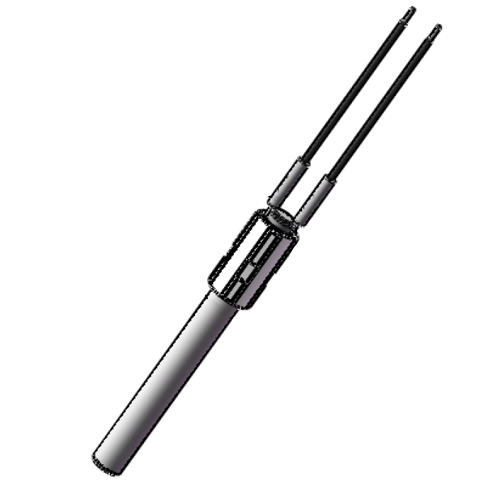

The HF1302 Series Ceramic Igniter is crafted from 96% alumina, offering exceptional thermal stability and resistance to wear. It supports dual voltage (120V/230V) and power (260W/300W) options, making it versatile for various heating systems. The igniter features a customizable flange design, available in ceramic, stainless steel, or copper, to suit specific installation needs. With a rapid ignition time of 40-60 seconds, it ensures quick and reliable operation.
Benefits
By choosing the HF1302 Series Ceramic Igniter, customers benefit from enhanced system reliability and efficiency. The high-quality alumina material ensures longevity, reducing the need for frequent replacements. The multiple voltage and power options provide flexibility, catering to a wide range of heating applications. The customizable flange design simplifies installation, while the fast ignition time minimizes downtime, improving overall productivity.
Use Cases
The HF1302 Series Ceramic Igniter is ideal for igniters for gas stoves, igniters for furnaces, biomass boilers/burners, pellet burners, gas burners/stoves, pellet boilers, and various other heating systems. It is also suitable for medical-scientific equipment, wood pellet stoves, agricultural heaters, fuel cells, EV heating, gas appliances, glow plugs, petroleum equipment, cabin heaters, soldering irons, gas sensors, gas furnaces, and DPF/Catalyst systems. Its versatility and reliability make it a preferred choice for professionals seeking efficient and durable ignition solutions.
| Name | Ceramic Igniter |
| Model | HF1302 Series |
| Material | 96% alumina |
| H.S. Code | 8516800000 |
| Voltage | 120V 230V |
| Power | 260W 300W |
| Flange | Ceramic/Stainless Steel/copper/customized |
| Temp Range | 30~1050 °C/86~1922℉ |
| Ignition Time | 40-60 seconds |
| Samples fee | Please contact for confirmation. |
| Packing | carton |
| Lead time | 5 working days for samples; 12 working days for mass production |
| QC | Strict quality control under SGS, ISO9001 and Intertek. |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. |
| Applications | |
| Biomass boiler/burner | Pellet burners |
| Gas burner/stove | Pellet boiler |
| Ignition of gas or oil | Pellet burner |
| Pellet Stove | Pellet BBQ grill |
| Stove fireplace | Medical-Scientific |
| Wood pellet stove | Heaters-Agricultural |
| Particle Burning | Spark Igniters |
| Fuel cells | EV heating |
| Gas appliances | Glow plug |
| Petroleum equipment | Cabin heater |
| Soldering iron | Gas sensor |
| gas furnaces, | DPF/Catalyst |
| gas boiler | |
| Model Number | Voltage(V) | Rating power(W) | OD.tube(mm) | Total length L1(MM) | Length under flange Width L2(MM) | Length of Hot Zone L3(MM) | Max.OD.flange(MM) |
| HF1302A01-W | 230 | 300 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302B01-W | 230 | 300 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302A01-B | 230 | 300 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302B01-B | 230 | 300 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302A02-W | 120 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302B02-W | 120 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302A02-B | 120 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302B02-B | 120 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302A03-W | 230 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302B03-W | 230 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302A03-B | 230 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
| HF1302B03-B | 230 | 260 | 11.5 | 114 | 79 | 70 | 17.7 |
Why Choose HF1302 Series Ceramic Igniter?
The HF1302 Series Ceramic Igniter stands out for its exceptional durability, thermal stability, and fast ignition time. It supports multiple voltage and power options, making it suitable for a wide range of heating systems. The customizable flange design ensures easy installation, while the high-quality alumina material guarantees long-lasting performance.
How Does It Benefit Users?
Users benefit from improved system reliability and efficiency. The fast ignition time reduces downtime, enhancing productivity. The multiple voltage and power options provide flexibility, catering to diverse application needs. The durable construction minimizes maintenance costs, offering a cost-effective solution.
Where Can It Be Applied?
The HF1302 Series Ceramic Igniter is versatile, suitable for gas stoves, furnaces, biomass boilers, pellet burners, and various other heating systems. Its reliability and efficiency make it a preferred choice for professionals in the heating industry.
