Description
This ignitor provides reliable and efficient ignition, ensuring optimal performance in various heating systems while reducing energy consumption and maintenance costs.
Heating Systems – Reliable Ignition, Enhanced Efficiency
96% Alumina Material
Enhances durability and heat resistance, ensuring long-lasting performance in high-temperature environments.
230V, 250W Power
Delivers consistent and powerful ignition, reducing start-up time and improving overall system efficiency.
Wide Temperature Range (30~1050°C)
Adapts to various heating applications, from low-temperature stoves to high-temperature industrial furnaces.
Customizable Flange Options
Offers flexibility in installation, accommodating different system designs and requirements.
Strict Quality Control (SGS, ISO9001, Intertek)
Ensures product reliability and safety, meeting international standards and customer expectations.
Features

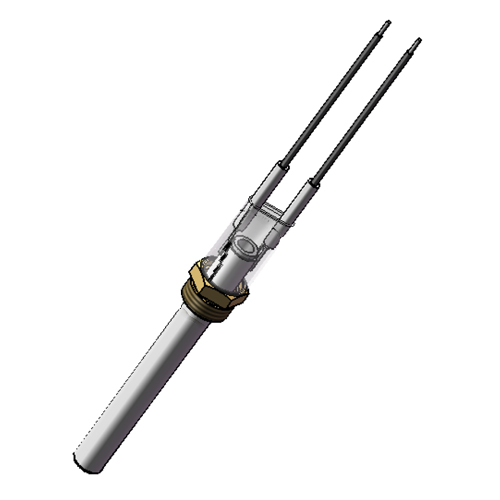

The HF1312 Series Ceramic Ignitor is crafted from 96% alumina, a high-purity ceramic material known for its exceptional heat resistance and durability. It operates at 230V and 250W, providing powerful and consistent ignition. The ignitor features a customizable flange, available in ceramic, stainless steel, copper, or customized options, to suit various installation needs. With a temperature range of 30~1050°C, it is versatile enough for a wide range of heating applications.
Benefits
By choosing the HF1312 Series Ceramic Ignitor, customers benefit from reduced energy consumption due to its efficient ignition process. The durable construction ensures long-lasting performance, minimizing maintenance costs and downtime. The wide temperature range and customizable flange options make it a versatile solution for different heating systems, enhancing overall system efficiency and reliability.
Use Cases
The HF1312 Series Ceramic Ignitor is ideal for biomass boilers/burners, pellet burners, gas burners/stoves, pellet boilers, and ignition of gas or oil. It is also suitable for pellet stoves, pellet BBQ grills, stove fireplaces, medical-scientific equipment, wood pellet stoves, heaters-agricultural systems, particle burning applications, spark igniters, fuel cells, EV heating, gas appliances, glow plugs, petroleum equipment, cabin heaters, soldering irons, gas sensors, gas furnaces, DPF/Catalyst systems, and gas boilers. Its versatility and reliability make it a preferred choice for various industries and heating applications.
| Name | Ceramic Igniter |
| Model | HF1312 Series |
| Material | 96% alumina |
| H.S. Code | 8516800000 |
| Voltage | 230V |
| Power | 250W |
| Flange | Ceramic/Stainless Steel/copper/customized |
| Temp Range | 30~1050 °C/86~1922℉ |
| Ignition Time | 40-60 seconds |
| Samples fee | Please contact for confirmation. |
| Packing | carton |
| Lead time | 5 working days for samples; 12 working days for mass production |
| QC | Strict quality control under SGS, ISO9001 and Intertek. |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. |
| Applications | |
| Biomass boiler/burner | Pellet burners |
| Gas burner/stove | Pellet boiler |
| Ignition of gas or oil | Pellet burner |
| Pellet Stove | Pellet BBQ grill |
| Stove fireplace | Medical-Scientific |
| Wood pellet stove | Heaters-Agricultural |
| Particle Burning | Spark Igniters |
| Fuel cells | EV heating |
| Gas appliances | Glow plug |
| Petroleum equipment | Cabin heater |
| Soldering iron | Gas sensor |
| gas furnaces, | DPF/Catalyst |
| gas boiler | |
| Model Number | Voltage(V) | Rating power(W) | OD.tube(mm) | Total length L1(MM) | Length under flange Width L2(MM) | Length of Hot Zone L3(MM) | Max.OD.flange(MM) |
| HF1312A01-W | 230 | 250 | 10.5 | 100 | 81 | 70 | G3/8 |
| HF1312B01-W | 230 | 250 | 10.5 | 100 | 81 | 70 | G3/8 |
| HF1312A01-B | 230 | 250 | 10.5 | 100 | 81 | 70 | G3/8 |
| HF1312B01-B | 230 | 250 | 10.5 | 100 | 81 | 70 | G3/8 |
Why Choose the HF1312 Series Ceramic Ignitor?
The HF1312 Series Ceramic Ignitor offers reliable and efficient ignition for a wide range of heating applications. Its high-purity ceramic material ensures durability and heat resistance, while its customizable flange options provide installation flexibility. With strict quality control and international certifications, it meets the highest standards of reliability and safety.
How Does It Enhance System Efficiency?
The ignitor's powerful and consistent ignition reduces start-up time and energy consumption, improving overall system efficiency. Its wide temperature range allows it to adapt to various heating needs, from low-temperature stoves to high-temperature industrial furnaces.
What Makes It Stand Out from Competitors?
The HF1312 Series Ceramic Ignitor stands out with its customizable flange options, strict quality control, and international certifications. Its versatility and reliability make it a preferred choice for customers seeking a high-performance ignition solution.
