Description
Providing a reliable, high-performance heating solution for SOFC hydrogen energy systems, ensuring efficient and safe operation.
Hydrogen Energy Users – Optimize Efficiency with Si3N4 Heater
Rapid Heating
Heats up to 1000°C in just 10 seconds, significantly reducing warm-up time.
High Temperature Range
Operates efficiently between 1100°C to 1300°C, suitable for demanding applications.
Long Working Life
Expected lifespan of up to 10 years or 90,000 hours, minimizing replacement costs.
High Insulation
Ensures safe operation by preventing electrical leakage and maintaining stability.
Features

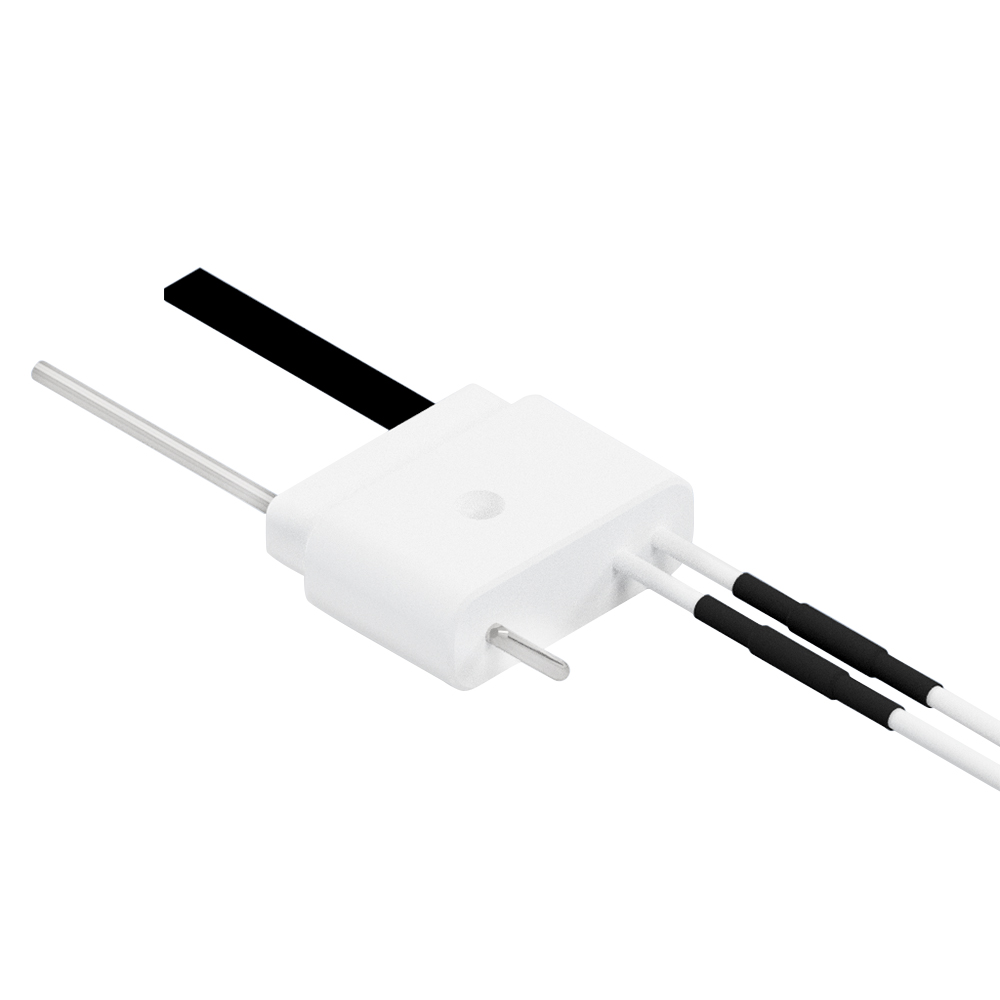

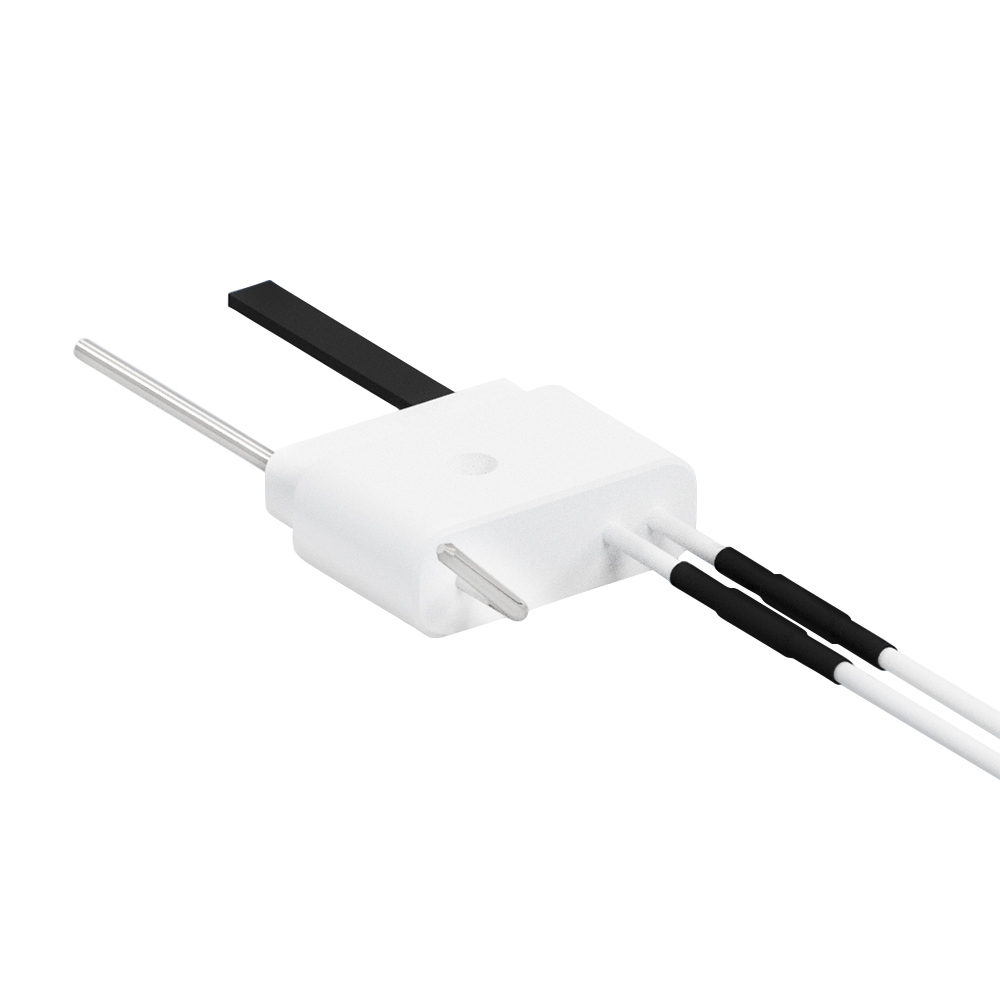

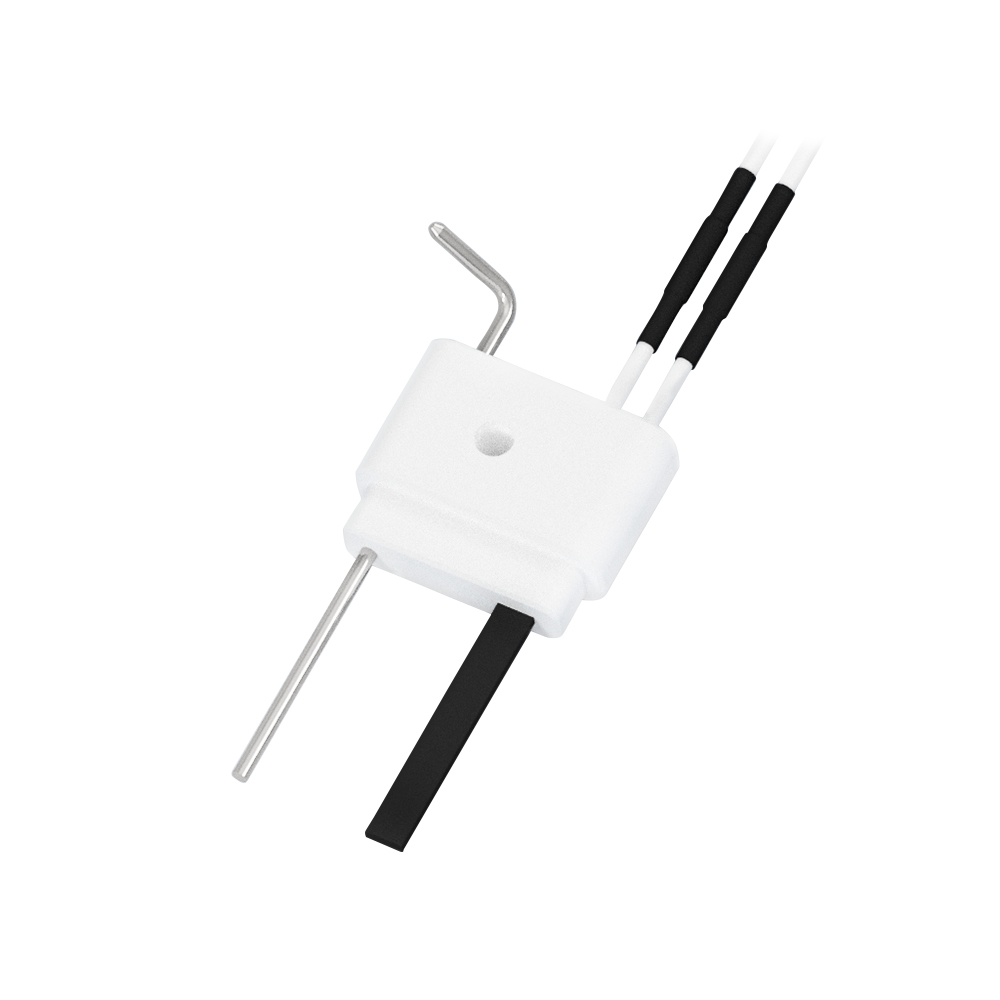

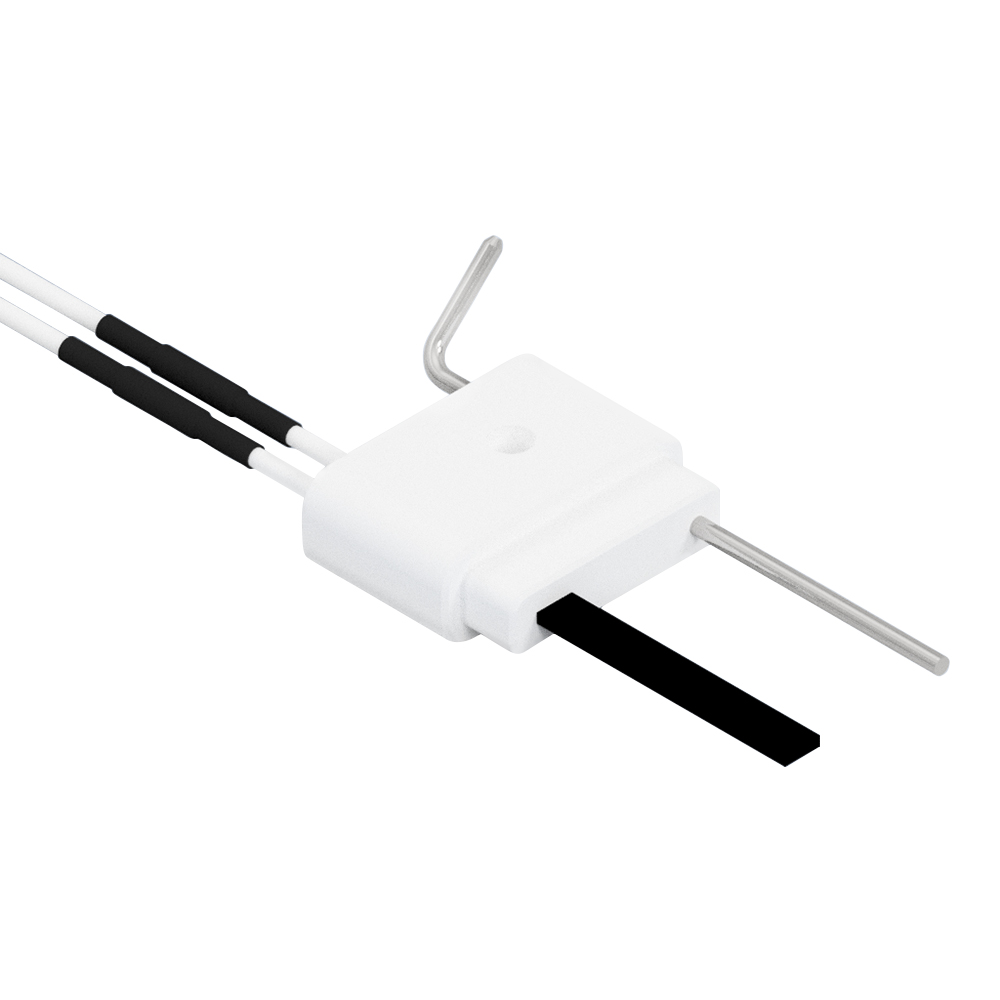

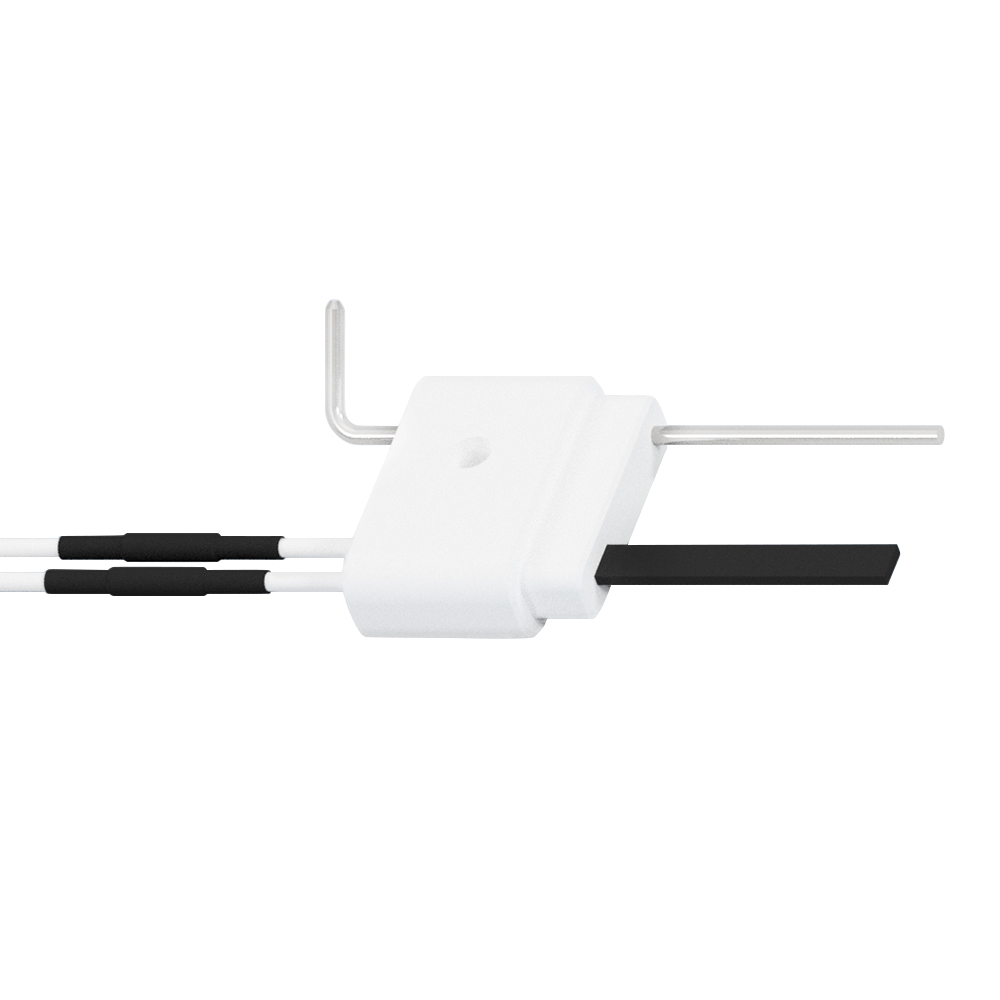

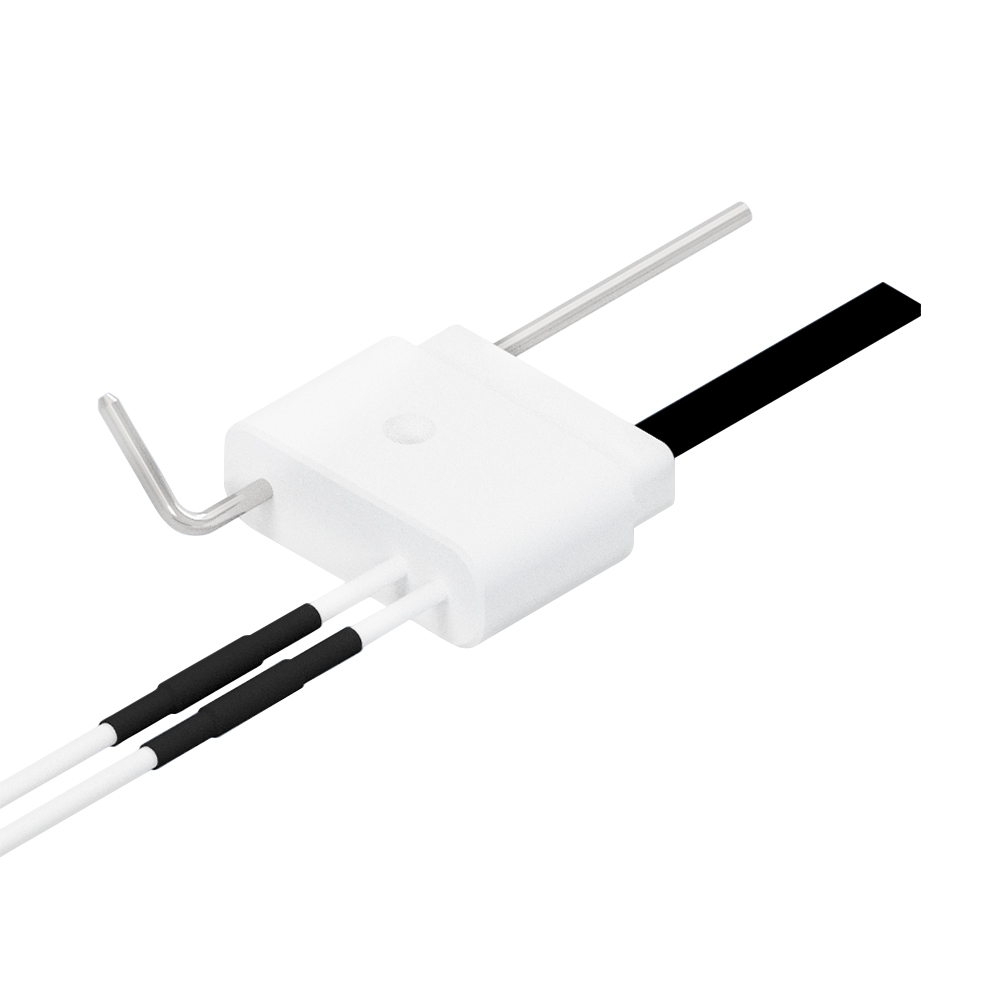

The HFHS-0801 Si3N4 Heater is crafted from high-quality Silicon Nitride (Si3N4) material, known for its exceptional thermal stability and resistance to oxidation and chemicals. It operates at a voltage range of 90V-110V, with customizable power from 35W-60W. The heater features a ceramic or stainless steel flange, adaptable to various installation requirements. Its temperature range spans from 1100°C to 1300°C, making it ideal for high-temperature applications.
Benefits
By choosing the HFHS-0801 Si3N4 Heater, customers benefit from rapid heating capabilities, reducing downtime and increasing productivity. The high temperature range ensures compatibility with a wide array of industrial processes, while the long working life guarantees cost-effectiveness over time. High insulation properties enhance safety, protecting both equipment and personnel. Additionally, the heater’s resistance to oxidation and chemicals extends its durability in harsh environments.
Use Cases
This Si3N4 Heater is perfectly suited for gas furnaces, burners, and kilns in the hydrogen energy sector. It finds applications in gas or hydrogen water heaters, boilers, and other heating equipment. Specifically designed for SOFC and PEFC Fuel Cell MCHP burner and reformer units, it facilitates gas reforming to H2 and H2 post-gas combustion. The heater is also valuable in laboratory equipment, biomass boiler secondary combustion, hydrogen combustion processes, and flame detection in H2 combustion burners.
| Name | HFHS 0801 Si3N4 Heater For SOFC Hydrogen Energy | |
| Model | HFHS 0801 Up to 1200-1350℃ | |
| Material | Silicon Nitride (Si3N4) | |
| Voltage | 90V-110V | |
| Power | 35W-60W Customized | |
| Flange | Ceramic/Stainless Steel/Customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact us for confirmation. | |
| Packing | Carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications
Gas furnace,burner,kiln |
||
| ·Rapid heating: Heating faster. up to 1000°c in 10 seconds ·Range of temperature:1100~1300 °C/2012~2372℉ ·Small size / High watt density: High-watt density discharge allow high thermal efficiency. ·Long working life:10 years possible,90,000 hours ·High insulation ·Direct water and kerosene heating ·Vacuum environment ·Oxidation and chemical resistance |
||
Why Choose the HFHS-0801 Si3N4 Heater?
The HFHS-0801 Si3N4 Heater stands out for its rapid heating, high temperature range, and long working life. It's designed to meet the demanding needs of hydrogen energy applications, ensuring efficient and safe operation.
How Does It Benefit My Business?
By reducing warm-up time and increasing productivity, the HFHS-0801 Si3N4 Heater helps lower operational costs. Its durability and resistance to harsh conditions minimize maintenance and replacement expenses, contributing to long-term savings.
What Makes It Different from Competitors?
Unlike traditional heaters, the HFHS-0801 Si3N4 Heater offers superior thermal stability, high insulation, and customizable power options. Its compatibility with various flanges and installation requirements makes it a versatile choice for diverse industrial settings.
