Description
Delivering high-performance ignition solutions for industrial and residential heating systems, ensuring reliability and efficiency.
Industries – Boost Ignition Efficiency with Silicon Nitride Rods
Rapid Heating
Achieves up to 1000°C in just 10 seconds, enhancing operational efficiency.
High-Temperature Resistance
Operates effectively within a temperature range of 1100~1300°C, ensuring durability.
Long Lifespan
Potential lifespan of up to 10 years or 90,000 hours, reducing replacement costs.
Chemical Resistance
Resistant to oxidation and chemicals, suitable for harsh environments.
Features

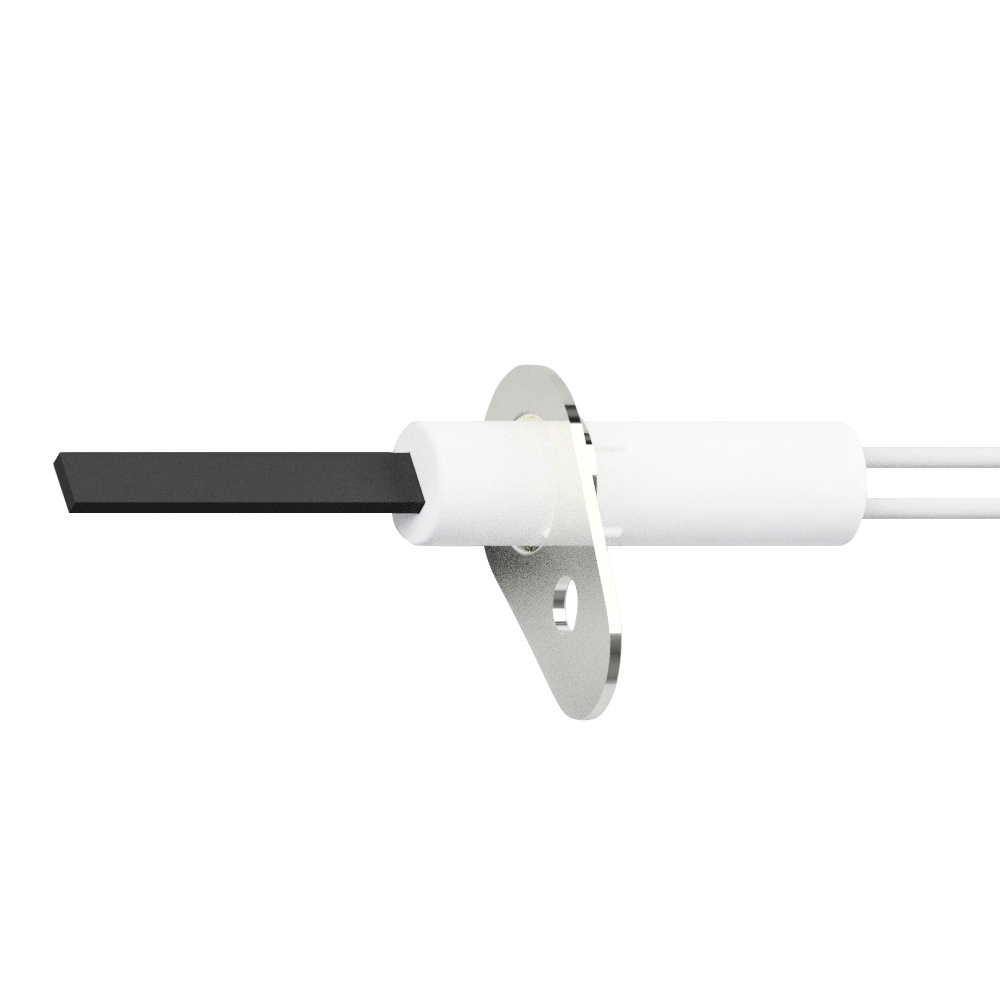

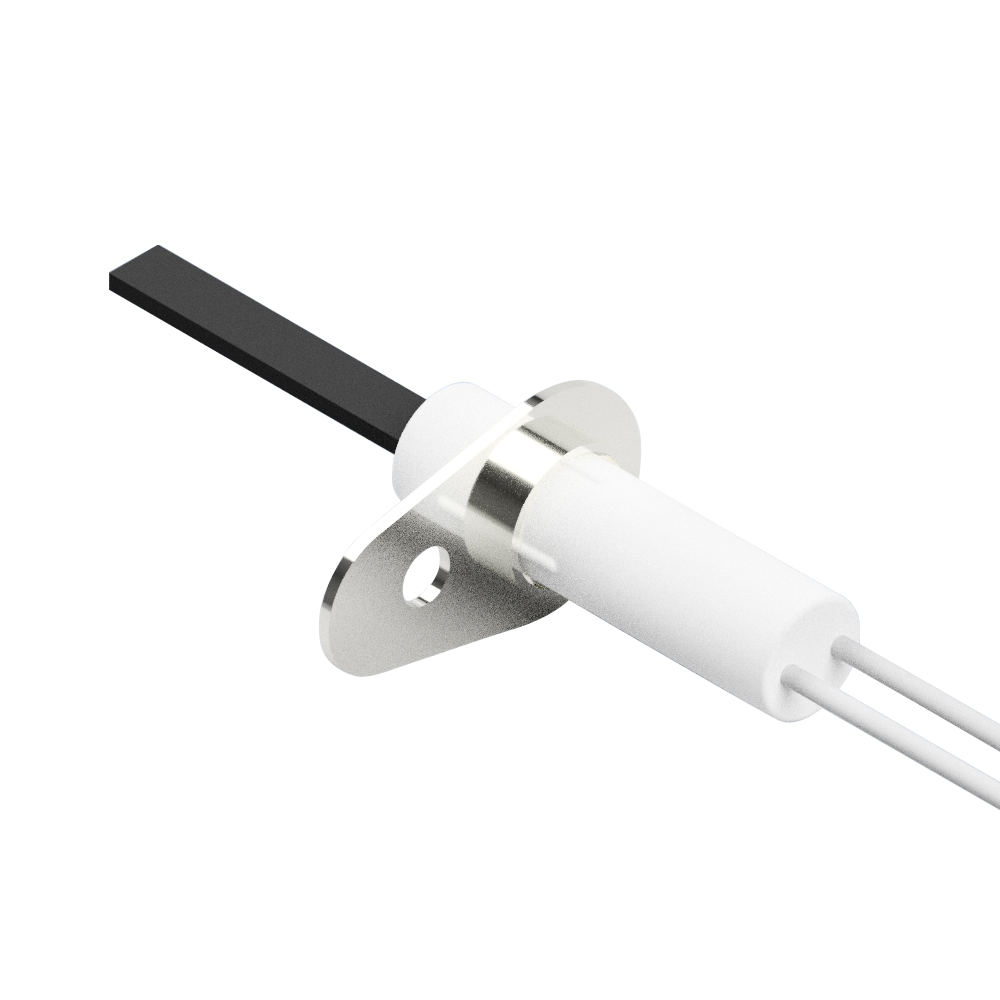

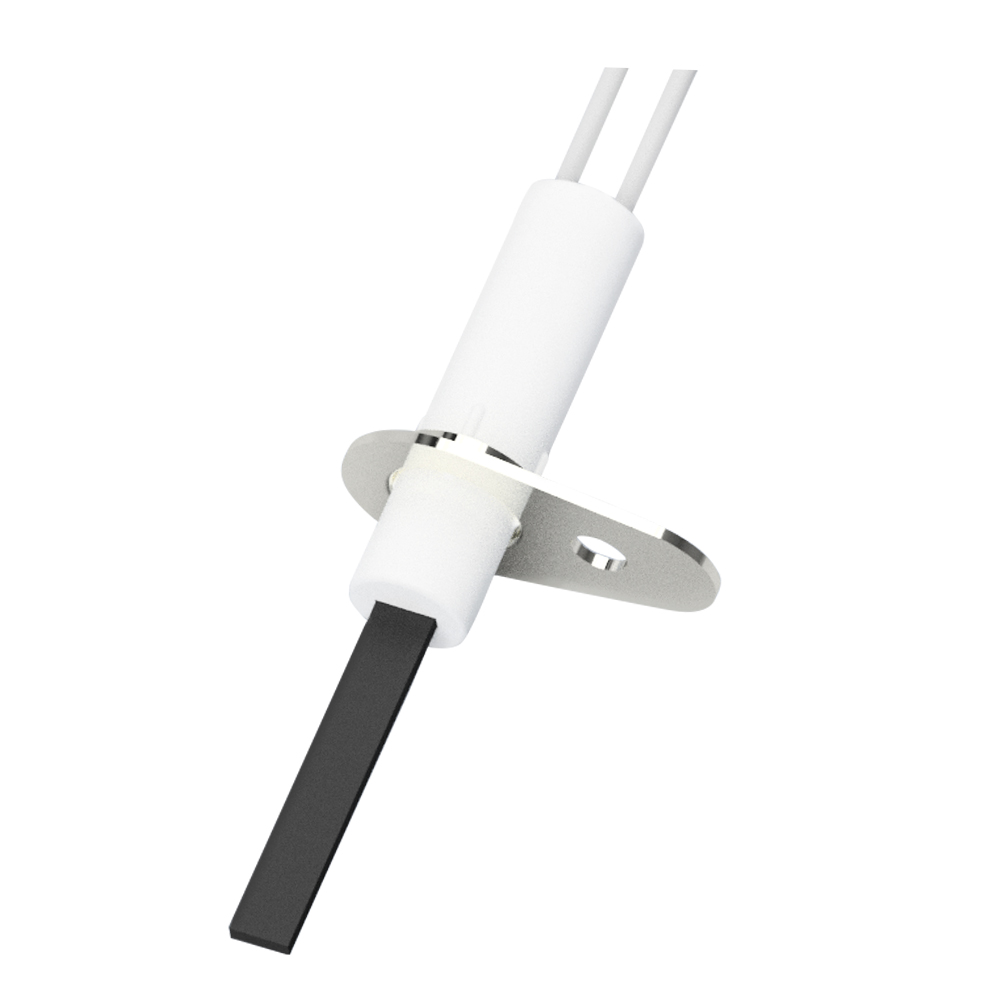

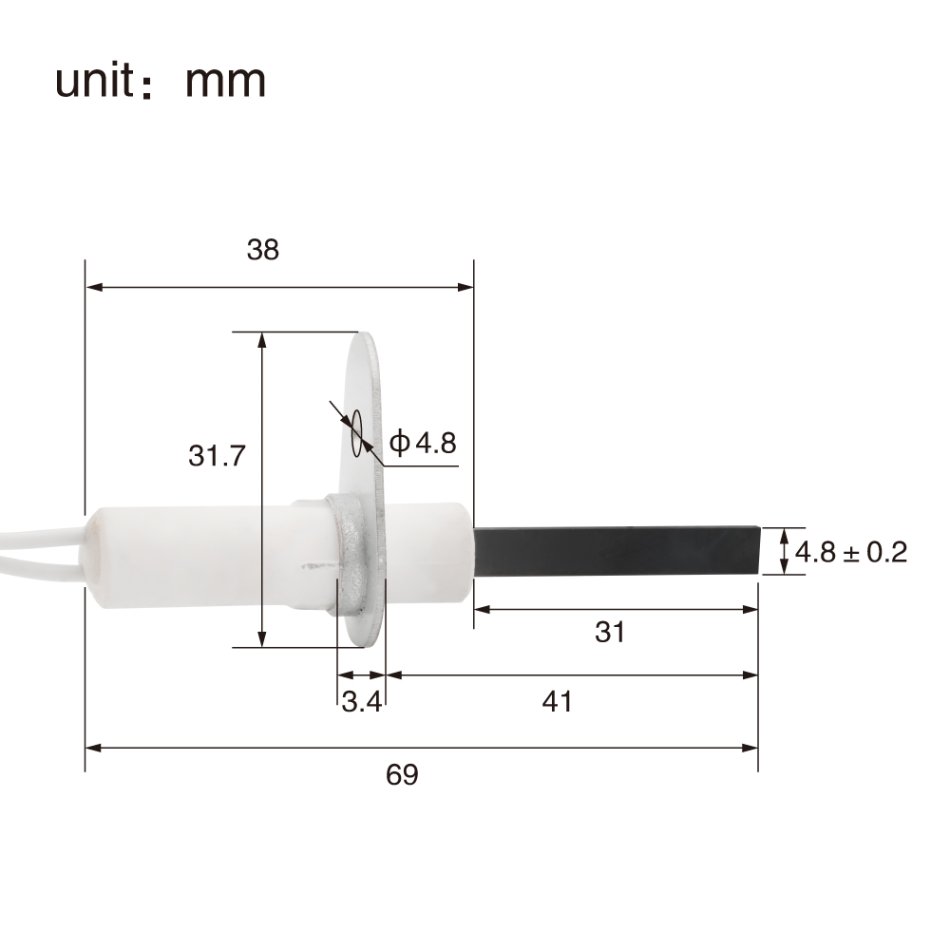

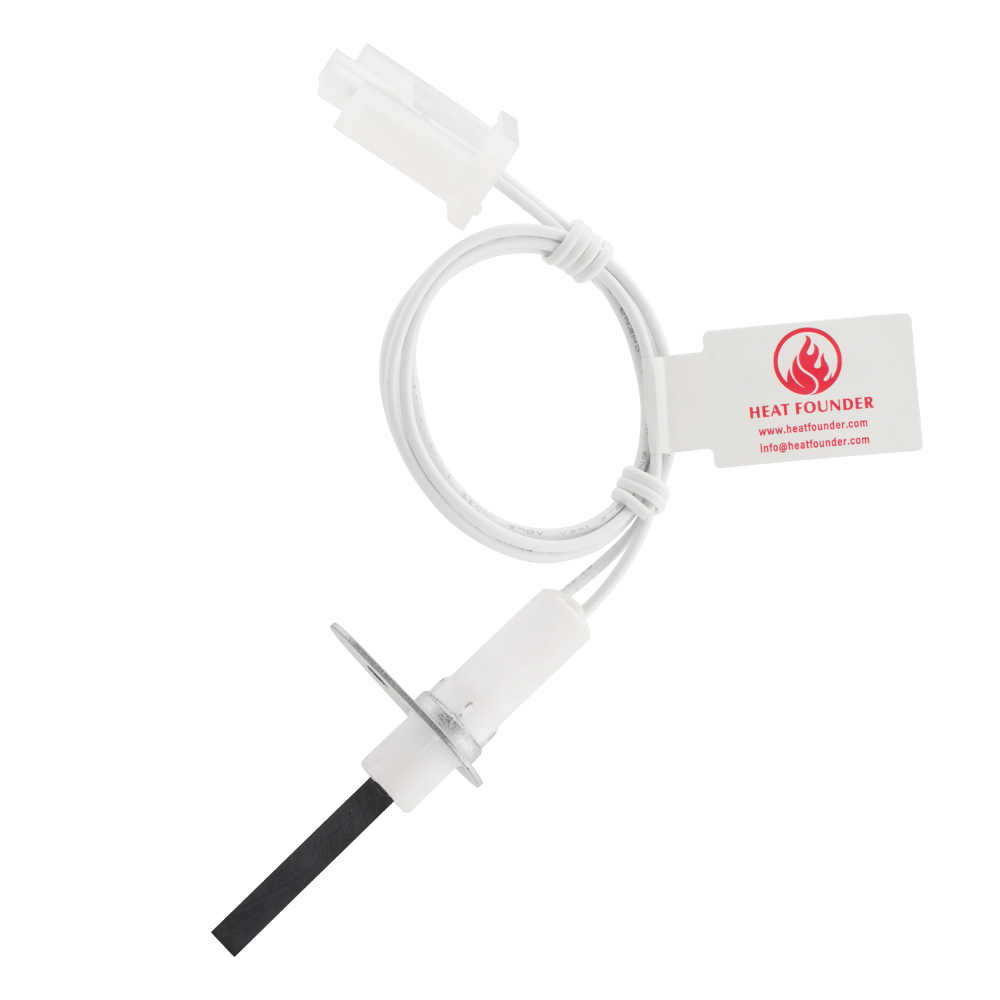

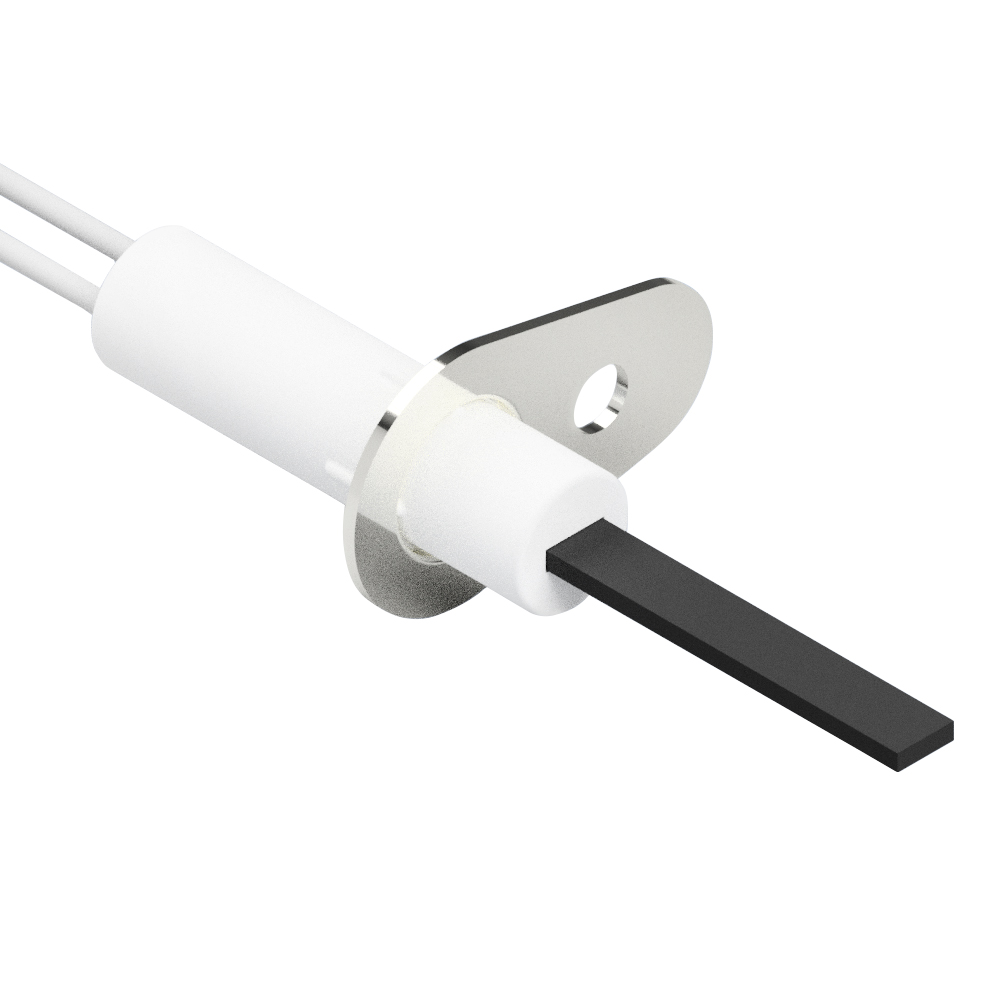

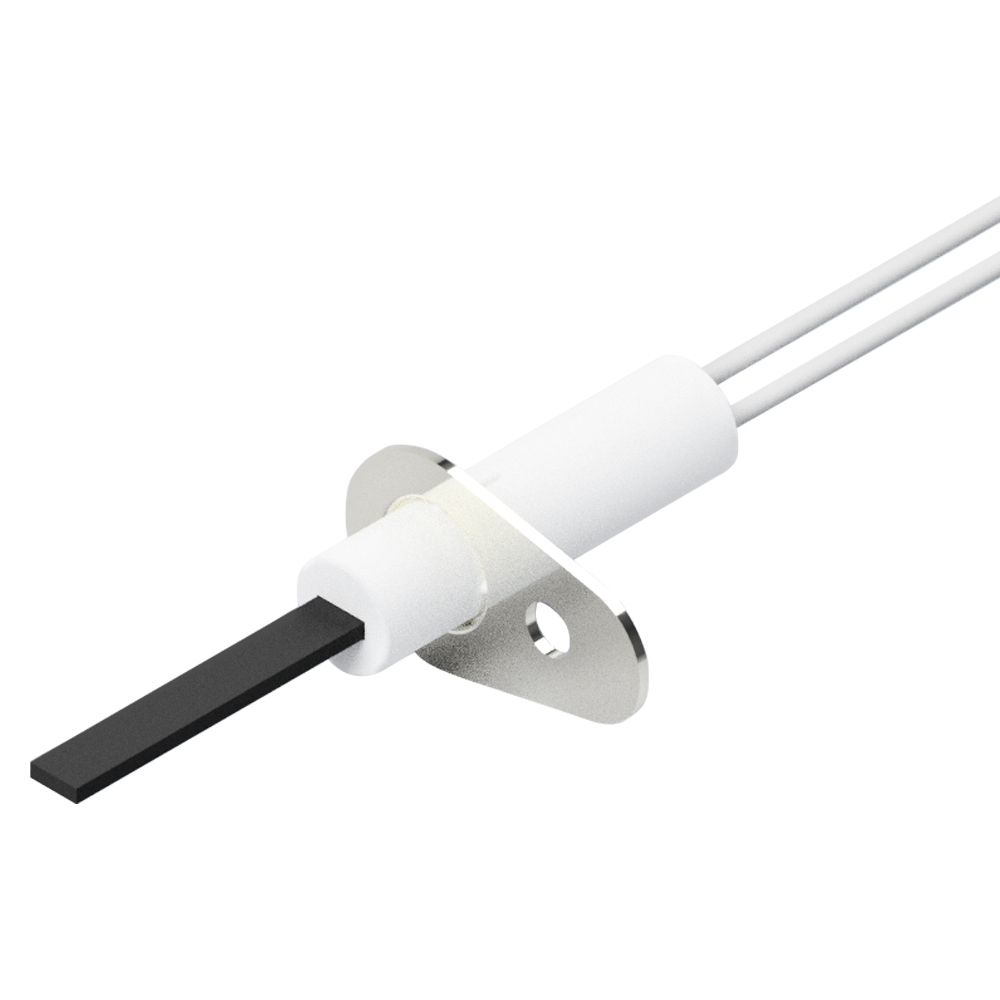

The HF0004572 Silicon Nitride Ignition Rod is crafted from high-quality Silicon Nitride (Si3N4), ensuring exceptional heat resistance and durability. With a voltage rating of 95V and power output of 50-55W, it provides reliable ignition for various heating systems. The rod features a customizable flange option, including ceramic and stainless steel, to suit different installation requirements.
Benefits
By choosing the HF0004572 Silicon Nitride Ignition Rod, customers benefit from rapid heating capabilities, reducing downtime and improving operational efficiency. Its high-temperature resistance ensures consistent performance in demanding environments, while the long lifespan minimizes maintenance and replacement costs. Additionally, the rod’s chemical resistance makes it suitable for use in corrosive settings, enhancing its versatility and reliability.
Use Cases
This ignition rod is ideal for a wide range of applications, including natural gas stoves, heating equipment such as gas boilers, and liquefied petroleum gas systems. It is also suitable for gas furnaces, burners, kilns, and hydrogen water heaters. In the realm of fuel cell technology, it finds use in SOFC and PEFC Fuel Cell MCHP burner and reformer units, facilitating gas reforming to H2 and H2 post-gas combustion. Laboratory equipment, biomass boiler secondary combustion, and hydrogen combustion systems also benefit from its reliable ignition capabilities.
| Name | HF0004572 Si3N4 Heater For SOFC Hydrogen Energy | |
| Model | HF0004572 Up to 1200-1350℃ | |
| Material | Silicon Nitride (Si3N4) | |
| Voltage | 95V | |
| Power | 50-55W | |
| Flange | Ceramic/Stainless Steel/Customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact us for confirmation. | |
| Packing | Carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications
For example, natural gas stoves and heating equipment: gas boilers, natural gas, liquefied petroleum gas Gas furnace,burner,kiln |
||
| ·Rapid heating: Heating faster. up to 1000°c in 10 seconds ·Range of temperature:1100~1300 °C/2012~2372℉ ·Small size / High watt density: High-watt density discharge allow high thermal efficiency. ·Long working life:10 years possible,90,000 hours ·High insulation ·Direct water and kerosene heating ·Vacuum environment ·Oxidation and chemical resistance |
||
Why Choose Silicon Nitride Ignition Rod?
The Silicon Nitride Ignition Rod offers rapid heating, high-temperature resistance, and a long lifespan, making it ideal for industrial and residential heating systems. Its chemical resistance ensures durability in harsh environments.
How Does It Enhance Efficiency?
By achieving up to 1000°C in just 10 seconds, the ignition rod significantly reduces downtime and improves operational efficiency, leading to cost savings and increased productivity.
What Applications Is It Suitable For?
This ignition rod is versatile, suitable for natural gas stoves, heating equipment, gas furnaces, burners, kilns, and hydrogen energy systems, including SOFC and PEFC Fuel Cell applications.
